• Model NO.：SS3250
• Power Source：AC220V or Customized
• Weight：0-10Kg
• Installation：Direct Connected
• Customized：Non-Customized
• Best for High Frequency Transformer Test：Test All Parameters of Transformer on One Time
• Test Frequency：20Hz-200kHz,1MHz, 0.02% Accuracy.
• Power：90 ~ 125V AC or 190~250V AC 48Hz~62Hz
• Power Consuming：Max.140W
• Basic Accuracy：0.1%
• Transport Package：Standard
• Specification：SS3250
• Trademark：SanShine
• Origin：China
• HS Code：9030841000
• Production Capacity：6000

Overview Detailed Photos



Product Description

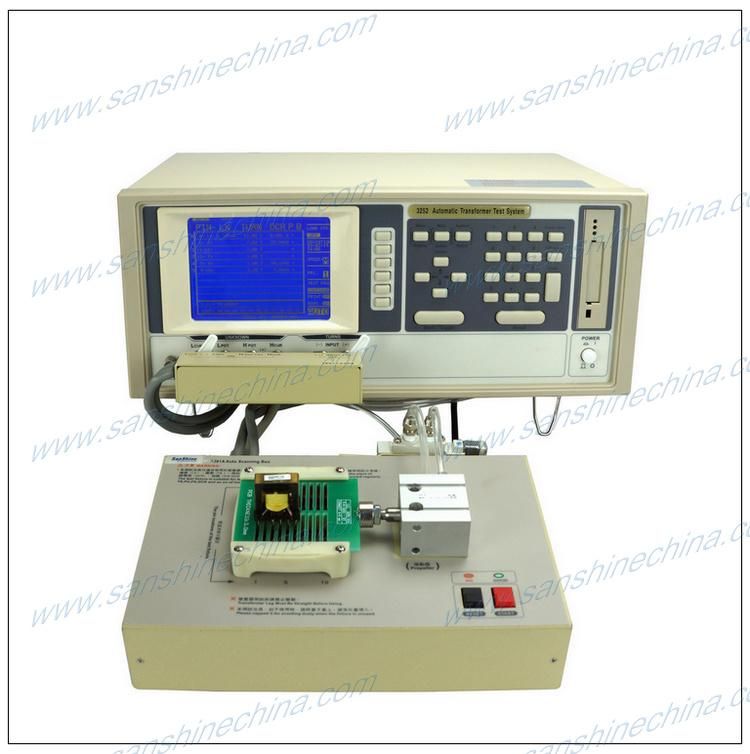

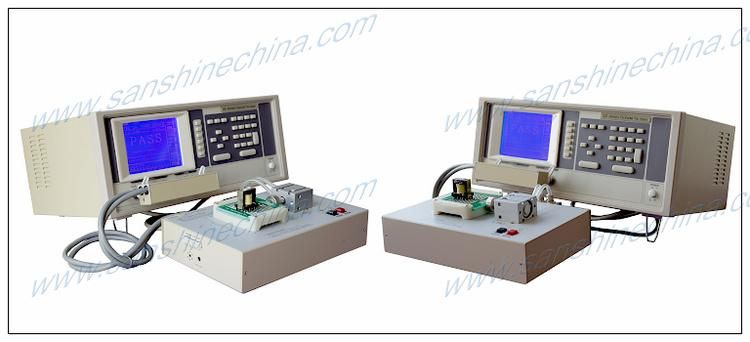

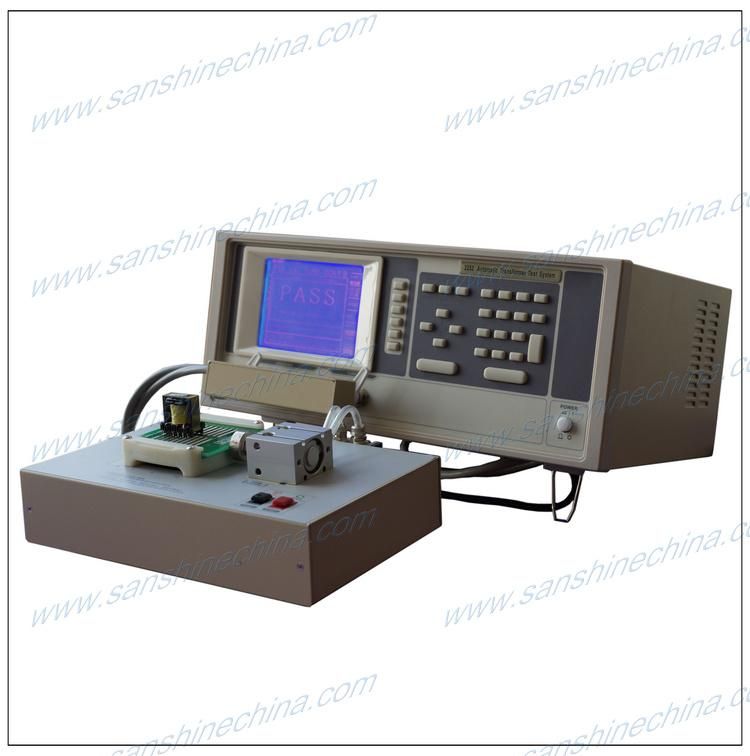

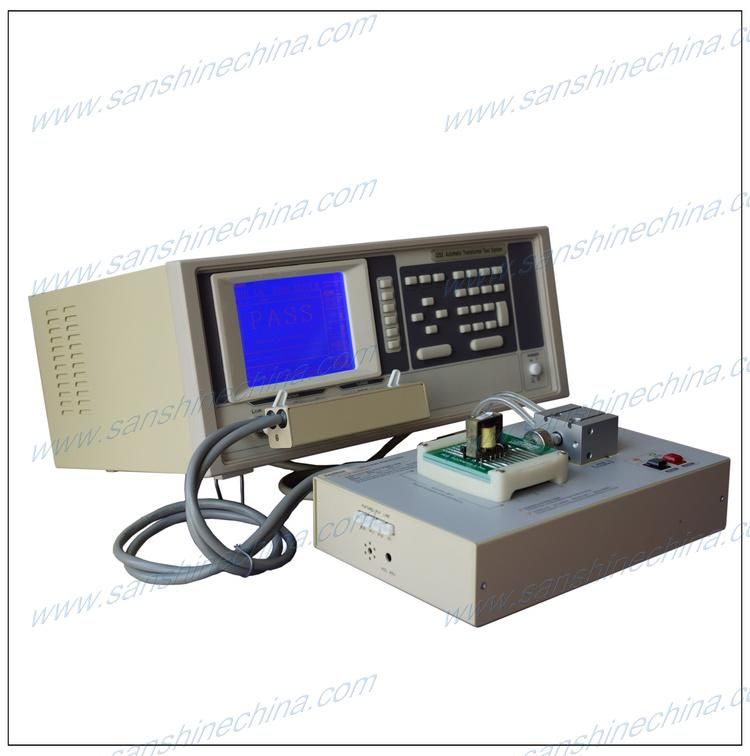

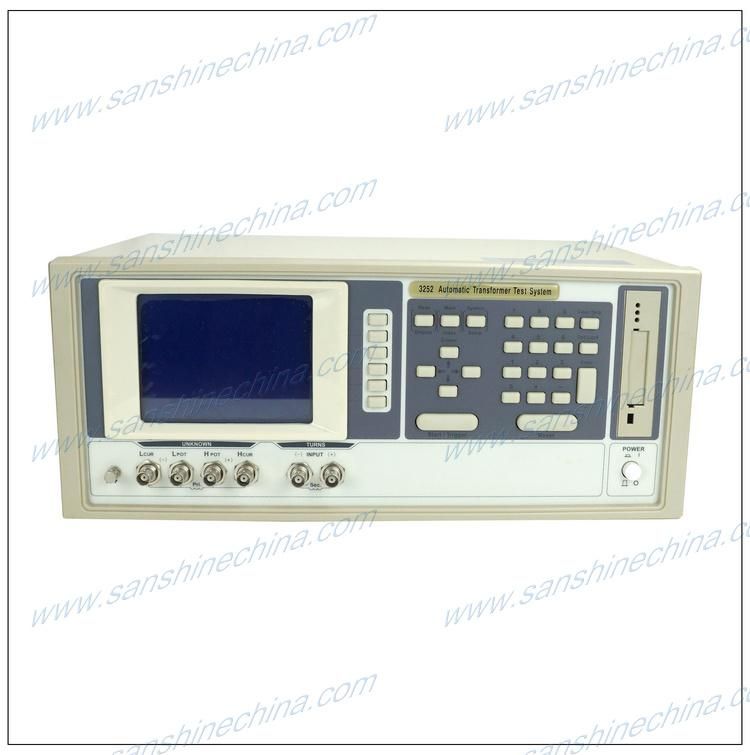

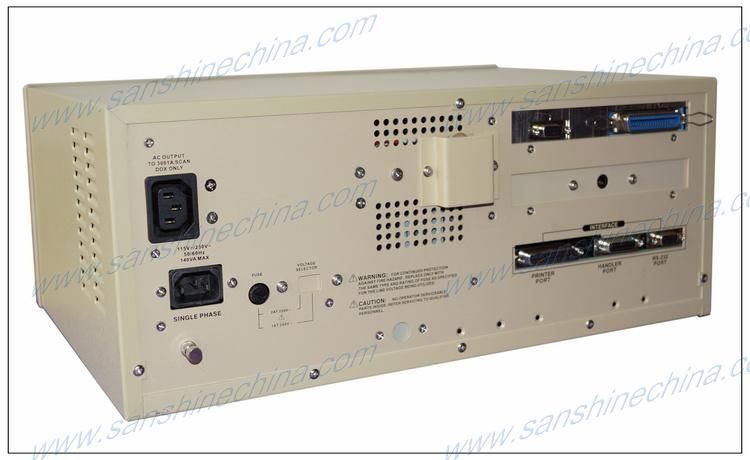

The 3250/3252/3302 transformer test instrument is a precision test system, designed for transformer production line or incoming/outgoing inspection in quality control process, with high stability and high reliability. With the enhanced capability in turn ratio measurement, they can solve the measuring problems of low coupling coefficient, transformer's turn ratio and turn number with more precise measurement. In addition to transformer scanning test function, the 3302/3252 have LCR Meter function. Operator-friendly and value-added, they can help you reduce production cost greatly.

Feature:
1. Test frequency: 20Hz-200KHz/1MHz, 0.02% accuracy.
2. Basic accuracy: 0.1%
3. Output impedance modes, measurement results are compatible with other well-known LCR meters.
4. Enhanced Turn Ratio measurement accuracy for low permeability core
5. Fast Inductance/Turn Ratio measurement speed up to 80 meas. /sec
6. Fast DCR measurement speed up to 50 meas. /sec
7. Bias current source directly control capability (3252/3302)
8. 320x240 DOT-matrix LCD display
9. Support versatile standard and custom-design test jigs
10. Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements
11. Build-in comparator; 10 bin sorting with counter capability (3252/3302)
12. 2M SRAM memory card, for setup back-up between units
13. Standard RS-232, HANDLER, PRINTER interface
14. 50 internal instrument setups for store/recall capability

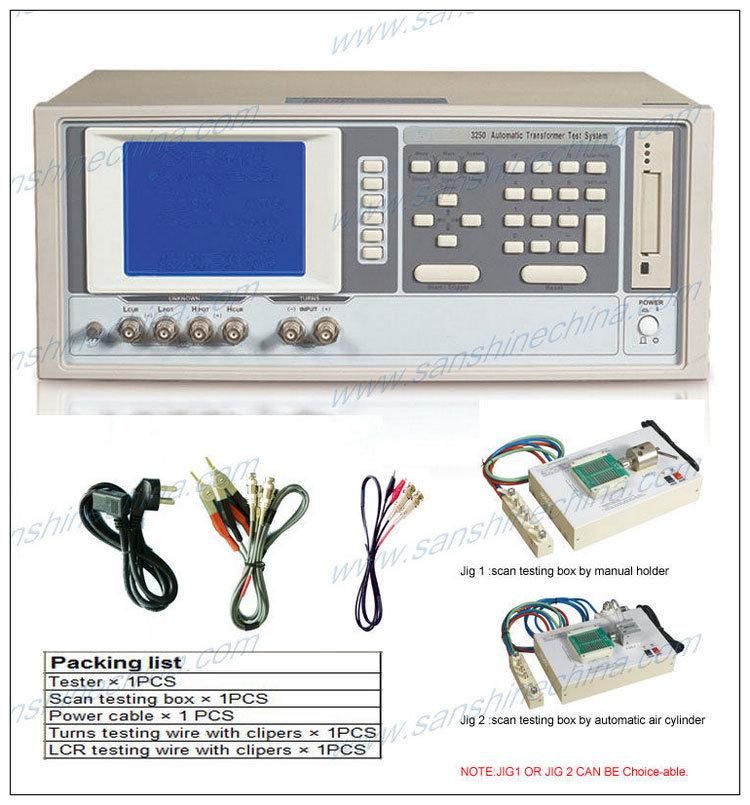

Order items:
A. 3250/3252/3302
B. 3001A
C. Universal fixture
D. Custom-made fixture (optional)
E. Memory card (optional)3250
 3252/3302
 Main functions
 transformer Auto. analyzer
 transformer Auto. analyzer + LCR meter
 Analyse parameter
 Transformer Auto. Meas.
 Turn ratio , Phase ,Turn ,L ,Q, L.K ,Balance ,ACR ,Cp ,DCR ,Pin short.
 LCR Meas.
 General L ,C ,R ,DCR
 L ,C ,R , 1Z1 ,Y ,DCR ,Q ,D ,R ,X ,  θ
 Meas. Signal
 Meas. Level
 Turn
 10mV~10V,±10% ,10mV/Step
 Other
 10mV~2V,±10% ,10mV/Step
 Meas. Frequency
 Turn
 3250 ,3252 :1KHZ ~ 200KHZ ,±0.02%
 3302 :1KHZ~1MHZ ±0.02% ,Min. display :0.01HZ
 other
 3250 ,3252 : 0HZ ~ 200KHZ ,±0.02%
 3302 : 20HZ~1MHZ ±0.02% , Min. display : 0.01HZ
 Out impendance
 Turn
 10Ω , Meas. level≤2V
 50Ω , Meas. level > 2V
 Other
 Constant=OFF : according to resistance value range to be
 Constant=320X : 100Ω±0.5%
 Constant=107X : 25Ω±0.5%
 Constant=106X : 50Ω   100mA±0.5%(setup 1V )
 inductance load <10Ω , 10Ω±10% , impedance≥10Ω
 Meas. Display range
 L , L.K
 0.00001uH ~ 9999.99H
 C
 0.00001pF ~ 999.999mF
 Q, D
 0.00001 ~ 99999
 Z, X, R
 0.00001Ω ~ 99.9999MΩ
 Y
 0.01nS ~ 99.9999S
 θ
 -90.00 ~ +90.00
 DCR
 0.01mΩ ~ 99.9999MΩ
 Turn
 0.01 ~ 99999.99T(S windings voltage < 100Vrms)
 Pin - Short
 11 windings , pin and pin
 Base accuracy
 L , L.K , C , Z , X , Y , R , DCR
 0.1% ( AC parameter 1KHZ )
 Q , D
 0.0005 ( 1KHZ )
 θ
 0.03° ( 1KHZ )
 Turn
 0.5% ( 1KHZ )
 Meas. speed ( fast )
 L , L.K , C , Z , X , Y , R ,Q , D , θ
 80Meas./S
 DCR
 50Meas./S
 Turn
 10Meas./S
 Judgement way
 Transformer Auto. Meas.
 the judgement of all parameters of NG or good which be output by ordered processor.
 LCR Meas.
 parameters be displayed.
 10 levels sorting and total No. be output by ordered processor. The judgement of parameter of good or NG be output by standard processor.
 Displayer revising function
 320*240 points LCD displayer
 Open / Short , load revising
 Memory
 50 groups setup , can be extended by memory card.
 Equivalent circuit model
 series , parallel
 Trigger
 inner , manual , external
 Common Spec.
 Environment
 10degree centigrade ~ 40degree centigrade ,10% ~ 90%RH
 Power consuming
 Max.140W
 Power
 90 ~ 125V AC  or 190~250V AC   48HZ~62HZ
 Weight
 ≈ 8.5KG
 Meas. ( W×H×L )
 430×180× 320mm
