• Model NO.：HZCR-2000
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Model Number：Hzcr300
• Test Report：Yes
• Work Temperature：-10ºC~55ºC
• MOQ：1
• After Sale Service：Yes
• Certificate：ISO CE
• Resistance Range：0.01-1200Ω
• Current Range：0.00mA-20.0A
• Dimensions：285*85*56(mm)
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030332000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZCR-2000 Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Model Number Hzcr300 Test Report Yes Work Temperature -10ºC~55ºC MOQ 1 After Sale Service Yes Certificate ISO CE Resistance Range 0.01-1200Ω Current Range 0.00mA-20.0A Dimensions 285*85*56(mm) Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030332000 Production Capacity 100 PCS/Month

Product Description

Best Price Ground Measuring Earth Resistance Clamp with Digital Effective
 I.Parameters Sheet:


Power Supply	6VDC (4 *5# alkaline battery)
Working Temperature	-10°C to 55°C
Relative Humidity	10% to 90%
LCD	4-digital LCD, 47* 28.5mm in length
Span of Jaw	28mm
Net Weight	1160g
Dimension(mm)	285x85x56mm
Protection Level	Double insulation
Structural Feature	In the jaw way
Shift	Automatic
External Magnetic Field	< 40A/m
External Electric Field	< 1V/m
Measuring Time	One second
Resistance Measurement Frequency	>1KHz
Maximum Resistance Measurement Resolution	0.001 O
Range of Resistance Measurement	0.01~200 O
Accessories	Carry Case(1),Strap(1), 5# Alkaline Battery

II.Characteristic:

1. Wider range: 0.01Ω-1200Ω
2. Stored data: 99 groups.
3. Resistance Resolution: 0.01Ω
4. Size of Jaw: 65*32(mm) / ø32(mm)
5. Sound and light alarm, "beep - beep - beep -" alarm sound.
6. Breakthrough in self-test the boot a long time to wait, start immediately into the test.
7. Breakthrough relay self-test mode, using the most advanced processing algorithms and digital       integration technology, a fully intelligent.
8. Break the old product to heavy issues, more in line with characteristics of handheld devices.
9. The new design, panel 6 button operation, the performance through.
10. Lower power consumption: Maximum operating current not exceeding 50mA.

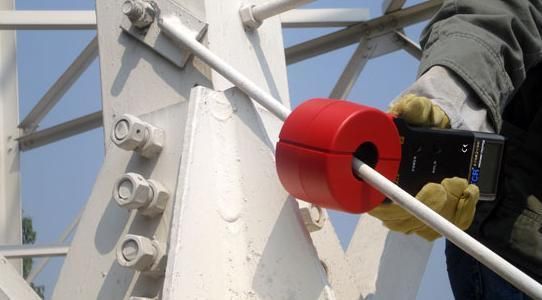

III.Photos

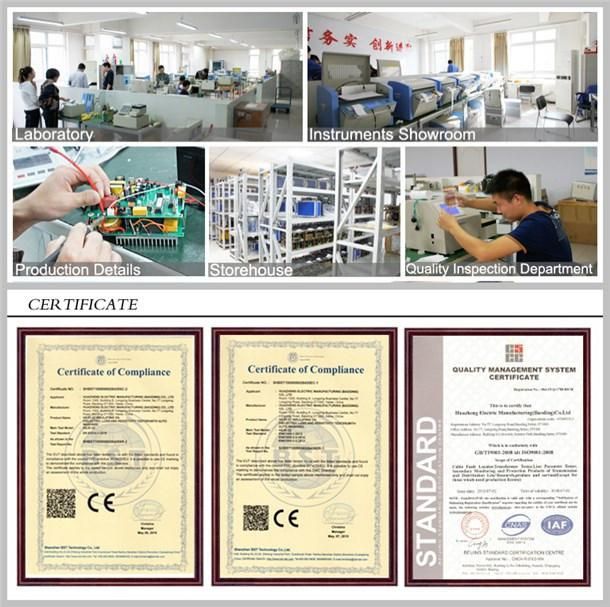

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


V.Customer Visit


VI.Exhibition
