• Model NO.：ZNF200
• Brand：Triumph Load
• Nominal Voltage：DC350V,220V,110V
• Discharge Voltage：280-437V,96-275V,48-137V
• Protected Voltage：1-437V
• Discharge Current：1-150A
• Discharge Time：1m---99h59m
• Discharge Capacity：10-1500ah
• Accuracy：Current--0.1A, Voltage --0.1V
• Control Precision：±(0.3%+0.2A)
• Working Voltage：AC Single Phase 220V,50Hz
• Transport Package：Wooden Case
• Specification：0.5cbm
• Trademark：Triumph Load
• Origin：Hebei, China
• HS Code：9030339000
• Production Capacity：10000sets,Year

Basic Info.

Model NO. ZNF200 Brand Triumph Load Nominal Voltage DC350V/220V/110V Discharge Voltage 280-437V/96-275V/48-137V Protected Voltage 1-437V Discharge Current 1-150A Discharge Time 1m---99h59m Discharge Capacity 10-1500ah Accuracy Current--0.1A, Voltage --0.1V Control Precision ±(0.3%+0.2A) Working Voltage AC Single Phase 220V/50Hz Transport Package Wooden Case Specification 0.5cbm Trademark Triumph Load Origin Hebei, China HS Code 9030339000 Production Capacity 10000sets/Year

Product Description

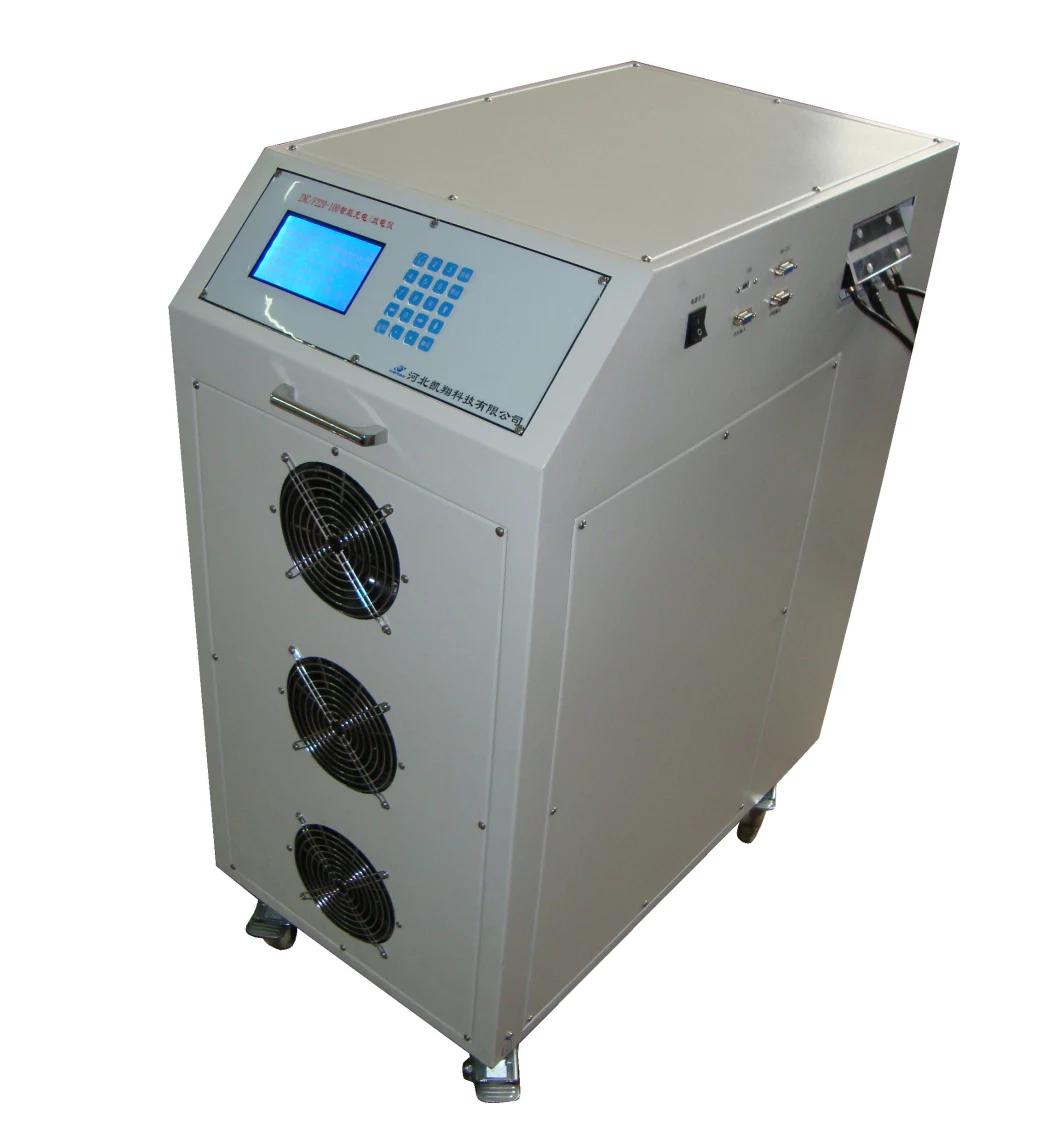

Intelligent Adjustable Resistive Battery Discharge Tester

1.Intelligent Battery Discharge Tester Introduction
Intelligent Battery Discharge Tester is the instrument that can maintain and test capacity of battery, DC power and
UPS backup battery. After setting parameter, it can achieve capacity test to battery and load capacity test to DC. It solves the problem of large capacity data storage due to adopting standard USB interface, of which data can be read with U disk. Data processing software kit can realtime gain the running status and parameter of discharger and form, display, print,
all kinds of chart that is of powerful online monitor and analysis process function. Battery and DC capability can be seen clearly.

2.Intelligent Battery Discharge Tester Main Features
1).Display:LCD display all parameters and test datas in real-time with English menu.Display testing datas:voltage,current,
capacity,dischargeing time,temperature,etc.
2).Control parttern:Control by MCU (Micro-Controller Unit),keyboard set the whole battery set protective voltage,
current,capacity,discharging time,etc.
3).Automatic stop:It can stop testing automatically meet following conditions: test time out, testing capacity out and
protective voltage out.
4).Protection:Perfect automatic protection and alarm function:When high temperature,opposing connection,automatic
protection power-off and sending alarm sound.
5).Real-time monitor function:Display real-time all setting parameter (for example voltage, current and time,etc.)
6).Record query:Discharger can save 8 sets of discharging data;users can check record according to needs.
7).Data saving:Testing data can be transferred or uploaded to PC through USB or RS232 interface.
8).Data processing:It will form all kinds of chart, graph after background processing.Graph can be printed.
9).PC control:By PC to control starting, stopping and pausing discharging, set and correct discharging parameter.
10).It can parallel connect more than 2 same type machines, each machine operates separately and easy control.
11).Discharger can correct the displayed voltage and current, especially the group voltage and current.
12).Power-consuming is special alloy resistor with small temperature drift,patent technology design,high power density,
safe.
13).Extended function:Operate together with Online Battery Set Parameters Monitor produced by our company,can test
the cell voltage, analyze battery internal resistance and RemCap (remaining capacity), test the disabled battery exactly even more and ensure the reliability of battery.

3.Intelligent Battery Discharge Tester Specification


Model	ZNF350-150
Battery Nominal Voltage	DC 350V/220V/110V
Discharging Voltage	For 350V Discharge  Voltage:280-437V,within 350V±10% guarantee the highest current 150A, can discharge for long time,changing according to Ohm's Law. For 220V Discharge  Voltage: 96-275V,within 220V±10% guarantee the highest current 150A,  can discharge for long time,changing according to Ohm's Law. For 110V Discharge  Voltage: 48-137V, within 110±10% guarantee the highest current 100A,  can discharge for long time, changing according to Ohm's Law.
Protective Voltage	1-437V
Discharging Current	1-150A
Discharging Time	1 minute-99 hours and 59 minutes
Discharging Capacity	1-1500Ah
Group Voltage Tolerance	±1%
Current Tolerance	±1%
Constant-current Discharge Control	±(0.3%+0.2A)
Power Supply	230VAC ,50Hz
Cooling	Forced air cooling
Communication Interface	RS232, USB interface
Environment temperature	-10ºC - +40ºC
Weight(kg)	70kg

4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
