• Model NO.：BTL-D2-287C
• Temperature Rise Rate：3ºC,Min on Average Throughout
• Cooling Rate：1ºC,Minute on Average
• Temperature Uniformity：≤2ºC
• Temperature Deviation：≤1ºC
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space 820x500x700(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8419899090
• Production Capacity：100set ,Month

Single layer inner box size

The test chamber is designed as an integral upper and lower studio structure

Temperature range
-40ºC~+150ºC
 Air supply methodForced internal circulation, full surface horizontal air supplyTemperature fluctuation±0.3ºCHeating ratethe whole process average 1-3ºC/minCooling ratethe whole process average 1 ºC / minTemperature uniformity≤2ºC(at no load, constant state)Temperature deviation≤1ºCObservation windowW300xH400MMTest terminals12 sets of terminals are installed inside and outside the left side of the box to connect with the test cabinetCooling modeoptional: air-cooled or water-cooledControl modeTouch screen programmable PLC with USB interface, RS485 interface for computer control, special network control software for remote monitoring and data acquisition.Inner box materialSUS304# mirror stainless steel, thickness 1.0MM, spray Teflon insulationOuter box materialgalvanized plate, powder spraying, high temperature plasticization, thickness 1.2MMPower supply voltageAC380V 50HZ 12KWSafety protectionautomatic explosion-proof pressure relief device, explosion-proof chain, three-color light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.

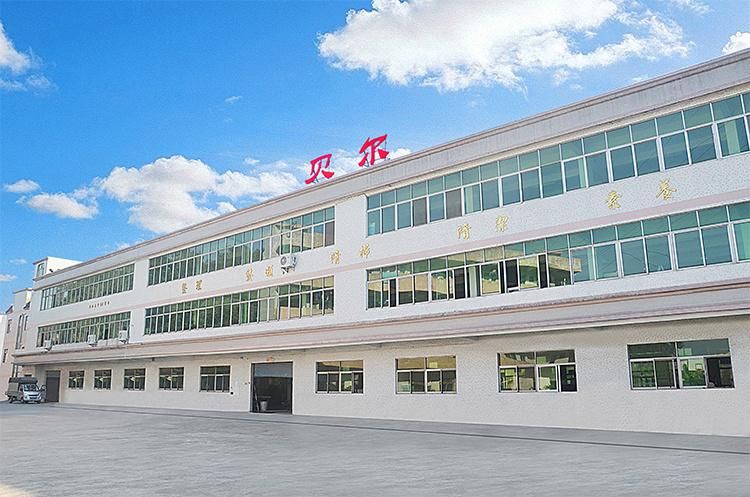

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
