• Model NO.：ES-1 , ES-2 , ES-350
• Power Source：AC380V
• Sine Force：10000n
• Random Force：10000n
• Acceleration：100g
• Frequency Range (Hz)：3 to 3000Hz
• Rated Velocity：1.8ms
• Certificate：Ce, SGS, TUV, BV
• Rated Displacement (P-P)：51mm
• Power：380V
• Transport Package：Plywood Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90312000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. ES-1 / ES-2 / ES-350 Power Source AC380V Sine Force 10000n Random Force 10000n Acceleration 100g Frequency Range (Hz) 3 to 3000Hz Rated Velocity 1.8ms Certificate Ce, SGS, TUV, BV Rated Displacement (P-P) 51mm Power 380V Transport Package Plywood Case Specification CE Certified Trademark ASLi Origin Guangdong, China HS Code 90312000 Production Capacity 30 Sets/Month

Product Description

Electrodynamic High Frequency Vibrating Table with Horizontal Vibration

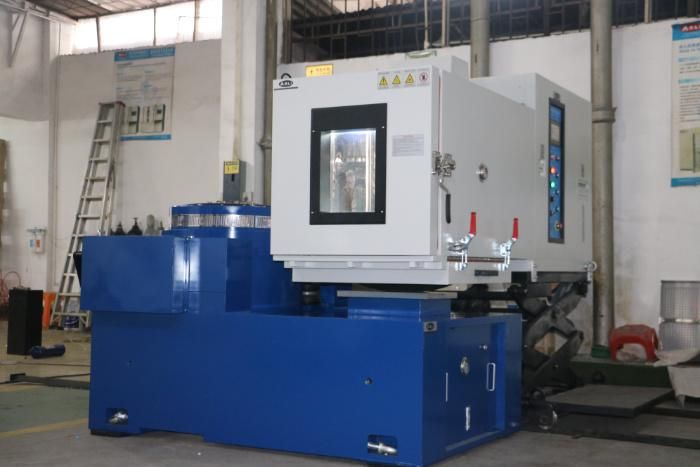

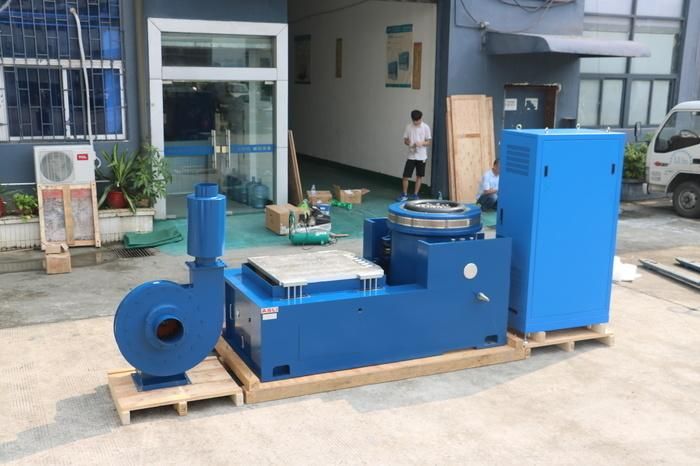

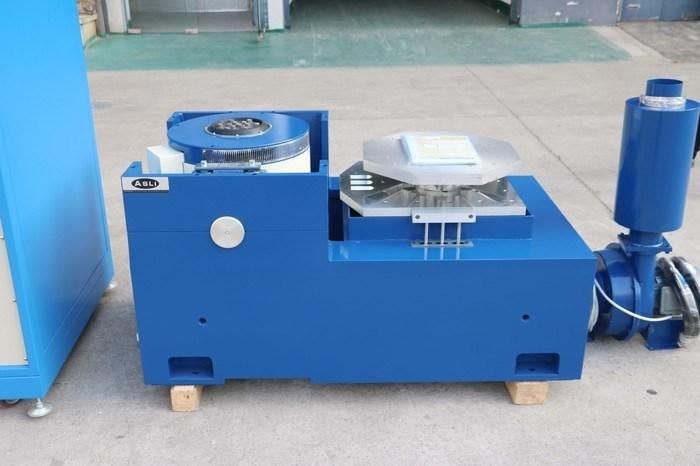

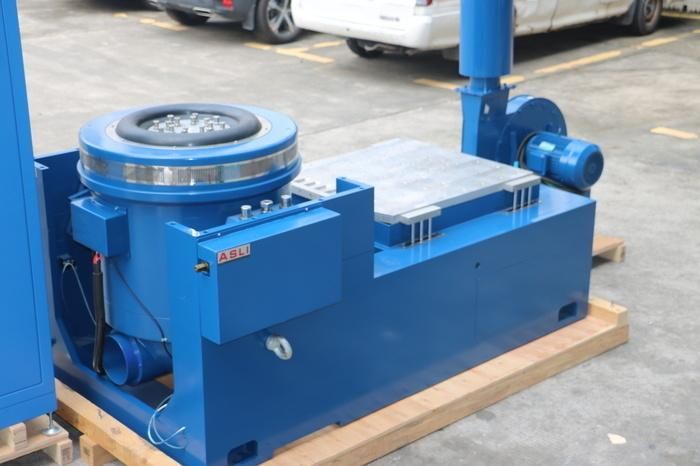

Product Pictures:

Electrodynamic High Frequency Vibrating Table with Horizontal Vibration Technical Parameters:

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration  (m/s2)	Rated Speed(m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil(Kg)	Dimension of Moving coil(mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500

Technical parameters of vertical expander:

Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.

Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.

Customers' Visit ASLi Factory:

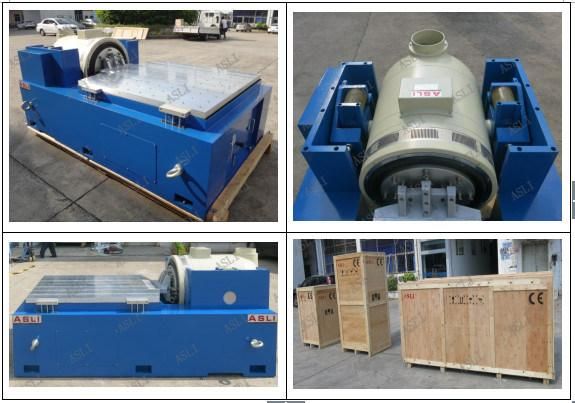

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Electrodynamic High Frequency Vibrating Table with Horizontal Vibration is our star products , and we had obtained the CE certification for this machine .

Exhibition:

FAQ

Q1. What is your terms of packing?

A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages

before you pay the balance.


Q3. What is your terms of delivery?

A: EXW, FOB, CIF.


Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
