Acceleration Mechanical Shock Tester for Big Size LED Impact Testing
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service:Lifelong Technical Service Support
- Warranty:1 Year
- Max Diameter of Workpiece:1800mm
- Mass Scope of Workpiece:900kg
- Type:Impact Testing Machine
- Maxcapacity:<1000KN
Base Info
- Model NO.:MS-50 , MS-100 , MS-200
- Accuracy Grade:1
- Load Way:Mechanical Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC380V
- Frequency (Times /Min):10~80
- Pulse Acceleration( M/S2):50~1000
- Weight (Kg):2000
- Max. Dropped Height (mm):60
- Pulse Width:3~20ms
- Frequency:10~80 Times, Min
- Transport Package:Plywood Case
- Specification:CE, ISO
- Trademark:ASLI
- Origin:Dongguan, China
- HS Code:85141090
- Production Capacity:400 Sets,Year
Description
Overview
Product DescriptionMS-800 Load capacity (kg) 50 100 200 500 800 pulse acceleration( m/s2) 50~1200 50~1000 50~1000 50~500 50~500 Pulse Width (ms) 20~3 20~3 20~3 20~3 20~3 Frequency (times /min) 10~80 10~80 10~80 10~80 10~80 Table Size (mm) 500X700 700X700 700X700 800X800 1000X 1000 Max. Dropped Height (mm) 60 60 60 60 60 Pulse Type Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional) External Dimension WXHXD (mm) 800X1300X
1000 800X1300X
1000 850X1350X
1100 1000X1300X
1900 1000X1300X
1900 Weight (Kg) 1100 1250 2000 3000 3500 Protection Device Door protection, over-load protection, zero signal protection Power AC 220V(±10%), 1∮3 Lines ,50/60HZ;

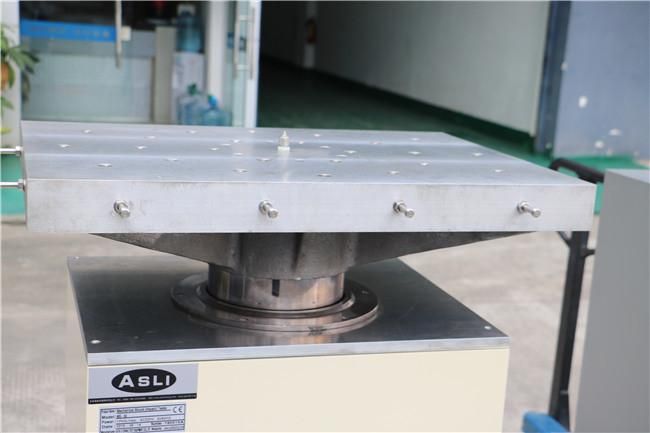

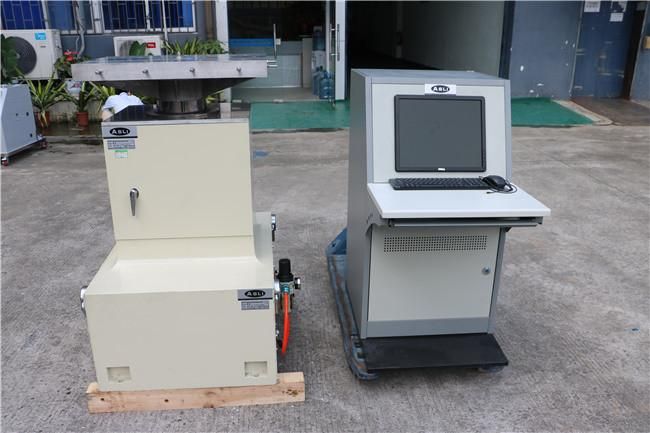

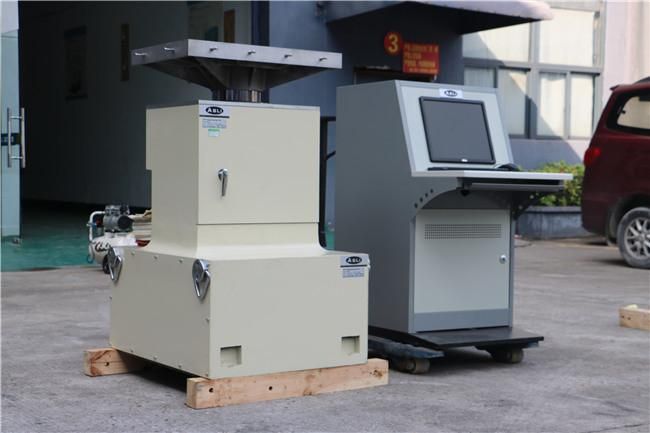

AC 380 V(±10%) ,3∮ 5 Lines,50/60HZ Environmental Conditions Temperature: 25ºC±5.0ºC humidity: <85%(25ºC) Detailed Photos
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Traning in ASLI Factory
Any needed about Acceleration Mechanical Shock Tester for Big Size LED Impact Testing, please don't hesitate to contact us.
Acceleration Mechanical Shock Tester for Big Size LED Impact Testing is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Product ParametersAcceleration Mechanical Shock Tester technical parameters: MS-5001000
1000
1100
1900
1900
AC 380 V(±10%) ,3∮ 5 Lines,50/60HZ
Acceleration Mechanical Shock Tester features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Traning in ASLI Factory
Any needed about Acceleration Mechanical Shock Tester for Big Size LED Impact Testing, please don't hesitate to contact us.
