Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester

Changzhou Chuangkai Electronic Co., Ltd.
  • Warranty：1 Year
  • Memory：Store 100 Test Files and Each File Can Hold at MOS

Base Info

  • Model NO.：TH9010
  • Product Name：Th9010 8 Channels AC,DC Withstanding Voltage
  • Voltage Rising Time：0.1s - 999.9s
  • Test Time Setting (AC/DC)：0.2s -999.9s
  • Voltage Fall Time：0.1s-999.9s
  • Waiting Time (IR)：0.2s - 999.9s
  • Interface：Handler, RS232, USB Drv, USB Host
  • Discharge Function：Discharge After Test Ends (Dcw)
  • Resistance Test Range：0.1mohm- 10.0gohm
  • Dimension (mm) and Weight：430(W)X177(H)X630(D),40kg
  • Number of Units：8 Separate Channel
  • Transport Package：Carton
  • Specification：85x65x41cm
  • Trademark：CKT
  • Origin：China
  • HS Code：9030332000
  • Production Capacity：3000 Sets Per Month
  • Package size per unit product：85.00cm * 65.00cm * 41.00cm
  • Gross weight per unit product：40.000kg
  • Lead Time：10 days (1 - 5 set) To be negotiated ( > 5 set)

Description

Overview Product Description

ModelTH9010TH9010ANumber of Unitsseparate channelseparate channelWithstanding Voltage Test Output VoltageAC0.10kV - 5.00kV       ±2%DC0.10kV - 6.00kV       ±2%Current TestRangeAC0mA - 10.00mA        ±(2% readings + 5 digits)  DC0uA - 5.00mA           ±(2% readings + 5 digits)Rapid Discharge FunctionDischarge after test ends (DCW)Insulation Resistance Test Output Voltage0.10kV - 1.00kV       ±2%Resistance Test Range0.1MΩ - 10.0GΩResistance Test Accuracy0.10MΩ - 999MΩ ±10%1.00GΩ - 10.0GΩ ±20%Discharge FunctionDischarge after test endsArc Detection Test RangeCorresponding Current1mA - 20mAGeneral Specification Voltage Rising Time0.1s - 999.9sTest time Setting (AC/DC)0.2s - 999.9sVoltage Fall Time0.1s - 999.9sWaiting Time (IR)0.2s - 999.9sTime Accuracy±(1%+0.1s)Memory Store 100 test files and each file can hold at most 20 testing stepsInterface  StandardHANDLER, RS232, USB DRV, USB HOST Detailed Photos

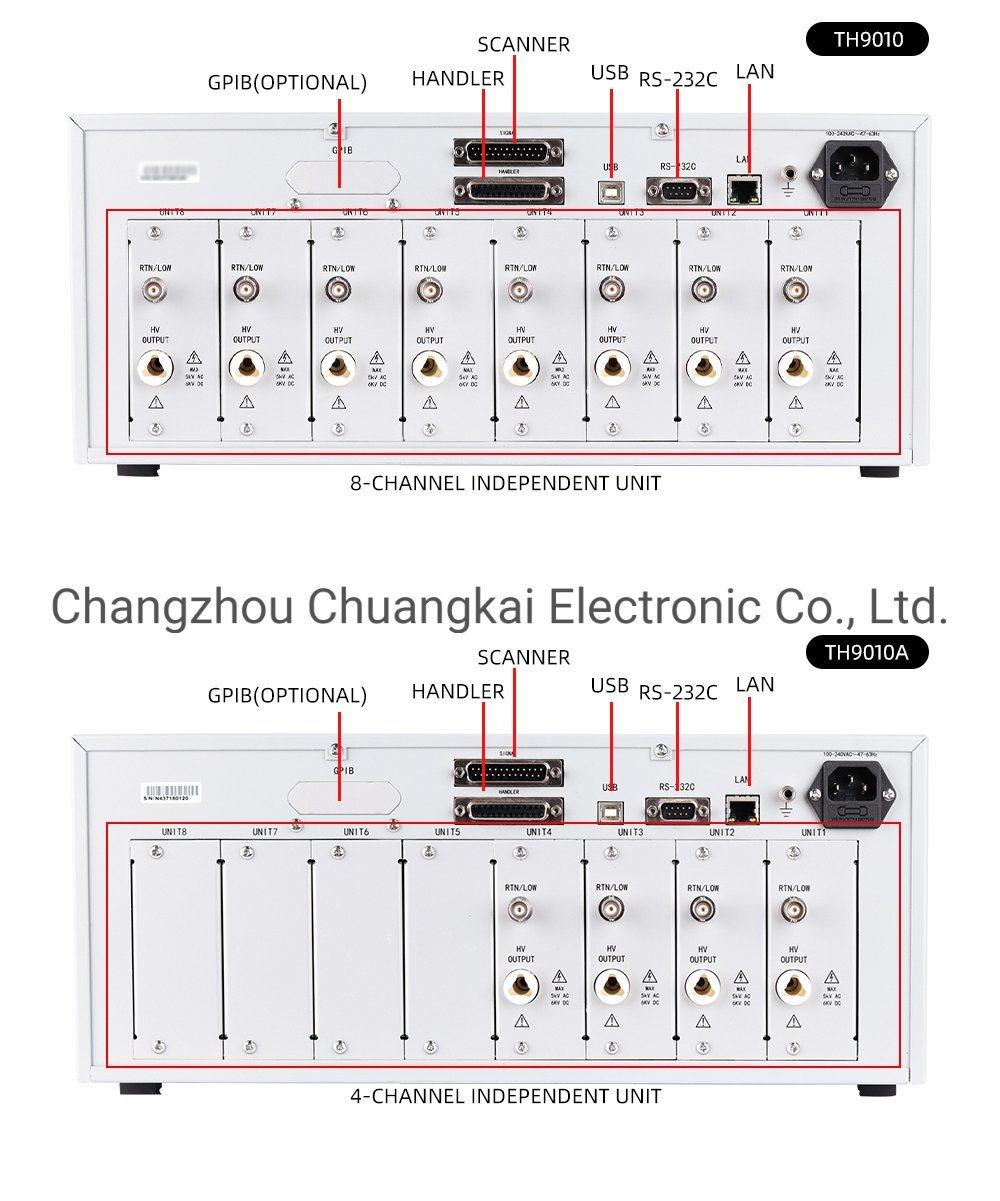

Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester
Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester

Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance Tester

Th9010 8 Channels AC/DC Withstanding Voltage & Insulation Resistance TesterPackaging & Shipping
