ASTM D2700&2699 Research and Motor Method Gasoline Octane Number Test Device

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Test Standard：ASTM D2700, ASTM D2699
  • Test Method：Research and Motor
  • Measuring Range：40~120
  • Cast Iron Cylinder Diameter：82.55mm (3.25in)

Base Info

  • Model NO.：CFR-A1
  • Cast Iron Piston Stroke：114.3mm (4.5in)
  • Displacement：0.61L (37.33in3 )
  • Engine Speed：(900±9) R,Min;(600±6) R,Min
  • Lubricating Oil Pressure：172~207kpa
  • Lubricating Oil Temperature：57±8ºC
  • Coolant Temperature：100±1.5°c
  • Mixed Gas Temperature：149±1.1ºC
  • Intake Temperature (Motor Method)：38 ± 2.8ºC;52±1ºC
  • Power Supply：AC380V ±10%, 50Hz AC220V ±10%, 50Hz
  • Power Consumption：15kw
  • Dimension：1700 Wide × 900 Dept × 1400 High (mm)
  • Transport Package：Plywood Case
  • Specification：Big
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Octane number test range40~1202Cast iron cylinder diameter82.55mm (3.25in)3Cast iron piston stroke114.3mm (4.5in)4Displacement0.61L (37.33in3 )5Compression ratio adjustment range4: 1~18: 16Engine speedMotor method: (900±9) r/min; Research method: (600±6) r/min7Lubricating oil pressure172~207Kpa8Lubricating oil temperature57±8ºC (135±15ºF )9Coolant temperature100±1.5°C (212±3°F)19Mixed gas temperature (Motor Method)149±1.1ºC (300±2ºF )20Intake temperature (Motor Method)38 ± 2.8ºC (100±5ºF)21Intake temperature (Research Method)52±1ºC (At standard atmospheric pressure), corrected with the atmospheric pressure, to maintain the range of ±1 ºC22Ignition advance angleMotor method ε 5.0 (26±1.5°)
Research Method (13°)23Power supplyAC380V ±10%, 50Hz AC220V ±10%, 50Hz24Machine power15KW25Instrument size1700 wide × 900 dept × 1400 high (mm)26Machine weight1000kg

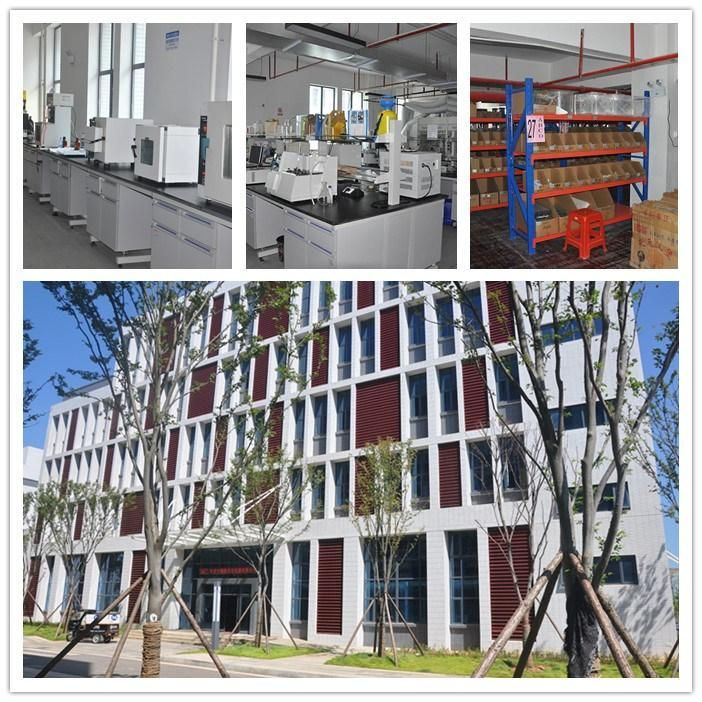

Factory overview
ASTM D2700&2699 Research and Motor Method Gasoline Octane Number Test Device
Customer Feedback

Germany
ASTM D2700&2699 Research and Motor Method Gasoline Octane Number Test Device
USA
ASTM D2700&2699 Research and Motor Method Gasoline Octane Number Test Device
Package
ASTM D2700&2699 Research and Motor Method Gasoline Octane Number Test Device
FAQ
1.What's the delivery time?
About 40 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
