• Model NO.：TSCV
• Color：Grey
• Test Standard：IEC60332-1-2, IEC60332-1-3
• Functioin：Determine Resistance of Single Cable to 1kw Flame
• Power Supply：AC 220V, 50,60Hz, 3A
• Gas Supplies：Air and Propane
• Dimension：600(W)×450(D)×1250(H)mm
• Weight：60kg
• Display：LCD
• Dimension of Chamber：Height of 1200mm, Width of 300mm, Depth of 450mm
• Application：Cable and Wires Testing
• Burner Angle：45 °, 0 °, Adjustable
• Dimater of Burner：12 ± 0.5mm
• Propane Flow：650ml,Min ± 30ml,Min
• Air Flow：10L,Min ± 0.5ml,Min
• Blue Flame：50mm~60mm,
• Total Flame：170mm~190mm
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. TSCV Color Grey Test Standard IEC60332-1-2, IEC60332-1-3 Functioin Determine Resistance of Single Cable to 1kw Flame Power Supply AC 220V, 50/60Hz, 3A Gas Supplies Air and Propane Dimension 600(W)×450(D)×1250(H)mm Weight 60kg Display LCD Dimension of Chamber Height of 1200mm, Width of 300mm, Depth of 450mm Application Cable and Wires Testing Burner Angle 45 °, 0 °, Adjustable Dimater of Burner 12 ± 0.5mm Propane Flow 650ml/Min ± 30ml/Min Air Flow 10L/Min ± 0.5ml/Min Blue Flame 50mm~60mm, Total Flame 170mm~190mm Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Introduction

Vertical Flame Propagation Test Apparatus is used for the vertical flame propagation of a single insulated wire or cable is a bench scale test to determine the resistance of a single cable to a 1kW flame application. It conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).



Feature

1, The Vertical Flame Propagation Test Apparatus has intelligent instrumentation and control systems;
2, The machien has functions of automatic ignition system, automatic timing;
3, Test and control parts using integrated design, convenient installation and debugging.
4, Full stainless steel enclosure, internal cavity is 1200mm, width 300mm mm, depth of 450mm;
5, Two stainless-steel rods, perforation and bolted to a single wire cable or fiber optic cable sample;
6, Burners for premixed type, diameter DIA 12 ± 0.5mm, CA 100mm. 1KW standard burner hybrid, can provide accurate test fire; control box is equipped with a pressure gauge, pressure relief valve, flow meter and cuts off the ball valve;
7, The gases inside the control box is equipped with a one-way valve, provide more security assurances;
8, Flame application time and burning time can be adjusted in the context of 0~99 and 99 seconds.
9, Inlet needle valve adjust the flame height, blue flame according to the standards 50mm~60mm, total height 170mm~190mm;
10, Inlet needle valve controlling gas flow: propane 650ml/min ± 30mL/min air 10L/min ± 0.5ml/min;
11, The Vertical Flame Propagation Test Apparatus  adopts imported brands of gas pressure gauges and pressure regulating valve, precise control of the gas pressure;
12, The Vertical Flame Propagation Test Apparatus  is equipped with a flame height gauges.
13, The Vertical Flame Propagation Test Apparatus  uses gas flow meter and pressure control.
14, Burner angle 45 °, 0 °, adjustable.


Installation requirements of Vertical Flame Propagation Test Apparatus

1	Electrical	AC 220V, 50/60Hz, 3A
2	Ambient Temperature	Operating 10°C to 35°C
3	Gas	air and propane
4	Dimension	600(W)×450(D)×1250(H)mm
5	Weight	60KG

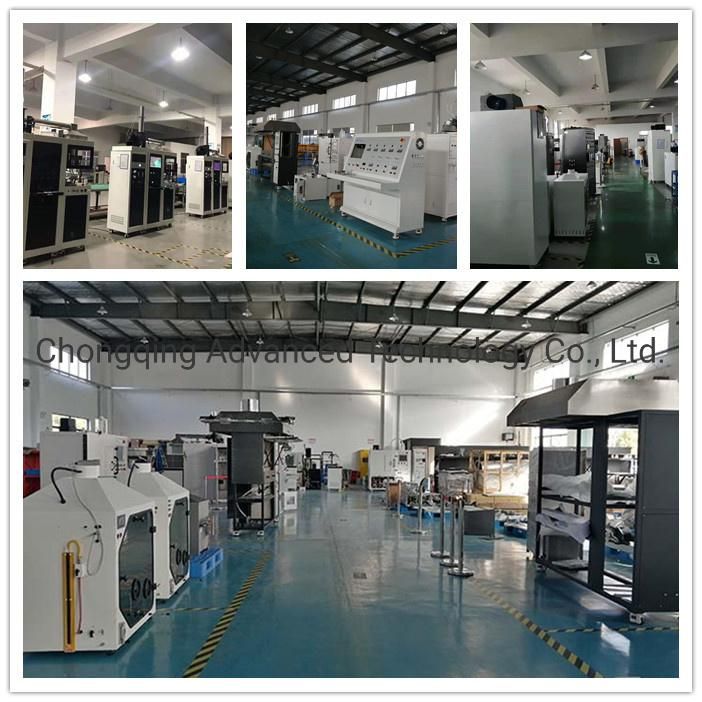

Factory overview

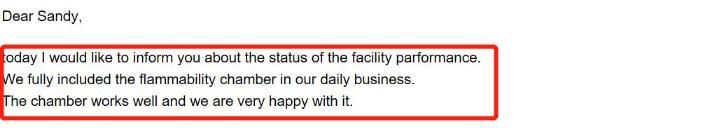

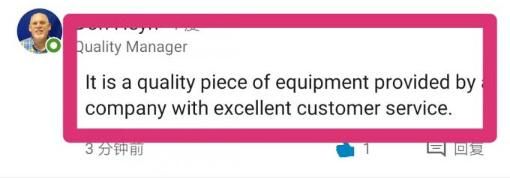

Customer Feedback

Germany

USA

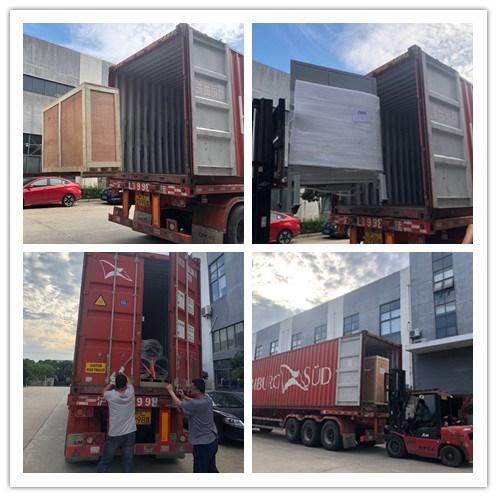

Package

FAQ
1.What's the delivery time?
About 40 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
