• Model NO.：ES-20
• Weight：1000-2000Kg
• Power Source：AC380V
• Rated Force：20000n
• Frequency Range：5~2000Hz
• Max. Speed：1.8m,S
• Impact Displacement：51mm
• Moving Coil：30kg
• Vibration Wave：Sine, Random, Shock
• Vibration Directions：3 Axis
• Application：Electronic Components
• Transport Package：Wooden Case
• Specification：ES Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90312000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. ES-20 Weight 1000-2000Kg Power Source AC380V Rated Force 20000n Frequency Range 5~2000Hz Max. Speed 1.8m/S Impact Displacement 51mm Moving Coil 30kg Vibration Wave Sine, Random, Shock Vibration Directions 3 Axis Application Electronic Components Transport Package Wooden Case Specification ES Series Trademark ASLi Origin Guangdong, China HS Code 90312000 Production Capacity 30 Sets/Month

Product Description

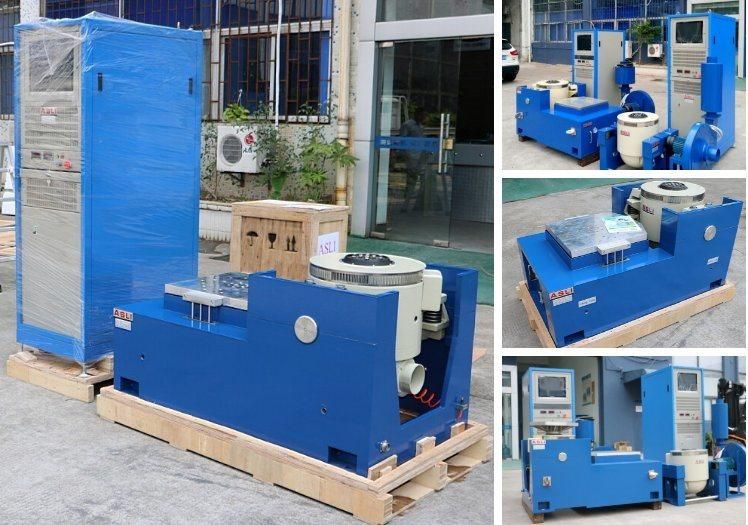

5~2000hz Electromagnetic High Frequency Transportation Simulation Vibration Test Table


Product DescriptionVibration Test System for Electronic Components Vibration Test is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.



Model	Rated Sine Force (N)	Rated Random  Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil(mm)

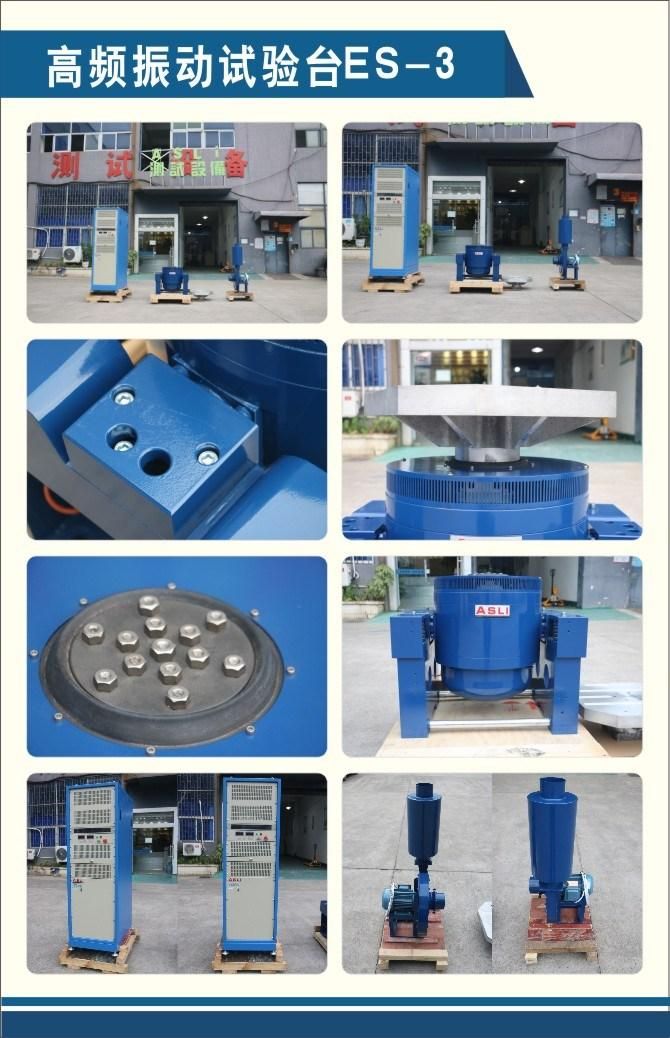

ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

High Frequency Vibration Test Machine Feature

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

 For Horizontal Expander:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.



Vertical extended-bench Features

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.
  Company Profile We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. 5~2000hz Electromagnetic High Frequency Transportation Simulation Vibration Test Table is our star products , and we had obtained the CE certification for this machine .  Our Advantages1.Professional technology support.

2.Full experience of large numbers containers loading in Chinese sea port.

3.Fast shipment by reputed shipping line.

4.Best service after shipment with emails.

5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products

Packing & Delivery5~2000hz Electromagnetic High Frequency Transportation Simulation Vibration Test Table
