• Model NO.：XB-OTS-UV-A,B
• Humidity Range：Rh75%~95%
• Temp Range：Rt+10 C ~70 C
• Centre Distance Between The Lamp：70mm
• Weight：Appro 150kg
• Transport Package：Resin Fiber & Strong Wooden Case
• Specification：W1480*D560*H1450mm
• Trademark：OTS
• Origin：China
• HS Code：9031809090
• Production Capacity：268PCS,Month

     Uv Weathering Test Machine is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical, and so on.
     Uv Weathering Test Machine ,simulates damaging effects of long term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, moisture and heat. A UV accelerated weathering chamber uses fluorecent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths. Moisture is provided by forced condensation, and temperature is controlled by heaters.



Applicable standards:
(1) ISO 48-3-2006, Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps;
(2) ASTM D4329-2005, Standard Practice for Fluorescent UV Exposure of Plastics;
(3) ASTM D4587-2005, Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings;
(4) ASTM D5208-2001, Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics,
(5) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
(6) ISO 4892-1: Plastics - Methods of Exposure to Laboratory Light Sources - Part 1: General guidance
(7) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(8) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules

Specification:Wave lengthUV-B Wave (280~315nm) or  UV-A Wave (320~400nm)Specimen size and quantity75x150 mm 48 pcsWater and consumptionDistilled water, 8 liters / day
L=1220, 40w, 8 UVB or 8UVAStudio sizeW1480xD560xH1450mmUniformity of temperature and humidity±2ºC and  ±2%Fluctuation of temperature and humidity±0.5ºC and ±2%Irradiance1000uw/cm2PowerAC 220V 50HZ   5KWTube quantity8 lamps, imported from CanadaWeight150KG
 Features:
(1) Electronic-eye irradiance control system
(2) Use blackboard temperature sensor providing precise temperature and recurring test result.
(3) Perform humidifying, condensation and water spraying circulating test.
(4) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
(5) Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs

Security devices:
1. power overload, passing control back to the overload, short circuit protection
2. ground fault protection, motor overload protection
3. over-temperature protection
4. overvoltage, overload
5. for the protection of equipment, all alarms will automatically cut off the power, and issued voice prompts.

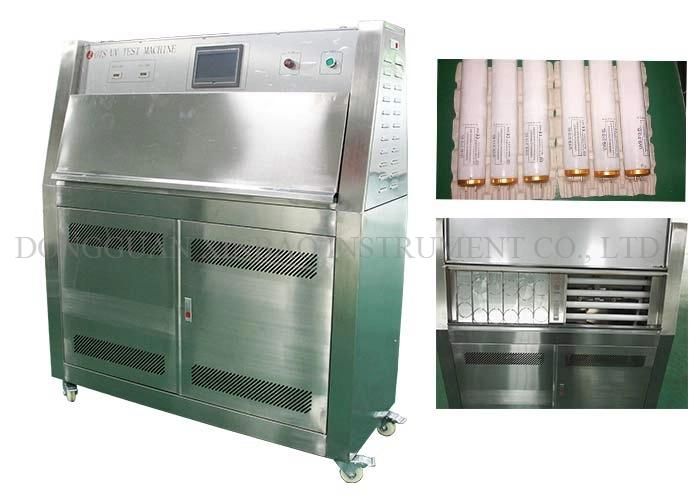

Product View Of Electronic Environment Climate Resistant UV Aging Test Chamber
 Recommend ProductsCompany Profile

Manufacturing TechniqueCustomer PhotosCertificationsPacking&ShipingFAQ1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.   If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized  machines according to your requirements. And we can also put your logo on the machine.
 4.How to install and use the product?
We will send you operating instructions, English  video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.  And if possible, we can also install your machine at site.
