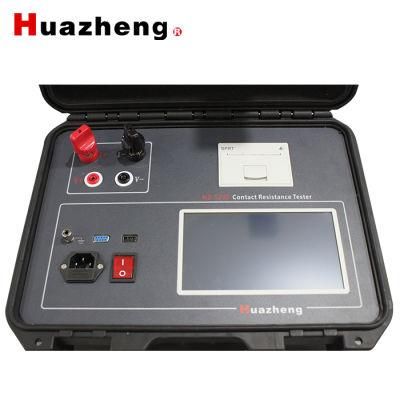

High Voltage Switch Ohmmeter Circuit Breaker Contact Resistance Test Set

Huazheng Electric Manufacturing (Baoding) Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Years
  • Mass Scope of Workpiece：<900kg
  • Type：Contact Resistance Test Set
  • Display：Digital
  • Control：Computer Control

Base Info

  • Model NO.：HZ5100
  • Weight：0-100Kg
  • Power Source：AC220V
  • Model Number：Hz-5100
  • Test Report：Yes
  • Measurement Accuracy：± (0.2%+2)
  • Work Power：110V-400V Adjustable
  • Work Temperature：-10°c~ 50°c
  • Environment Humidity：≤85%Rh
  • Power Frequency：50±1Hz
  • Sharpness of Separation：1
  • Output Current：20A 10A 5A 2A 1A
  • Size：370mm*235mm*225mm

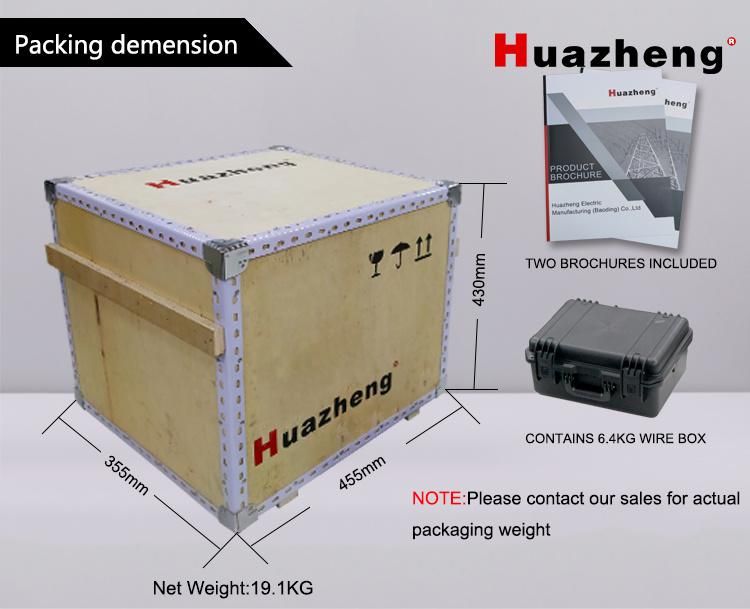

  • Transport Package：Wooden Box with Foam Inside
  • Specification：CE,ISO,IEC
  • Trademark：HuaZheng
  • Origin：Hebei, China
  • HS Code：9030332000
  • Production Capacity：100 PCS,Month

Description

Measuring Current50A 100AMeasuring Range0~100mΩ(50A)

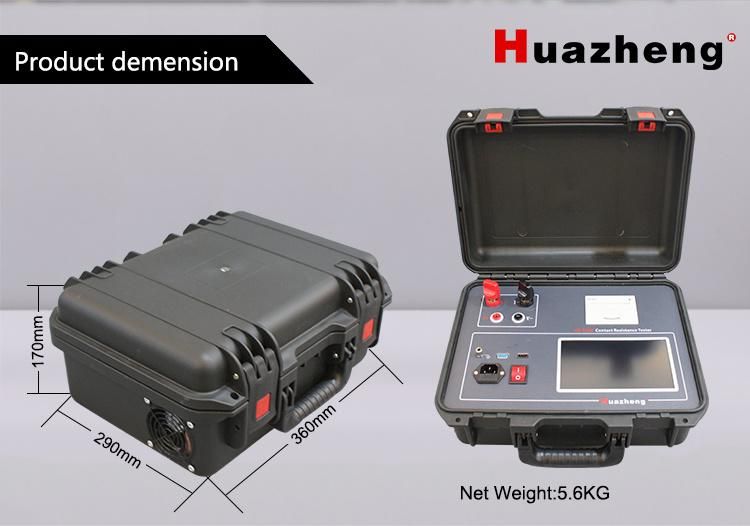

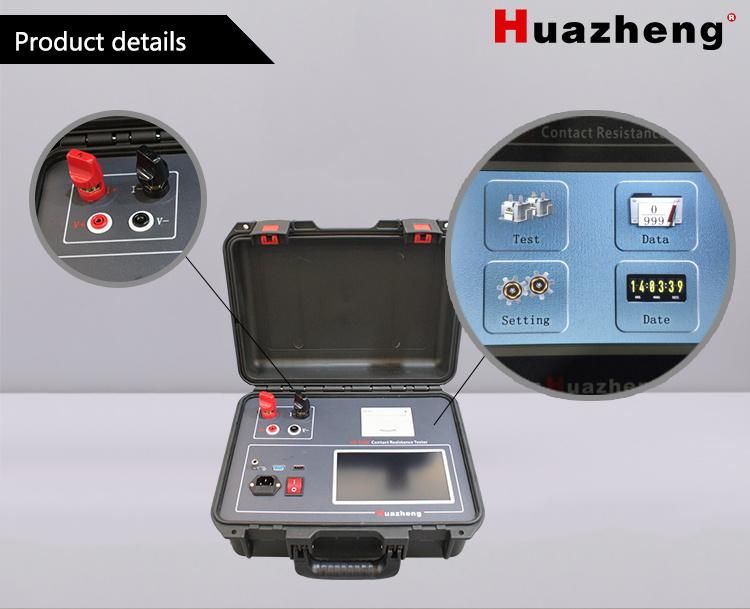

0~50mΩ(100A)Minimum Resolution0.1μΩAccuracy± (0.5% +2μΩ)Power1000WPower supplyAC220V±10% 50HzWorking Temperature0~40ºCHumidity≤90%RH, no condensationDimensions(mm)355*275*147Instrument weight9.5 Kg IV.Detailed Photos
High Voltage Switch Ohmmeter Circuit Breaker Contact Resistance Test Set
High Voltage Switch Ohmmeter Circuit Breaker Contact Resistance Test SetHigh Voltage Switch Ohmmeter Circuit Breaker Contact Resistance Test SetHigh Voltage Switch Ohmmeter Circuit Breaker Contact Resistance Test SetHigh Voltage Switch Ohmmeter Circuit Breaker Contact Resistance Test Set


V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

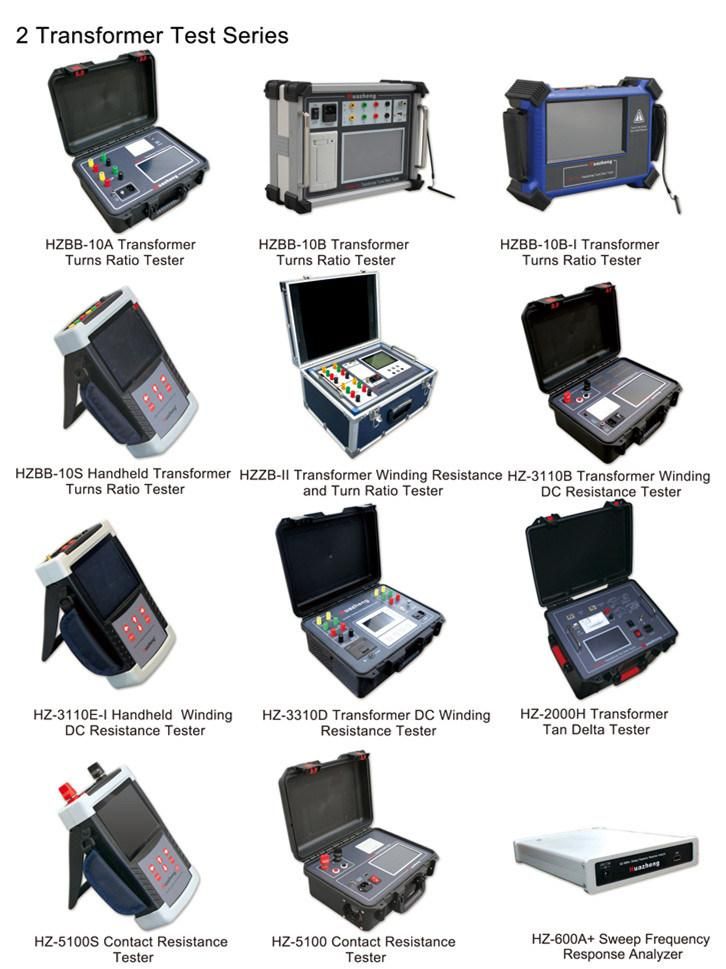

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
