• Model NO.：THR Series
• Temperature Distribution Uniformity：+,- 3.0c
• Test Points：60c & 95%R.H
• Application：Auto Parts
• Volume：Customized Size
• Transport Package：Wooden Case
• Specification：CE
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：300 Sets,Month

Walk in Temperature Humidity Test Room Technical ParametersModelTHR-volume (low-temperature options : A ~ F)Inner Dimensions(cm)Customers designated space size and designTemperature RangeLow Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C
E:-60degree C F:-70degree C )

High Temperature 80degree C (80degree C ~150degree C is optional)Humidity Range20%~98%R.H.

(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)Indication Resolution/
Distribution Uniformity of
Temperature & Humidity0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H.Control Accuracy of
Temperature and Humidity±0.5degree C ; ±2.5% R.H.Temperature Rising/
Falling VelocityTemperature rising approx. 0.1~3.0°C/min;

temperature falling approx.0.3~1.0°C/min;

( The Falling Velocity Min.1.0°C /min is a optional)Cooling SystemWater cooledProtection DevicesFuse-free switch, overloading protection switch for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesSlope for cart , Recorder, Water Purifier, DehumidifierCompressorFrench Tecumseh Brand, Germany Bizer BrandPowerAC 380 V(±10%),50/60HZ ,3 phase 5 Lines

Touch Screen Walk in Temperature Humidity Test Room Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23, R404A
6. LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

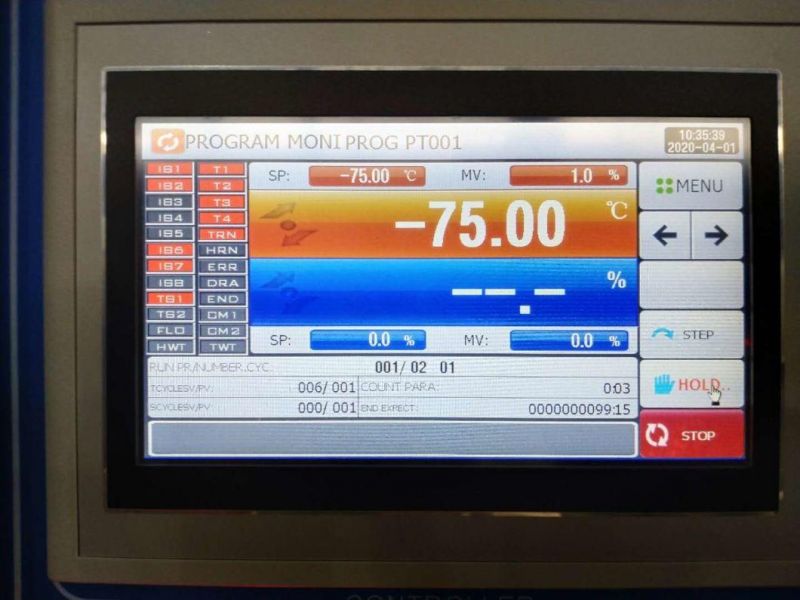

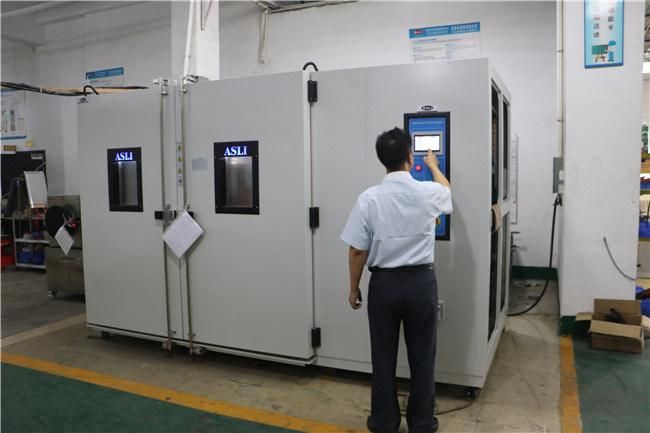

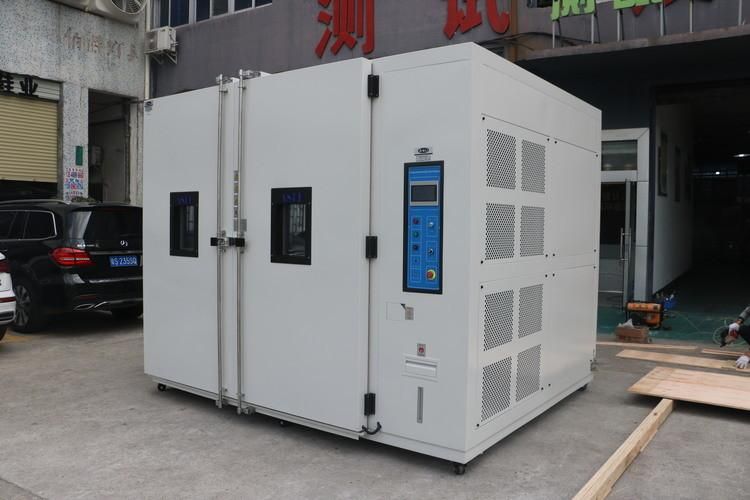

Pictures for your reference:

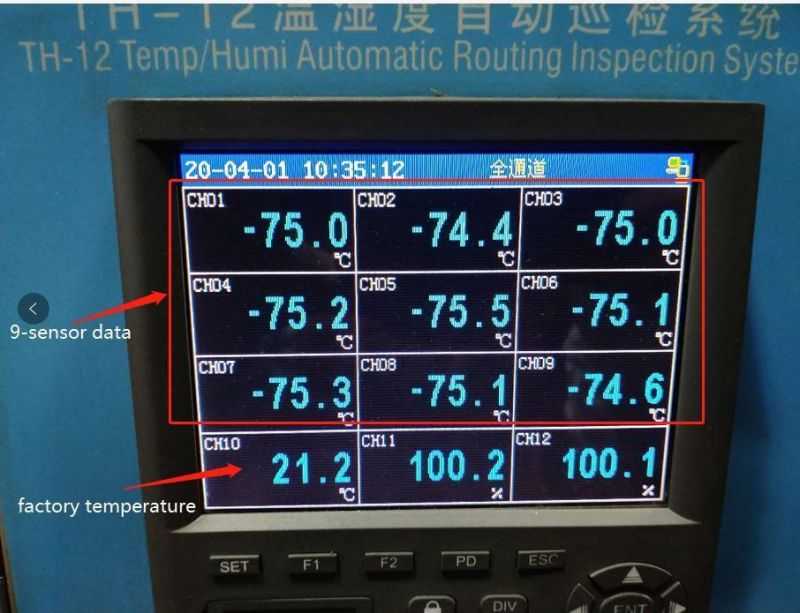

9-Point Calibration Method:

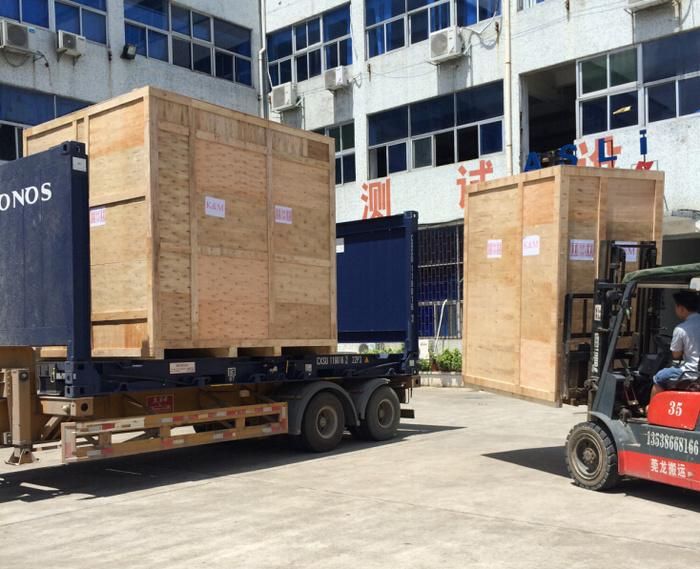

With Strongly Export Wooden Case:


Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products


If you need more information about -75~150C Programmable Touch Screen Walk in Constant Temperature Humidity Tester, please don't hesitate to send your inquiry.
