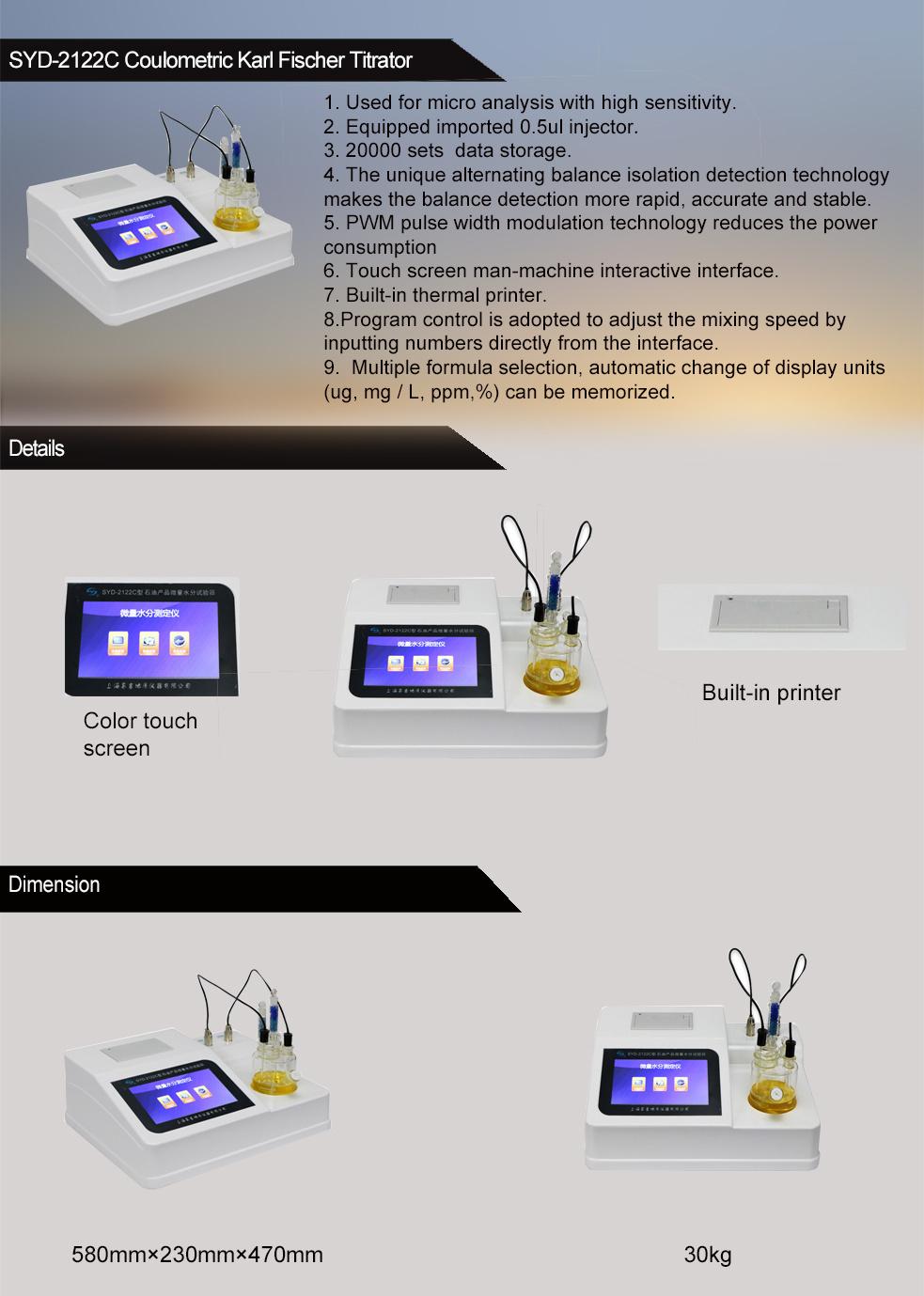

ASTM D1533 SYD-2122C Coulometric Karl Fischer Titrator for Petroleum Products Water Content
Shanghai Changji Geological Instrument Co., Ltd.- After-sales Service：Yes
- Warranty：1 year
- Display：color touch screen
- Principle：Coulometric Karl Fischer Method
- Range：0μg~100mg
- Maximum electrolysis speed：40ug,s
Base Info
- Model NO.：SYD-2122C
- Resolution：0.1μg
- Working Temperature：15~35ºC
- Relative humidity：85%
- Power supply：AC (220±10%)V, 50Hz
- Power consumption：30W
- OEM：Yes
- Transport Package：by Carton or by Wooden Case
- Specification：385mm× 290mm× 280mm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
The instrument is designed and made as per national standard of China GB/T 7600 Standard Test Method for Water Content of Transformer Oil in Service (Coulometric Method), industrial standard of China SH/T0246 Standard Test Method for Water Content of Light Oils (Coulometry). ASTM D1533 Standard Test Method for Water in Insulating Liquids by Coulometric Karl Fischer Titration and ASTM D6304 Standard Test Method for Determination of Water in Petroleum Products,Lubricating Oils and Additives by Karl Fischer Titration. It is used to determine water content in the liquid petroleum products.
The instrument adopts microcomputer control technology, with the characteristics of fast analysis speed, high precision, LCD display, automatic printing, menu selection and other functions; It is a fully functional, easy to operate, automatic measuring and analyzing instrument.
Main technical specifications
1. Measurement range: 0.0001% (1ppm) to 100%
2. Sensitivity threshold: 0.01ugH2O
3. Accuracy: for 5ug-1 mg:±2ug
for > 1mg:0.2%
4. Display mode:7.0 inch LCD color large screen touch display
5. Test results: printing
6. Power supply:AC( 220±10%)V, (50±5%)Hz
7. Maximum power consumption: 60 W
8. Ambient temperature: 5ºC~40 ºC
Relative humidity: ≤85%
9. Dimension:385mm×290mm×280mm
10. Net weight: 8 kg
Full set and technical documents
Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

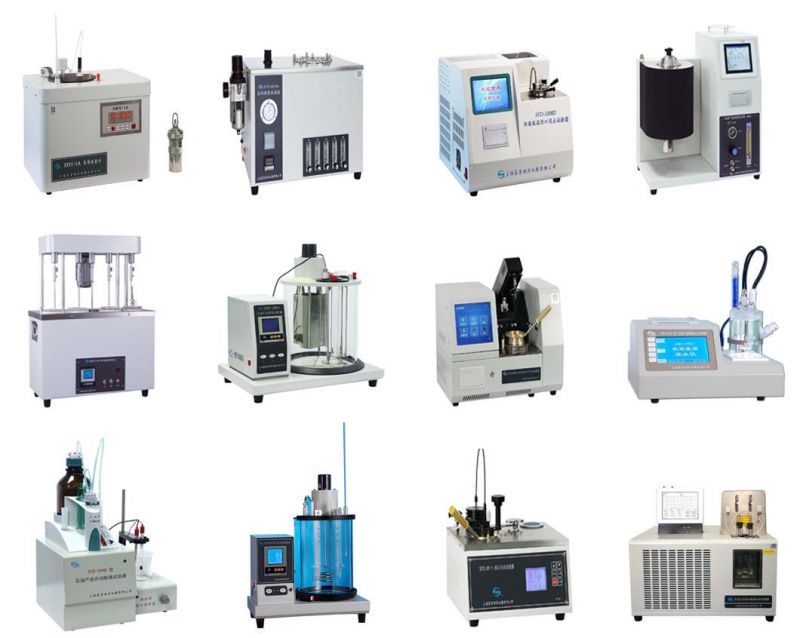

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji Geological Instrument Co.Ltd mainly develops and produces petroleum products analyzing instruments , highway detecting instruments, geological instruments and lab instruments. Shanghai Changji is with strong technical strength, large service team and sales, and strict quality manage system makes the market superior of Changji.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
