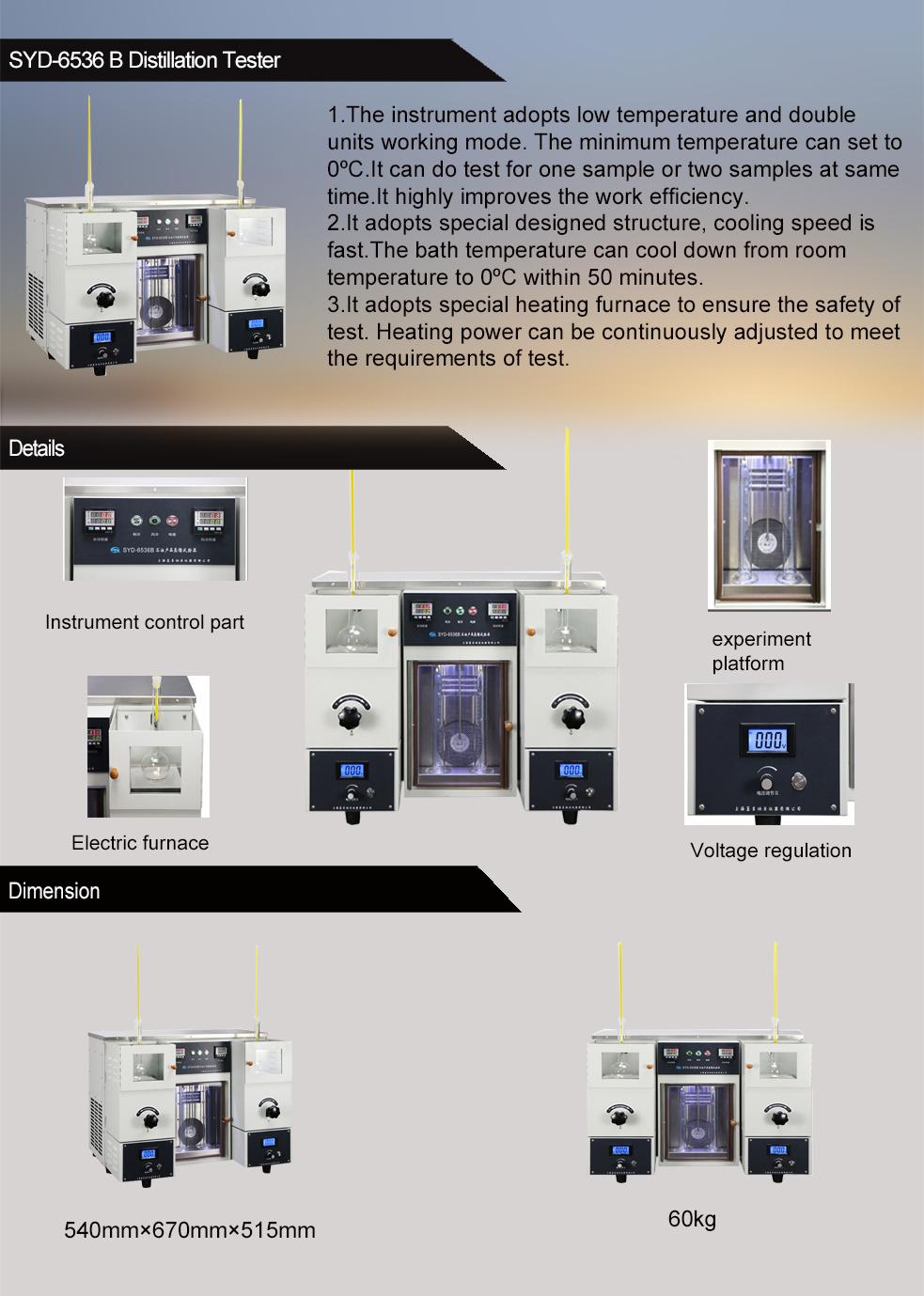

ASTM D86 SYD-6536B Low Temperature Double-unit Distillation Tester for Petroleum Product at Atmospheric Pressure
Shanghai Changji Geological Instrument Co., Ltd.- After-sales Service：Yes
- Warranty：1 YEAR
- Display：LED display
- Temperature controlrange：0ºC~60ºC
- Temp. Control Accuracy：±0.5ºC
- Heat adjustment：continuously
Base Info
- Model NO.：SYD-6536B
- Receiving cylinder：100ml
- Distillation flask：125ml
- Working Temperature：15~35ºC
- Power supply：AC (220±10%)V, 50Hz
- Power consumption：5400W
- OEM：Yes
- Transport Package：by Carton or by Wooden Case
- Specification：80*60*76cm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
The instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
This instrument is a kind of double-units instrument which the minimum temperature of the condenser pipe can reach 0ºC.It is an ideal distillation tester for petroleum products under low temperature condition
Main technical specifications
1.Power supply: AC(220±10%)V, 50Hz
2.Total power consumption: ≤5400W;
3.Receiving cylinder: 100ml, division value is 1ml.
4.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86
5.Thermometer:(-2~300)ºC and (-2~400)ºC. Division value 1ºC.
6.Flask support board: SiC, bore diameter is: φ32mm, φ38mm, φ50mm.
7.Temperature controller:
(1) Range: 0 ºC to 60 ºC
(2) Accuracy: ±0.5ºC
(3) Display: LED
8. Ambient temperature: 15ºC~35ºC
Relative humidity: ≤85%
9. Refrigerated compressor: New-type refrigeration compressor
Full set and technical documents

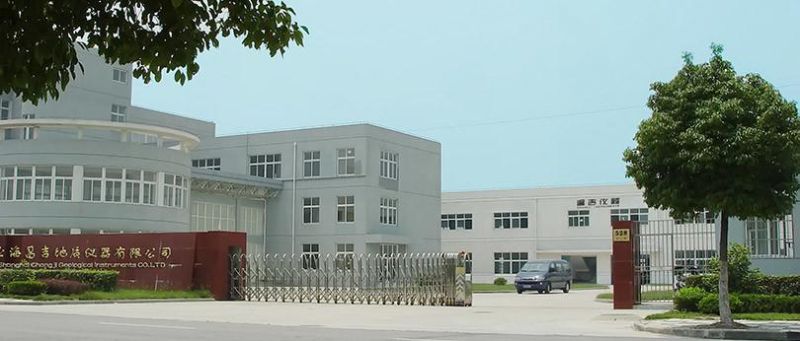

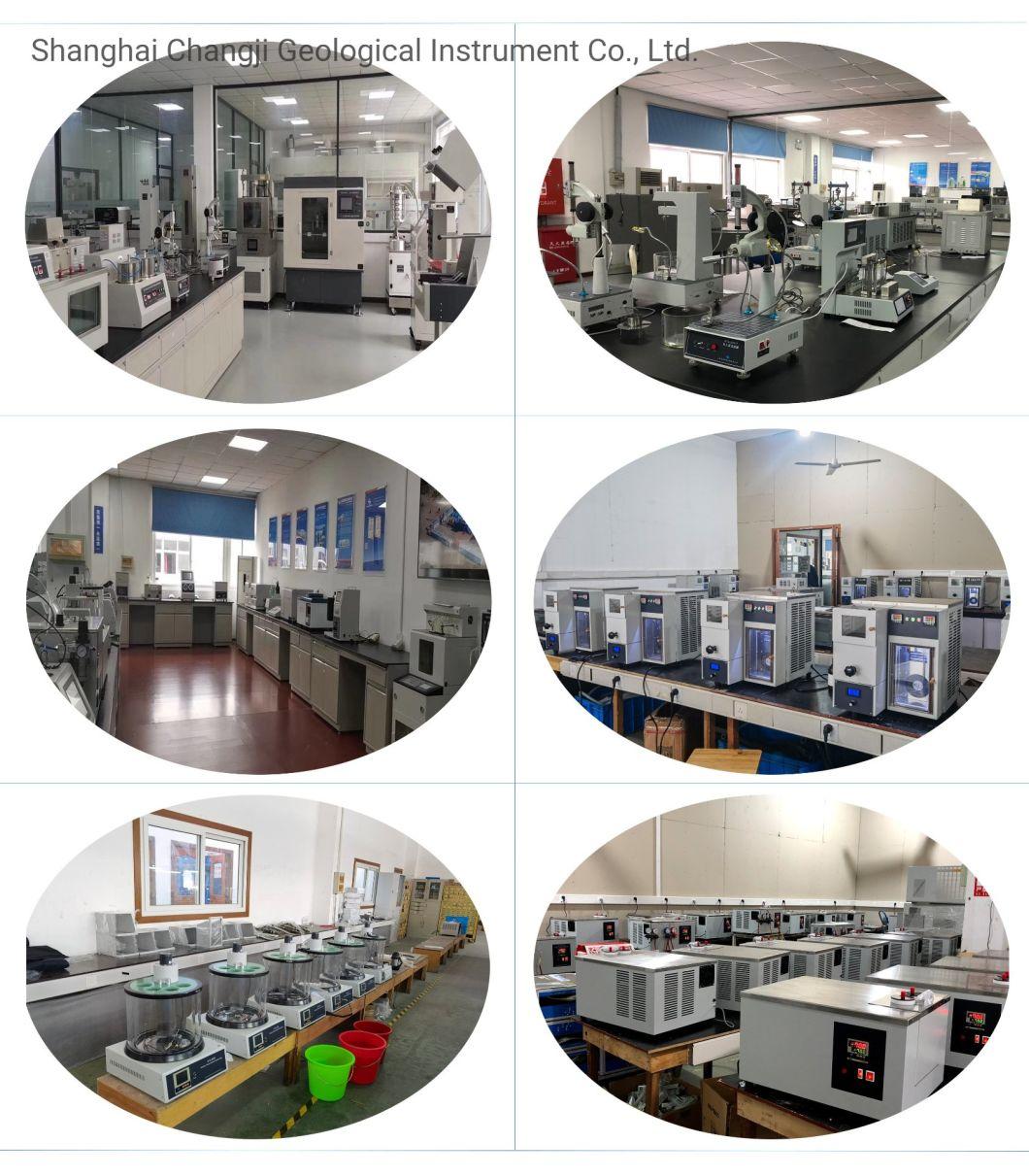

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

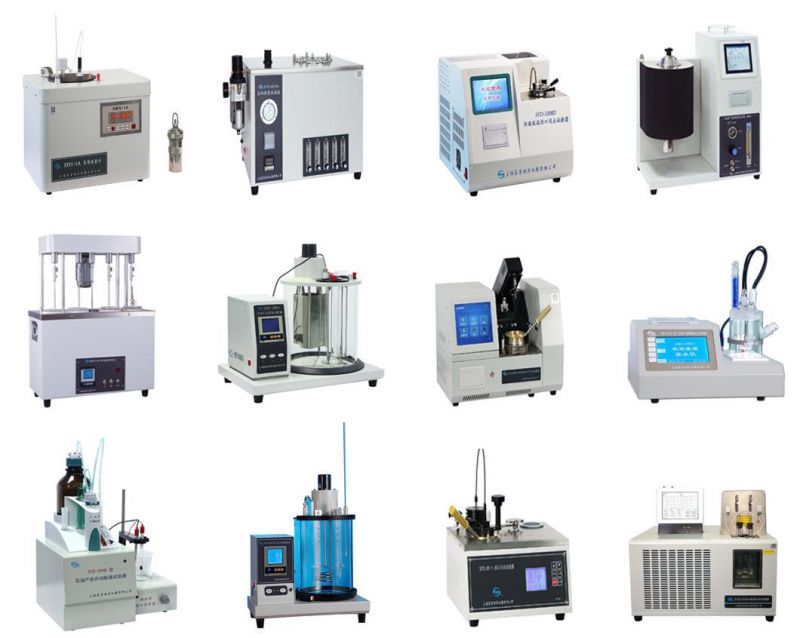

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
