• Model NO.：Relaytestar-806
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• AC Current Output：3 Routes, 40A, 450va Per Route
• AC Voltage Output：4 Routes, AC125V , 85va Per Route
• AC Output Accuracy：0.1%
• DC Current Output：3 Routes, ±10A, 200va Per Route
• DC Voltage Output：4 Routes, ±160V (220V,150W) Per Route
• DC Output Accuracy：0.2%
• Transport Package：Standard Export Wooden Package
• Specification：405× 300× 164
• Trademark：Relaytestar
• Origin：Hubei China
• HS Code：9030390000
• Production Capacity：100px,Week

Product Description

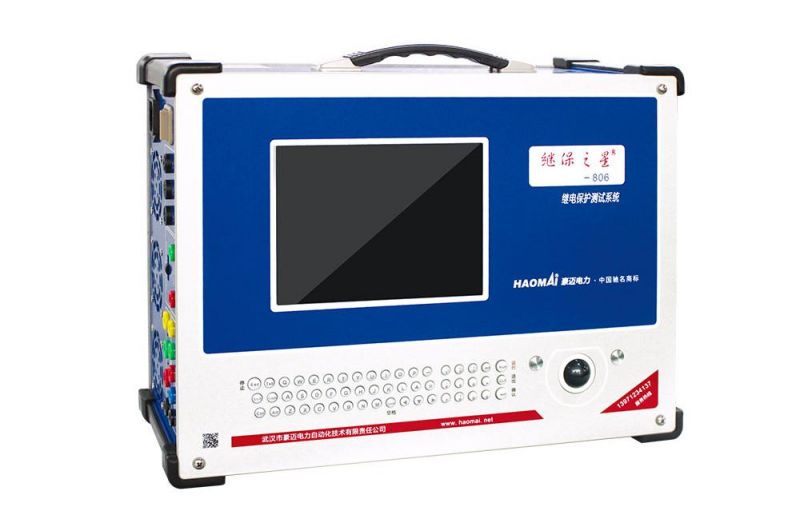

The RELAYSTAR-806 is universal and portable protection relay test set with three current outputs and four voltage outputs to test single and three phase protective relays.

The RELAYSTAR-806 comprises of three independent current output channels and four independent voltage output channels. This enables the unit to be used as a complete single-phase equipment (voltage, current, and phase angle between them) or, with channels synchronised, as a three phase current or four phase voltage generator from a single phase mains input.

The RELAYSTAR-806 also allows optional connection to a computer for either automatic testing of relays or control of the equipment using Windows compatible software.

Setting Range

3-Phase AC(L-N)

3x0…40A

1-Phase AC(LL-LN)

1x0…120A

DC(L-N)

3x…±10A

Power

3-Phase AC(L-N)

3x300VA At 40A

1-Phase AC(LL-LN)

1x1000VA At 120A

DC(L-N)

3x120VA At 10A

Accuracy

AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A)

DC: ±5mA(0~0.5A), ≤0.2% (0.5~10A)

Resolution

1mA



Setting Range

4-Phase AC(L-N)

4x0…150V

1-Phase AC(L-L)

1x0…300V

DC(L-N)

3x…±160V

Power

4-Phase AC(L-N)

4x70VA At 150V

1-Phase AC(L-L)

1x140VA At 300V

DC(L-N)

3x80VA At 160V

Accuracy

AC: ±2mV(0.2~2V), ≤0.1% (2~150V)

DC: ±10mV (0~5V), ≤0.2% (5~160V)

Resolution

1mV



Auxiliary DCFrequency

Range: 0~1200Hz

Accuracy:<1mhz(0~65hz),<10mhz(65~450hz),<20mhz(450~1200hz)<>

Resolution: 0.001Hz

Phase

Range: -360° ~+360°

Accuracy: 0.1°

Resolution: 0.01°

Harmonic

Superposition Order: 2~24 Times

Distortion: ≤0.5%

<1mhz(0~65hz),<10mhz(65~450hz),<20mhz(450~1200hz)<>



EMC

The Product Adheres To The Electromagnetic Compatibility (EMC) Directive 2004/108/EC(CE Conform)

IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3

Safety

The Product Adheres To The Low Voltage Directive 2006/95/EC(CE Conform).

IEC 61010-1

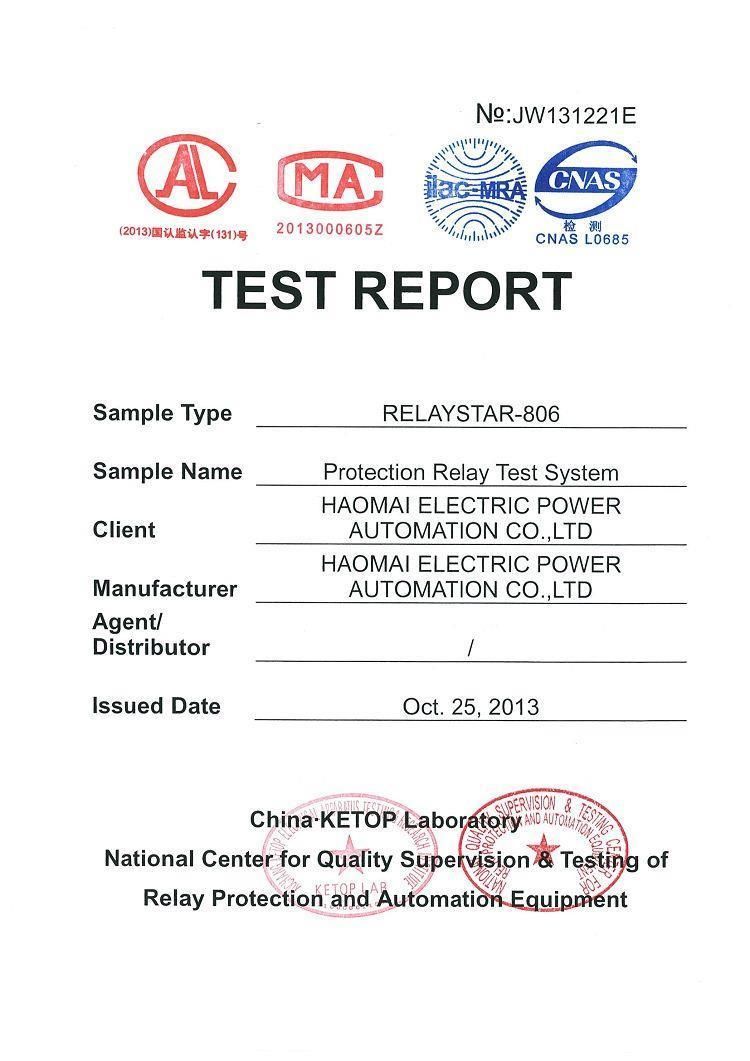

3-phase Protection Relay Test Set RELAYSTAR-806 passed the Type Test in China KETOP laboratory accredited under ISO/IEC 17025.
