• Model NO.：YT-LA1000
• Elongation Accuracy：0.01mm
• Tensile Velocity：1.0~480(Can Be Adjusted Digitally) mm,Min
• Sampler Length：35-300(Can Be Adjusted Digitally) mm
• Sampler Width：15,25,50 (Can Be Ordered) mm
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Dimension：400(L)*320(W)*990(H) mm
• Net Weight：Net Weight
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China

Basic Info.

Model NO. YT-LA1000 Elongation Accuracy 0.01mm Tensile Velocity 1.0~480(Can Be Adjusted Digitally) mm/Min Sampler Length 35-300(Can Be Adjusted Digitally) mm Sampler Width 15,25,50 (Can Be Ordered) mm Print Built-in Thermal Printer Communication Interface RS232 Dimension 400(L)*320(W)*990(H) mm Net Weight Net Weight Transport Package Wooden Box Trademark YANTE Origin Hangzhou China

Product Description

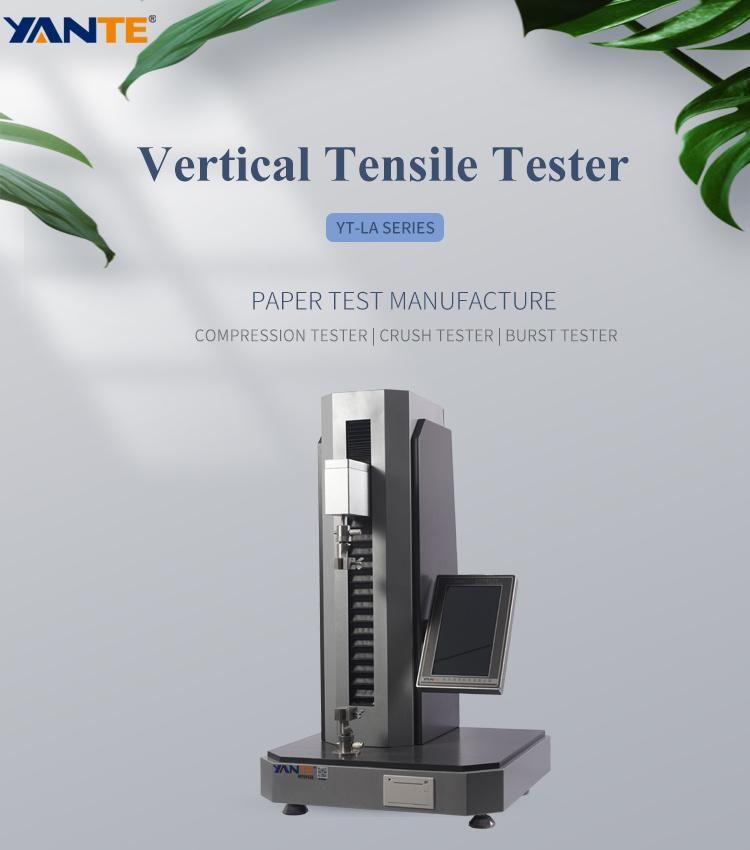

Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.


Application Range

Paper, cardboard; aluminum foil, aluminum-plastic tape;
Plastic film and other non-metallic materials.
Non-woven fabric

Product Function
Measure tensile and tensile strength
Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus
Measure the peel strength of adhesive tape

Product Features

Closed-loop servo stepping motor, ball screw and three guide shafts provide stable and accurate transmission.
A 10-inch color LCD touch screen is used to display the stretching curve in real time.
The ARM processor and 24-bit analog-to-digital converter improve the response speed of the instrument and ensure the real-time performance of the measurement.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).


Supporting Accessories And Consumable


No.	Accessory name	Model	Picture	Standard	Optional
1	Standard Distance Cutter	YT-Q15			√
2	Punch Standard Distance Cutter	YT-CQ15			√
3	Adjustable Paper Cutter	YT-TJD300			√

Executive Standard
 GB/T 12914,GB/T 2792,GB/T 24218.3,GB/T 1040,TAPPI  T 494


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	10 inch color touch screen
4	Measuring range	(0.15~30)N /(1~300)N /(3~1000)N
5	Display resolution	0.001N(L30A) / 0.01N(L300A) / 0.01N(L1000A)
6	Indication error	±0.5%(Range5%~100%)
7	Work stroke	350mm / 900mm(customize)
8	Sample width	15mm(25mm,50mmOptional)
9	Stretching speed	(1~500)mm/min(Can be adjusted arbitrarily)
10	Print	Built-in thermal printer
11	Communication Interface	RS232(Default) (USB, WIFI optional)
12	Dimension	550 ×530 ×900 mm
13	Net Weight	95kg around
