• Model NO.：YT-RRY1000
• Communication Interface：RS232
• Dimension：375(L)*260W)*300(H)mm
• Net Weight：17.5kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-RRY1000 Communication Interface RS232 Dimension 375(L)*260W)*300(H)mm Net Weight 17.5kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

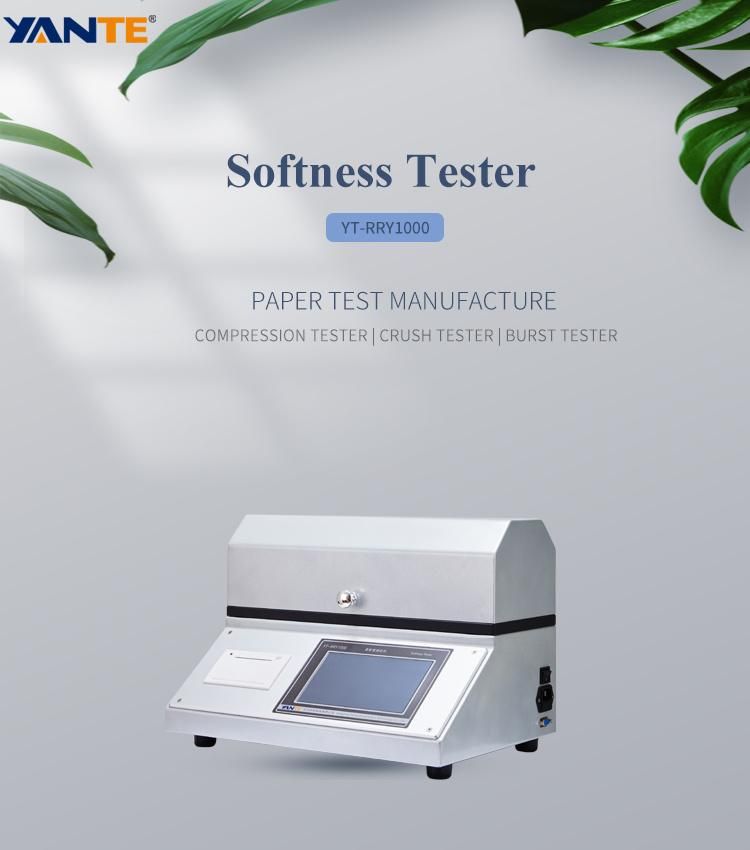

Softness Tester is a new type of high-precision intelligent tester carefully and rationally designed with modern mechanical design concepts and computer processing technology. It is an ideal experimental equipment for papermaking, scientific research and quality inspection industries and departments.


Application Range

Toilet paper, tobacco sheet, fiber fabric, non-woven fabric, cloth, film, etc.



Product Features

One-click test, easy to understand
ARM processor improves the response speed of the instrument, and calculates data accurately and quickly
Real-time display of pressure curve
Sudden power failure data saving function, the data before the power failure is retained after the power is turned on and the test can be continued
Software and hardware over-range to ensure the safety of the sensor
Communication with computer software (purchase separately)


Standards

GB/T8942,QB/T1060,ISO 534


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	(10~1000)mN
5	Indication Resolution	0.1mN
6	Indication error	±1%(Range 5%~100%)
7	Total probe stroke	(12±0.5)mm
8	Probe indentation depth	8mm
9	Specimen table gap width	5/6.35/10/20mm (Four gears adjustable)
10	Slit parallelism error	≤0.05mm
11	Probe centering error	≤0.05mm
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	425×290×300 mm
15	Net Weight	20kg around
