GM Series Megger Digital Megohmmeter Digital 5kv 10kv 20kv Insulation Resistance Tester Best price
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Rating test voltage：50V, 100V, 250V, 500V, 1.0kV, 2.5kV, 5.0kV
- Maxcapacity：5kv
- Control：Manual Control
- Power：Electronic
Base Info
- Model NO.：GM-5kV
- Usage：Auto Testing Machine
- Accuracy Grade：5% max
- First half range basic error：5%Rx + 1d
- Short circuit current：About 5mA
- Output voltage error：5 %
- Dimensions and N.W.：320*230*270mm, 4.5kg
- Power supply：14.8V lithium battery
- Transport Package：Wooden Case
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- HS Code：9030332000
- Production Capacity：1200sets,Year
Description
Shipping and packaging

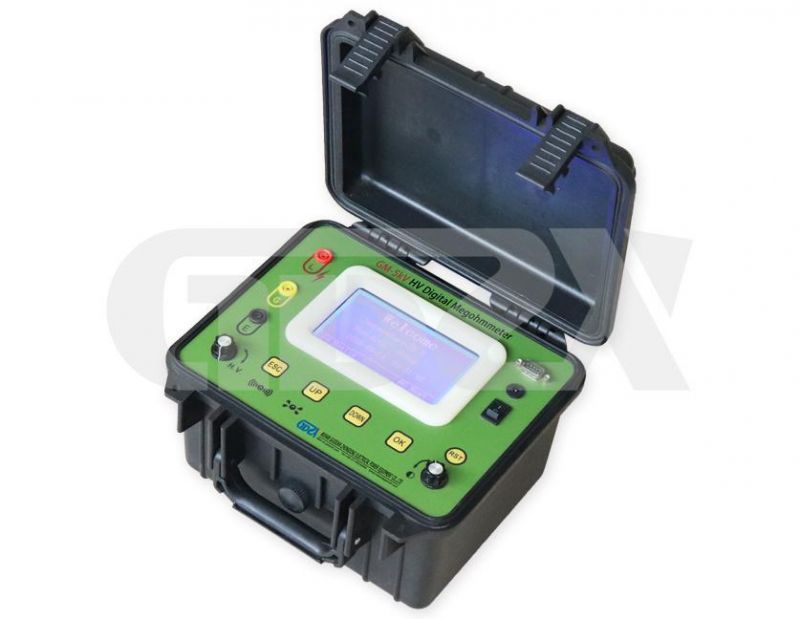

Device display
About GDZX
Features:
1. Microcomputer control, menu operation, LCD display, stable performance
2. Suitable for measuring in strong electromagnetic interference environment.
3. Wider measuring range, several voltage output gears.
4. Output voltage is continuous and adjustable
5. Auto measure R15, R60, R600, auto calculate DAR, PI
6. Strong load capacity, short-circuit current about 5mA.
7. Measuring range up to 0 ~ 10TΩ, auto switching range.
8. The analog bar pointer & digital display, clear and accurate
9. Test time display at any time, buzzer beeps every 15 seconds
10. Auto discharge high voltage within 30 seconds after test
11. Auto measure ambient temperature, air humidity, date and time.
12. Storage capacity up to 60 records, data may not be lost for 20 years.
13. RS232 serial interface
14. Built-in Micro-printer
15. Auto remind power off when no operation for 5 minutes
16. Perfect protection, high reliability
