Phantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment

Wuhan GDZX Power Equipment Co., Ltd.
  • Warranty：1 year
  • Control：Computer Control
  • Display：Digital
  • Keyword：Standard Power Source
  • Power factor：0.50%
  • Transport Package：Wooden Case

Base Info

  • Model NO.：ZX5050
  • Specification：Universal Testing Machine
  • Trademark：GDZX
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：1200sets,Year

Description

Phantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment

       ZX5050 High Precise Three Phase Programmable Testing Source is an instrument using embedded system, large TFT LCD and touch screen, CPLD chip and high precision components, portable and widely used in electric energy metering industry, electrical laboratory and other relevant departments

Phantom Loads High Precise Three Phase Programmable Energy meter Testing EquipmentPhantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment

Technical Indicators

1. Output:

1) Voltage:10~450V(built-in gears: 57.7,100,220V,380V, Maximum output power: 20VA
2) Current: 0.001~60A( built-in gears: 0.2,1,5,20A,50A), max output power 40VA for 50A, 20VA for others

3) Frequency output: 45-65Hz
4) Phase output: 0~359.99°

5) Stability: voltage current 0.02%(2Min)
6) distortion: voltage current ≤0.5%(Non capacitive load)

ItemOutput and display accuracyResolution
Voltage0.50%4 significant digits
Current0.50%4 significant digits
Frequency0.02Hz0.001Hz
Phase0.5°0.01°
Power factor0.50%0.001
Active power0.50%4 significant digits
Reactive power1%4 significant digits
Apparent power0.50%4 significant digits

> Common output regulation test point:

1) Voltage test point: 90%,100%,110%,120%

2) Current test point: 1%,5%,10%,20%,50%,100%,120%

3) Phase: 0.5L,0.86L,1.0,0.86C,0.5C

4) Three phase voltage, current amplitude adjustable, fineness: 10%,1%,0.1%,0.01%, range to 125%

5) Phase and power factor of three phase voltage, current also adjustable, fineness: 10°1°0.1° 0.01°

6) Phase position of UB,UC to UA: adjustable

7) Frequency is adjustable together with three phase voltage and current: 5Hz,1Hz,0.1Hz,0.01Hz

> Power supply: Single phase AC 182-262V, 50/60Hz

> Size: 500*600*178mm; Weight 35 KG

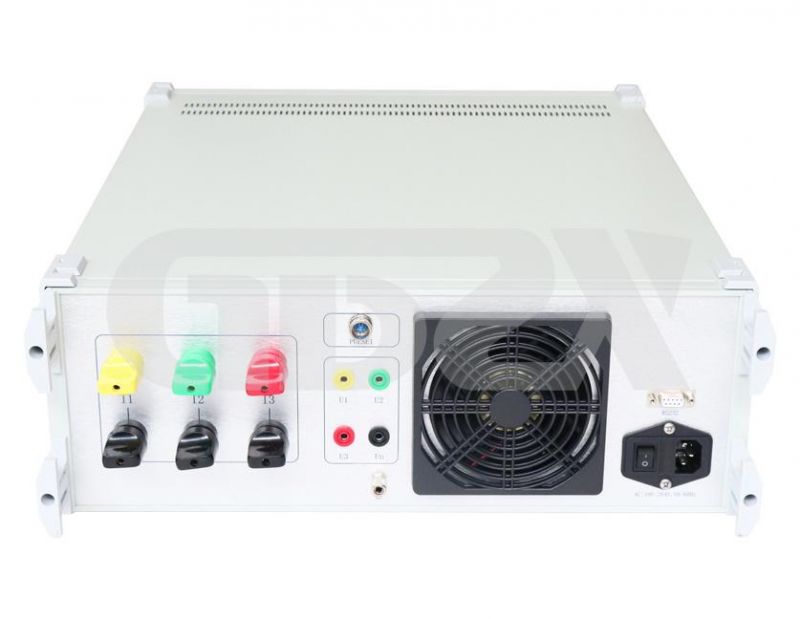

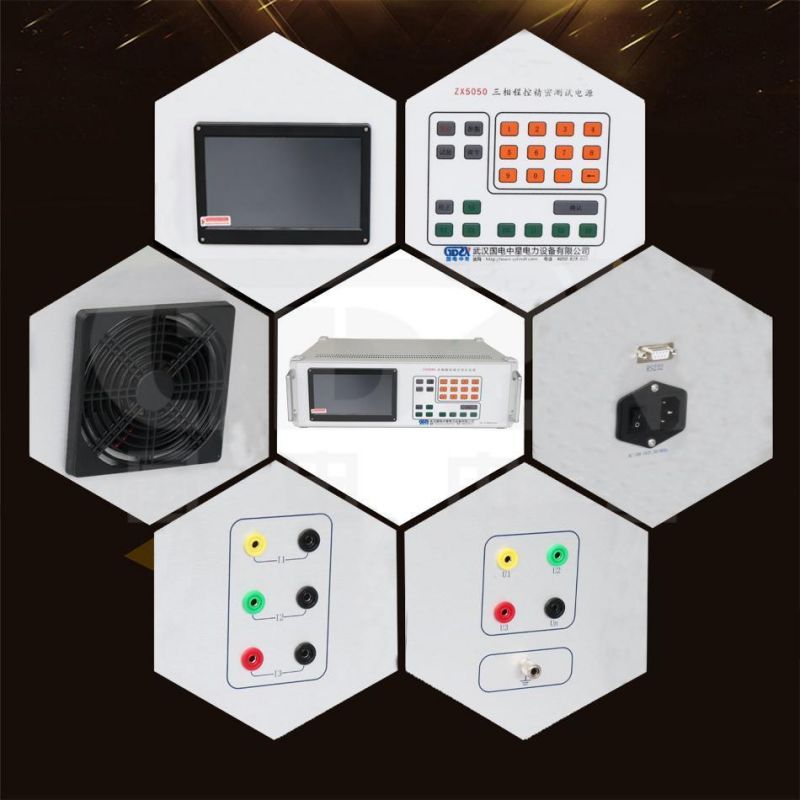

Product pictures
Phantom Loads High Precise Three Phase Programmable Energy meter Testing EquipmentPhantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment

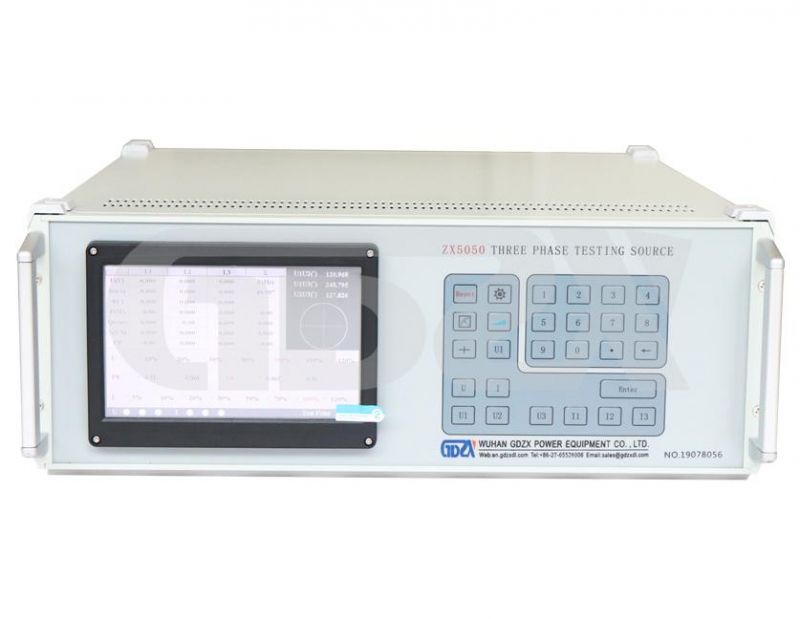

Device display
Phantom Loads High Precise Three Phase Programmable Energy meter Testing EquipmentPhantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment
About GDZX
       Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Phantom Loads High Precise Three Phase Programmable Energy meter Testing EquipmentPhantom Loads High Precise Three Phase Programmable Energy meter Testing EquipmentPhantom Loads High Precise Three Phase Programmable Energy meter Testing EquipmentPhantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment

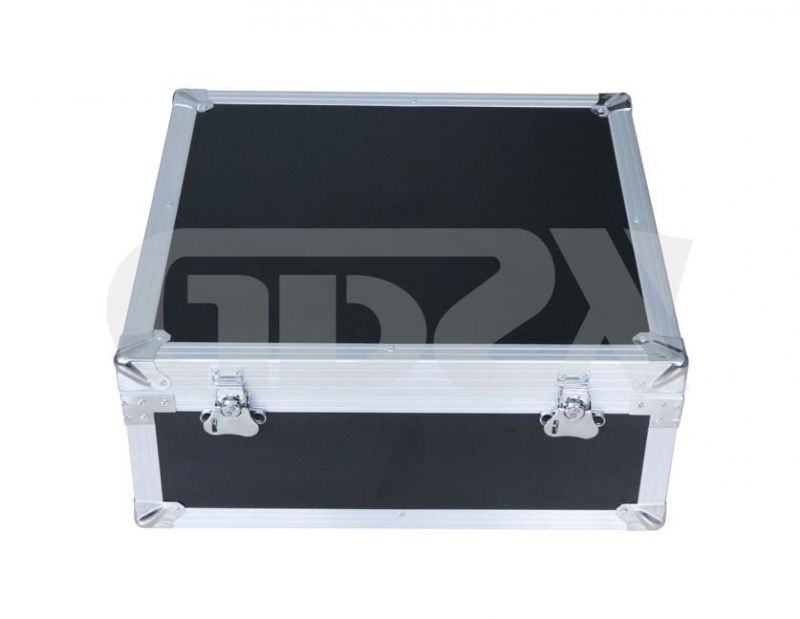

Shipping and packaging
Phantom Loads High Precise Three Phase Programmable Energy meter Testing Equipment
Features

1) Design with touch panel and mask button, massive information to see and simple to use

2) Built-in energy meter which can indicate parameters like voltage, current, frequency, phase, active power, reactive power, apparent power, power factor

3) Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

4) Three phase rated current rated voltage can be preset by users

5) Multiple choose of voltage, current, phase testing point

6) With RS232 communication interface
