• Model NO.：HJ-2
• Weight：0-100Kg
• Power Source：AC220V
• Vacuum：-90-0kpa
• Precision：Level 1
• Dimensions：460mm(L)X360mm(B)X530mm(H)
• Net Weight：15kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-2 Weight 0-100Kg Power Source AC220V Vacuum -90-0kpa Precision Level 1 Dimensions 460mm(L)X360mm(B)X530mm(H) Net Weight 15kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

 It is professionally applicable to the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products. It also could be used to the determination of seal performance of specimens after falling and compression tests.

This instrument is the best value for food, beverage, pharmacy and commodity industries. It carries the standard of GB/T 15171 -1994 , ASTM D 3078 -94.

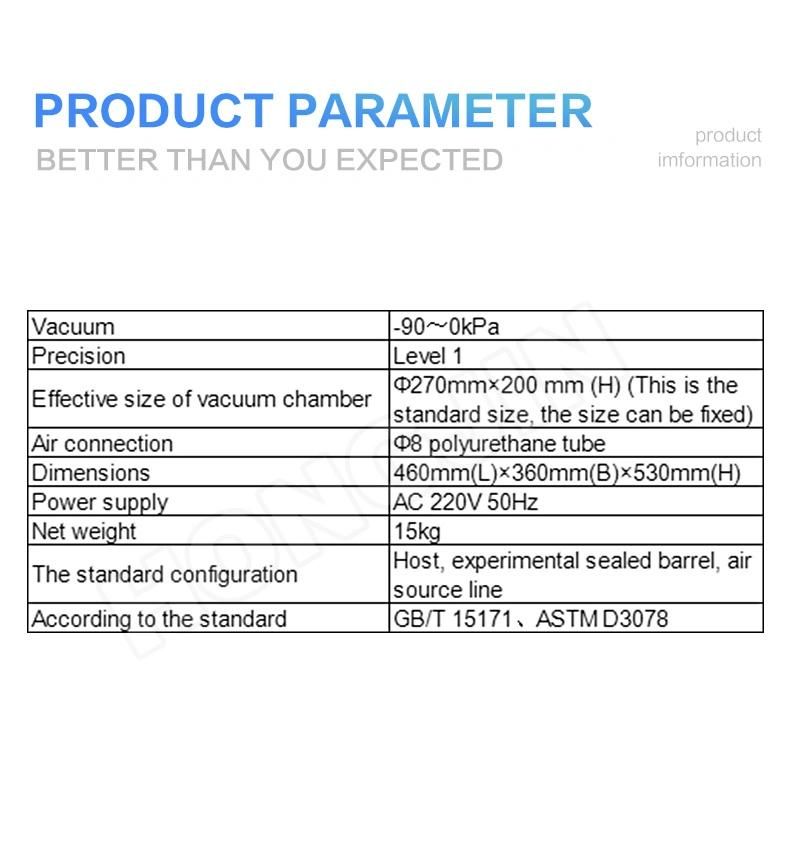

Vacuum	-90~0kPa
Precision	Level 1
Effective size of vacuum chamber	Φ270mm×200 mm (H) (This is the standard size,  the size can be fixed)
Air connection	Φ8 polyurethane tube
Dimensions	460mm(L)×360mm(B)×530mm(H)
Power supply	AC 220V 50Hz
Net weight	15kg
The standard configuration	Host, experimental sealed barrel, air source line
According to the standard	GB/T 15171,ASTM D3078

Main Features

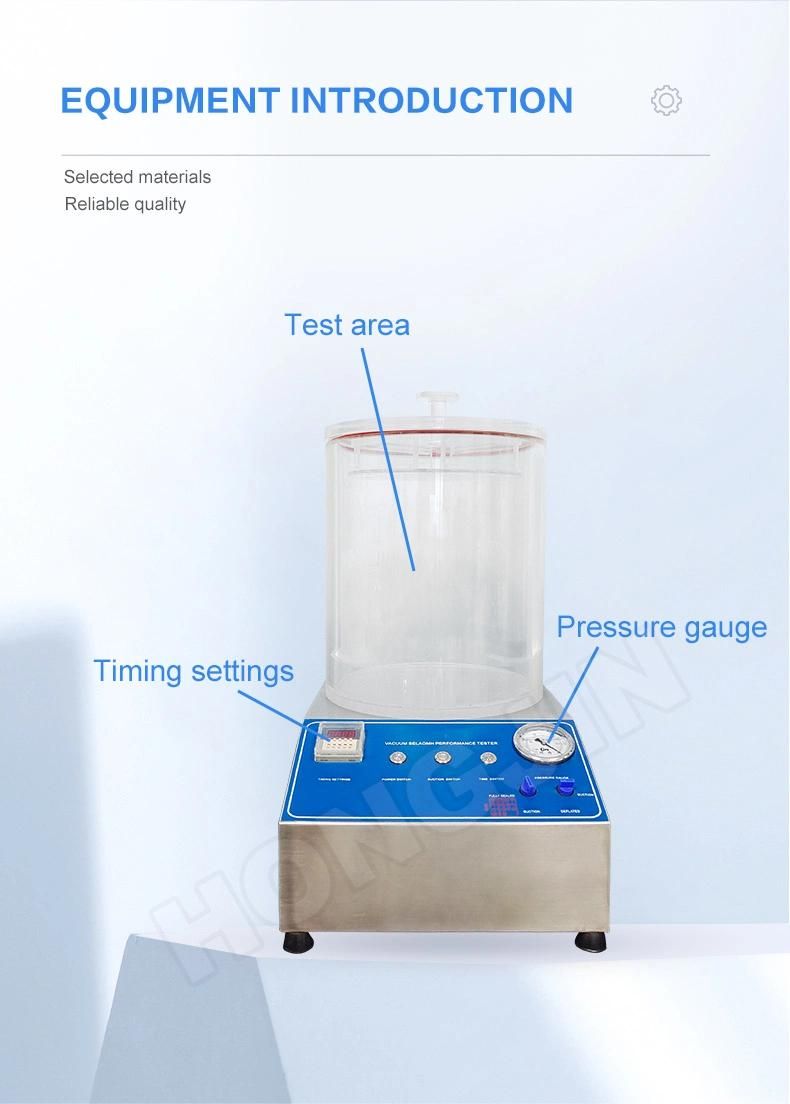

1.LED digital control, laboratory process automation
2. Set pressure and hold time
3.PVC operation panel, film button, the operation more convenient

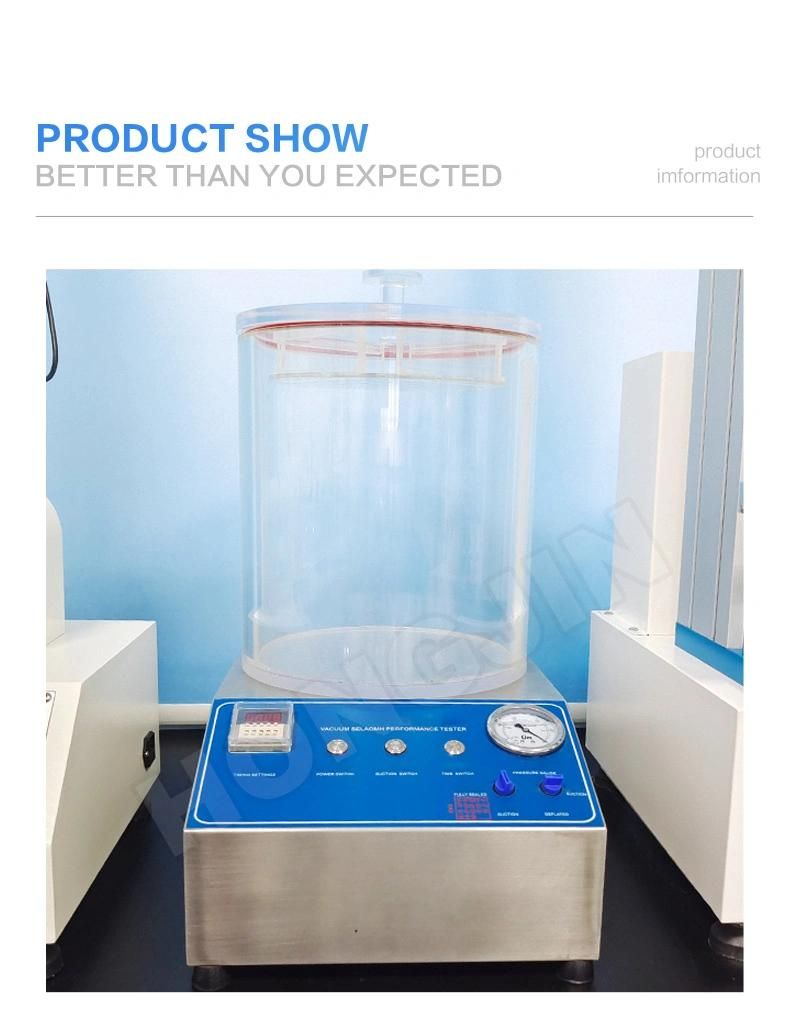

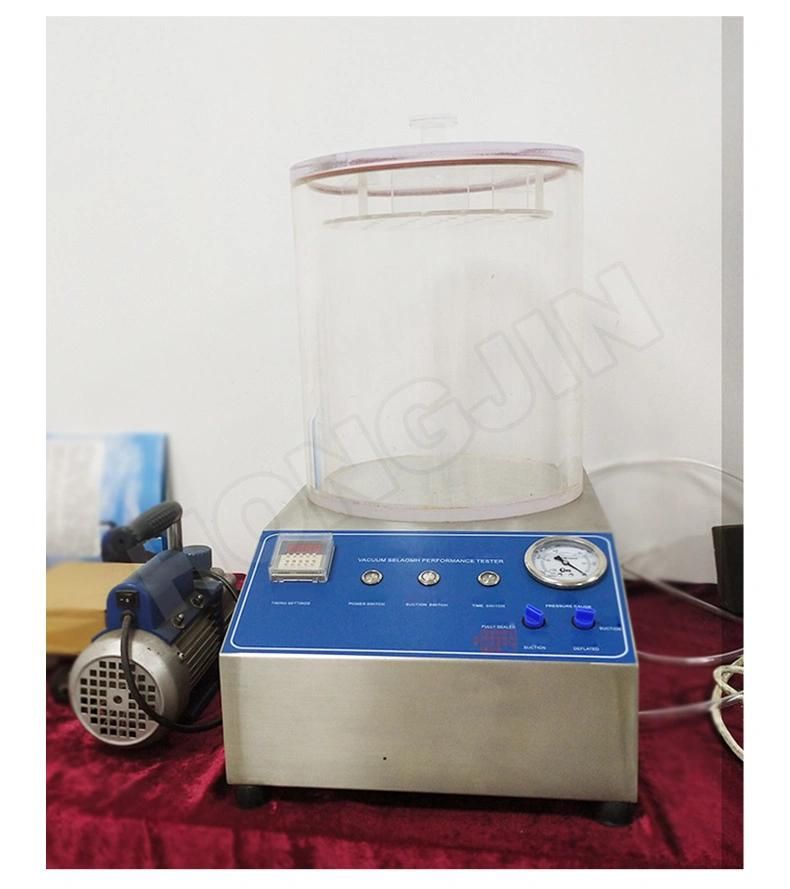

4. High-quality thickened plexiglass sealed drum, wall thickness 15mm
5. Digital Preset Test Vacuum and Vacuum Hold Time

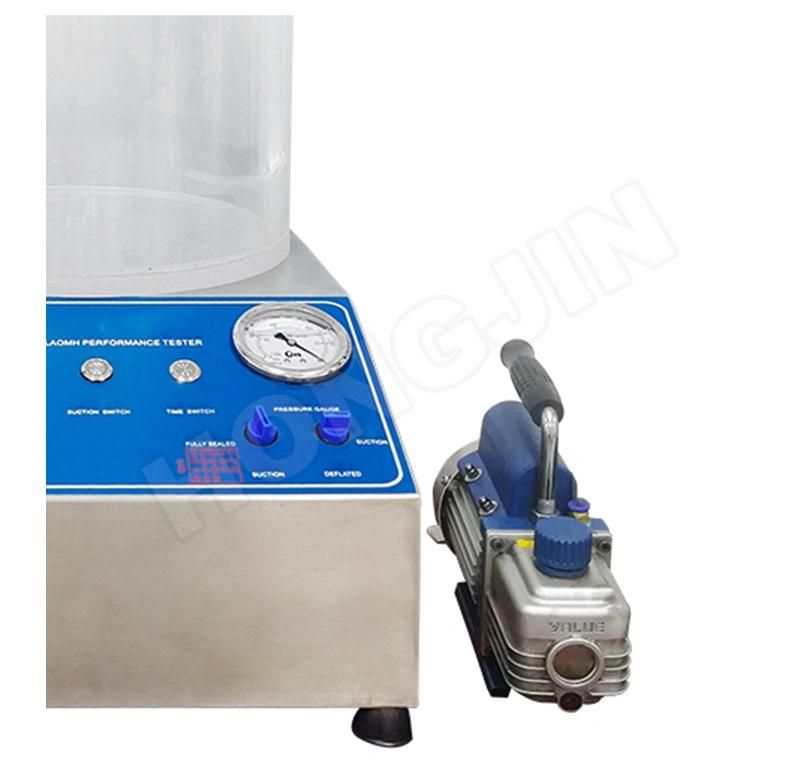

6. Precise pneumatic components, superior sealing performance
7. Automatic constant air pressure , without manual operation

Test principle:
Vacuuming the vacuum chamber, so that the sample immersed in water to produce internal and external pressure difference, observe the sample outside the gas outside the situation, in order to determine the sealing performance of the sample; through the vacuum chamber vacuum, so that the sample to produce internal and external pressure Poor, observed specimen expansion and release of the sample after the recovery of the shape of the sample, in order to determine the sealing performance of the sample.
