Programmable Environmental Salt Spray Corrosion Resistance Test Chamber
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Internal Dimension：600*450*400mm
- Saline Test：Nss Acss
Base Info
- Model NO.：SH-60
- Corrosion Test：Cass
- Spray Volume：1.0~2.0ml ,80cm2 ,H
- Saline Concentration：5% Concentration of Nacl
- Compressed Air Pressure：1.0~6.0 (Kgf)
- Meet Standard：ASTM B117
- Control Method：Programmable
- Transport Package：Wooden Case
- Specification：108 L
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：100 Sets,Month
Description
Overview
Product Description

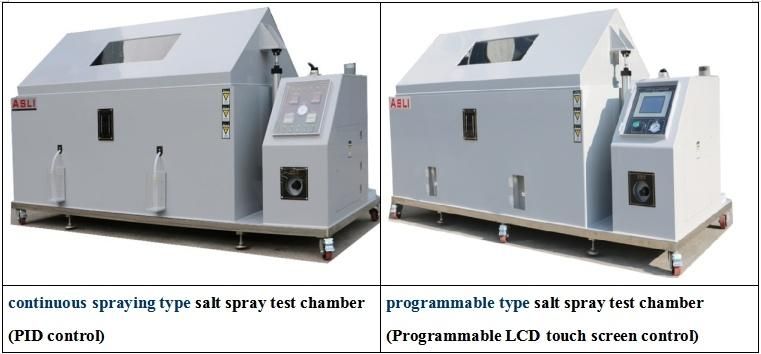

Salt spray testing machine is divided into two control methods, one is electronic continuous spray, the other is programmable LCD touch screen control
Product Parameterssalt spray resistance test chamber Technical Parameters Model SH-60 SH-90 SH-120 SH-160 SH-200 Internal Dimension
W*H*D (mm) 600*450*400 900*600*500 1200*800*500 1600*800*500 2000*1000*500 External Dimension
W*H*D (mm) 1100*600*1200 1400*950*1200 1900*1300*1400 2300*1300*1400 2700*1500*1500 Lab Temperature Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree Pressure Bucket
Temperature Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree Lab Capacity(L) 110 270 500 800 1500 Saline Capacity(L) 15 25 40 40 40 Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O Compressed Air
Pressure(Kgf) 1.0~6.0 Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) Spray Form Continuous Spraying or Programmable Spraying Power AC220V 1phase 3 lines15A Weight(Kg) 65 80 120 160 200
salt spray corrosion resistance test chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1ºC
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2

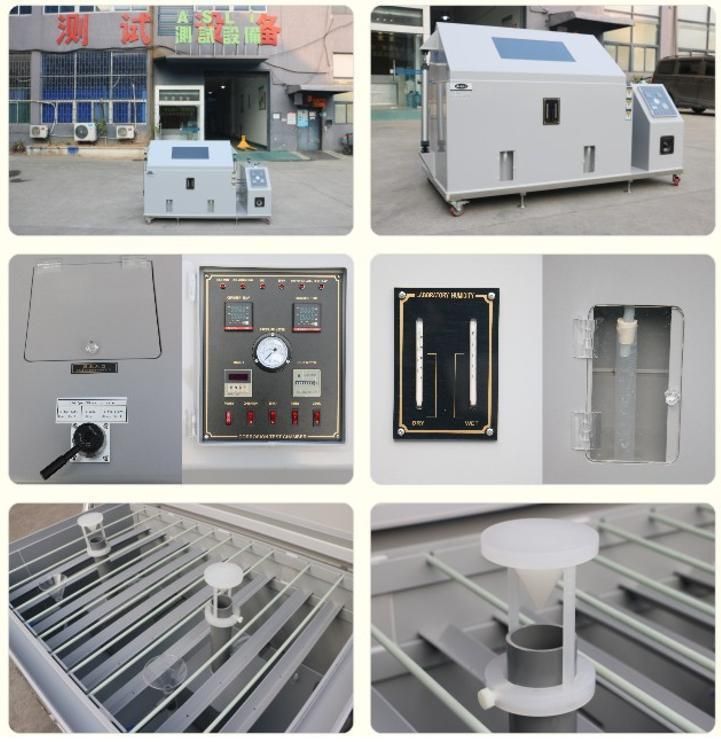

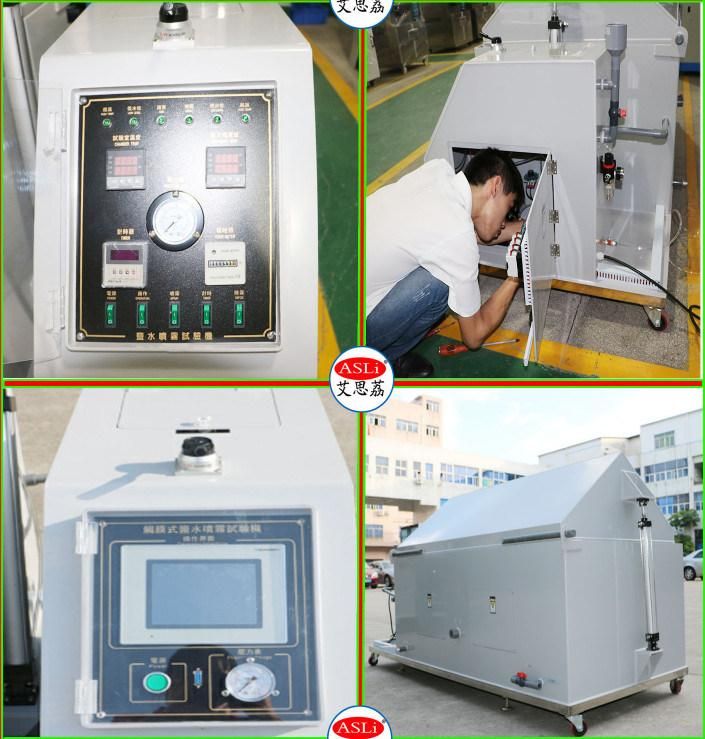

Detailed Photos

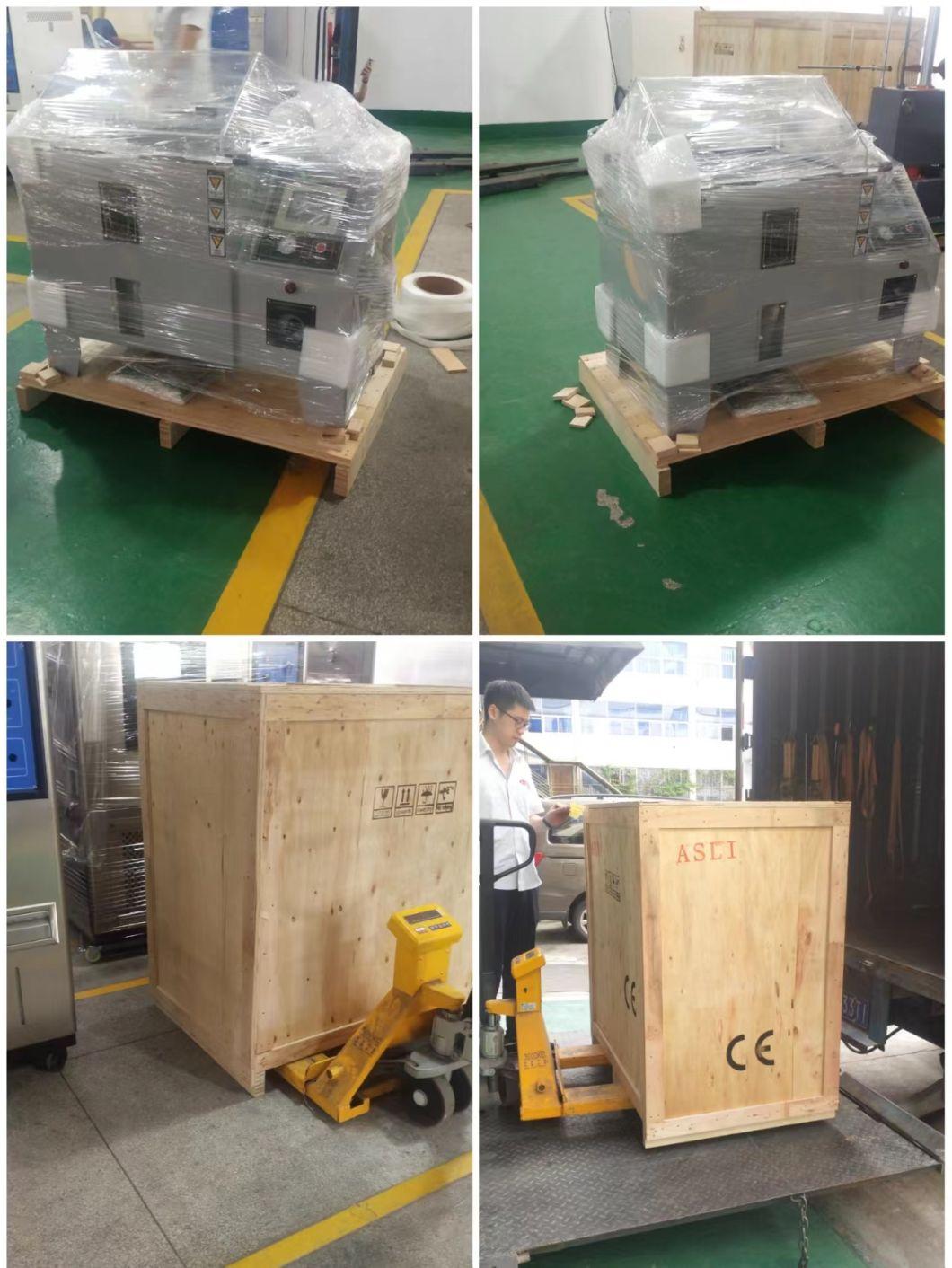

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 26 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Programmable Environmental Salt Spray Corrosion Resistance Test Chamber is our star products , and we had obtained the CE certification for this machine.
Application:
Programmable Environmental Salt Spray Corrosion Resistance Test Chamber is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment.Salt spray testing machine is divided into two control methods, one is electronic continuous spray, the other is programmable LCD touch screen control
Product Parameterssalt spray resistance test chamber Technical Parameters W*H*D (mm)
W*H*D (mm)
Temperature
Pressure(Kgf)
salt spray corrosion resistance test chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1ºC
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2
Detailed Photos
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 26 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Programmable Environmental Salt Spray Corrosion Resistance Test Chamber is our star products , and we had obtained the CE certification for this machine.
