• Model NO.：th series
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets,Month

HL -150
(A~F)HL -225
(A~F)HL -408
(A~F)HL -800
(A~F)HL -1000
(A~F)Internal Dimensions
WxHxD (mm)400x500
x400500x60
0x500600x750
x500600x850
x8001000x1000
x8001000x1000
x1000External Dimensions
WxHxD (mm)950x1650
x9501050x1750
x10501200x1900
x11501200x1950
x13501600x2000
x14501600x2100
x1450Temperature RangeLow Temperature(A:25ºC  B:0ºC  C:-20ºC D:-40ºC  E:-60ºC  F:-70ºC)
High Temperature 150ºCAnalytic Accuracy/Distribution Uniformity of Temperature0.1ºC /±2.0ºCControl Accuracy
of Temperature ±0.5ºCTemperature Rising
/ Falling VelocityTemperature rising approx.  0.1~3.0ºC/min ;
temperature falling approx.  0.1~1.5ºC/min;
( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition)Internal and External
MaterialMaterial of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials Cooling SystemWind cooled or water cooled,single segment compressor for -40ºC, double segment compressor for -70ºCProtection DevicesFuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning systemOptional AccessoriesInner door with operation hole(Optional), Recorder(optional),DehumidifierCompressorFrench Tecumseh Brand,Germany Bizer BrandPowerAC 220V, 1∮ 3  Lines,50/60HZ ;    AC 380V ,3∮ 5 Lines,50/60HZApprox. Weight (Kg)150180250320400450

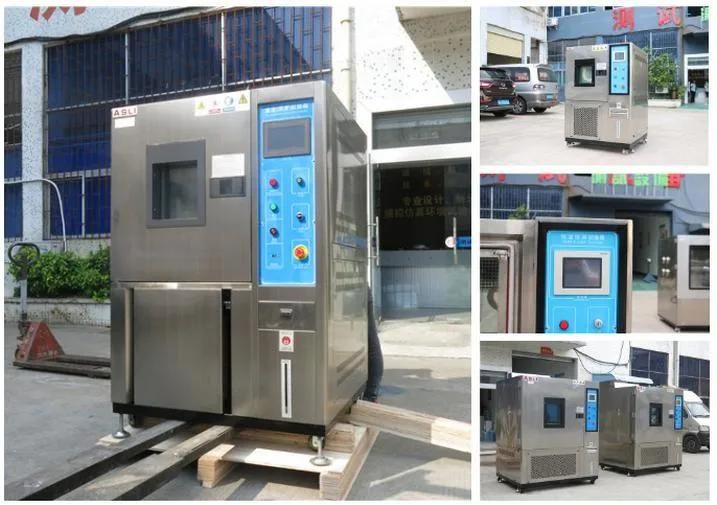

Environmental Test Chamber features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2.  Rectangular double-paned viewing window for observation of sample under test,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A
6.  LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing function

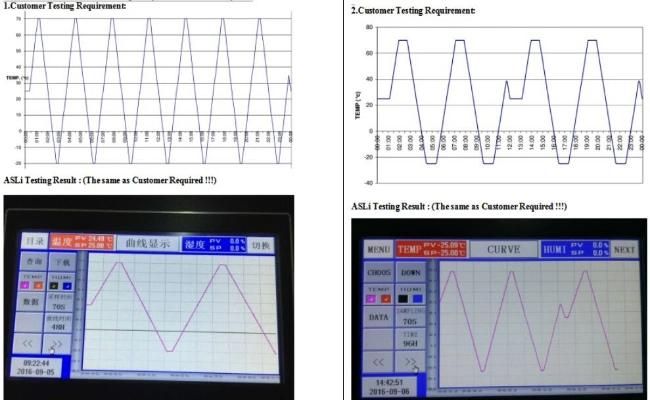

8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.

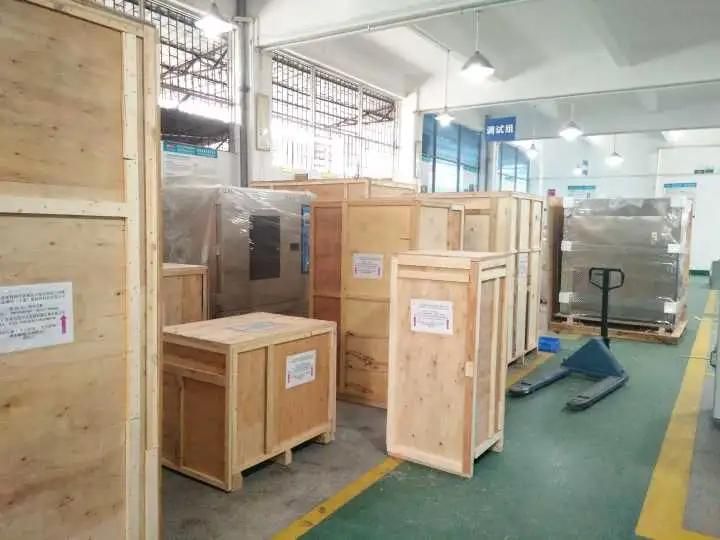

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK



ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Temperature Alternating Test Chamber,High Low Temperature Environmental Test Equipment, Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc

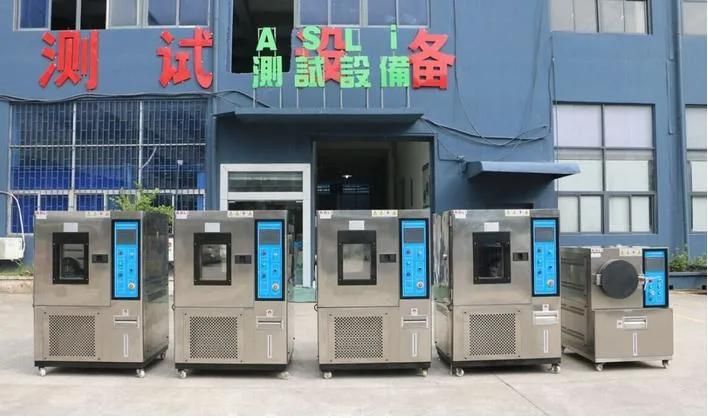

Customer Visit US
thermal humidity automated temperature control chamber for PCB/LED
