• Model NO.：YICT-800
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：N,a
• Inner Size：1000*1000*800mm
• External Size：2100*2280*1950mm
• Volume：800 Liters
• Temp. Range：-70degrees---+150degrees(Ks)
• Temp. Rapid Change Range：-70degrees; -50degrs--+85degrs
• Heating&Cooling Rate：3 Degrees,Min, 5degrees,Min, etc.
• Temp. Fluctuation：+,- 2 Degree
• Temp. Uniformity：+,-1.5degrees
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Transport Package：Strong Wood Carton
• Specification：SGS, TUV Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：10 Sets,Month

ModelYICT-225YICT-306YICT-408YICT800YICT-1000Inner chamber size w×h×d(cm)50×75×6060×85×6050×85×80100×100×80100×100×100 Exterior chamber size w×h×d(cm)Depends on inner chamber sizeTesting temperature range -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR)Fast change temperature range -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR)Heating-up&Cooling-down speed3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear)PerformanceTemp.fluctuation±2.0ºCTemp.uniformity±1.5ºCTemp.resolution0.01ºCHeating-up time -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35minCooling-down time +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35minMaterialExterior chamber materialCold-rolled steel+Powder coatingInterior chamber materialSUS#304 Stainless steelInsulationPU fiberglass woolSystemWind circulationCooling fanHeating systemSUS#Stainless steel high-speed heaterRefrigeration systemImported tecumseh compressor+fin type evaporator+air(water)cooling systemOther componentsMulti-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable)Safety protection deviceOver-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lampPower supplyAC 3phase380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome
Customization service is available, we can set & design equipments according to your own specific requirements!

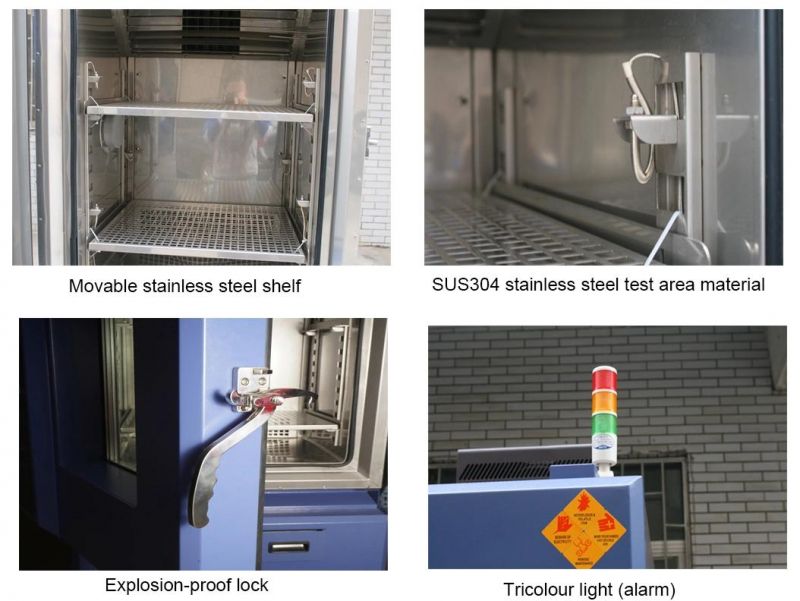

Product detailes:



Company profile










In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!If you want to know more about water resisitance test chamber,please feel free to contact us.
