High Precision Digital Thickness Tester/Testing Equipment for Paper/Tissue/Cardboard/Film/Fabric
Hangzhou Yante Science and Technology Co., Ltd.- Warranty:1 Year
- Power Supply:AC (100~240)V
- Measuring Range:0-5mm
- Resolution:0.001 mm
- Communication Interface:RS232 Interface
- Print:Built-in Thermal Printer
Base Info
- Model NO.:YT-H4E
- Dimension:320(L)*310(W)*400(H)mm
- Net Weight:26.5kg
- Transport Package:Wooden Box
- Trademark:YANTE
- Origin:Hangzhou China
- HS Code:9024800000
Description
Basic Info.
Model NO. YT-H4E Dimension 320(L)*310(W)*400(H)mm Net Weight 26.5kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000Product Description

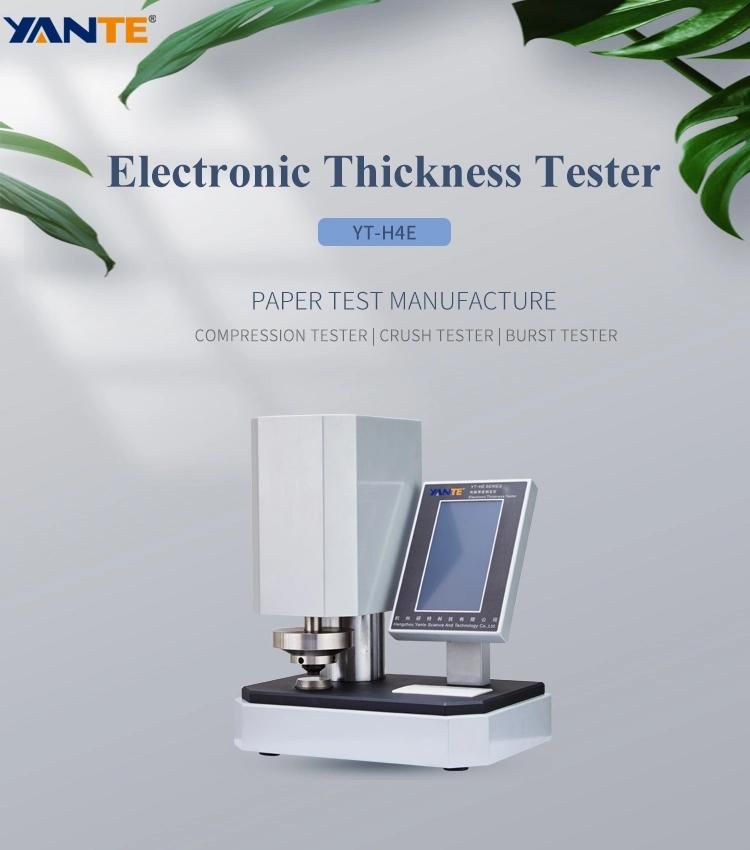

Electronic Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials.It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
Product Features
One-click test, easy to understand
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast
The rising and falling speed of the probe can be adjusted
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results
Communication with computer software (purchased separately)
Application Range
All kinds of paper
Executive Standard
GB/T 451.3,QB/T 1055,GB/T 24328.2,ISO 534
Technical Parameters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100~240)V,(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)ºC, Humidity≤ 85% |
3 | Display | 7 inch color touch screen |
4 | Measuring range | (0~5)mm |
5 | Resolution | 0.001mm |
6 | Indication error | ±0.0025mm or ±0.5% |
7 | Indication variability | ≤0.0025mm or ≤0.5% |
8 | Parallelism between measuring surfaces | ≤0.002mm |
9 | Contact area | (200±5) mm² |
10 | Contact pressure | (100±10)kPa |
11 | Probe descending speed | (0.5~10)mm/s Adjustable |
12 | Built-in thermal printer | |
13 | Communication Interface | RS232(Default) (USB, WIFI optional) |
14 | Dimension | 360×245×430 mm |
15 | Net Weight | 27kg around |
