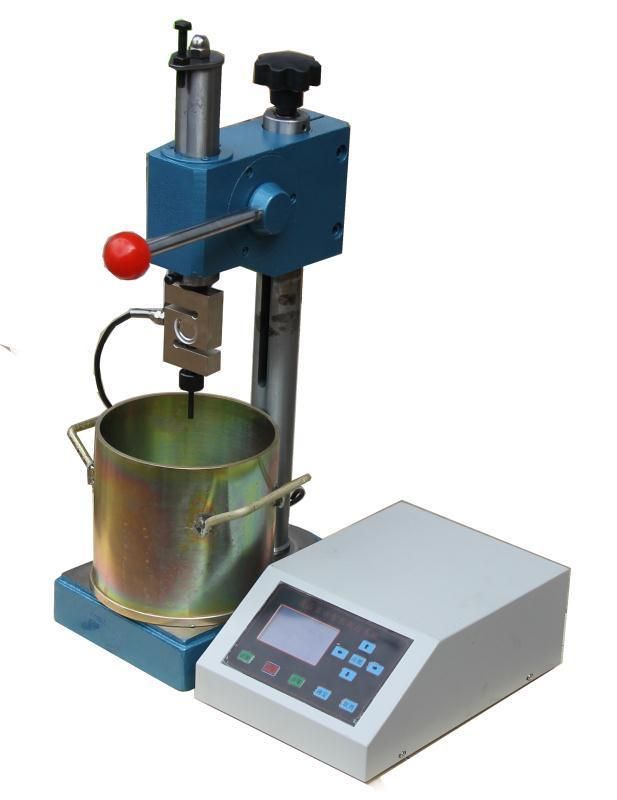

Digital Concrete Mortar Penetration Resistance Test Machine Penetrometer Tester
Hangzhou Civit Instrument Equipment Co., Ltd.- After-sales Service:Quick and Effective After Sales Solution.
- Warranty:1 Year
- Material:Thick Steel
- Condition:New
- Result:Counting
- Working Principle:Weighing Scale
Base Info
- Model NO.:CP-D100
- Standard:En.ASTM
- Display:Digital Display
- Weighing Range:0-1200n
- Product Name:Concrete Penetration Resistance Test Penetrameter
- Transport Package:9mm and 15mm Plywood Package
- Specification:1200N concrete penetrometer
- Trademark:civittest
- Origin:Zhejiang-China
- HS Code:9031809090
- Production Capacity:100pieces,1 Month
Description
Number
Name
Technical indicators
1
The upper diameter of the mould
Φ160m
2
Depth
150mm
3
Maximum penetration force
1000N
4
Penetration depth
25mm
5
Penetration speed
2.5mm/s
6
Cross-sectional area of the penetration needle
100mm2, 50mm2, 20mm2
7
Penetration point (Optional)
>13 points
8
Measurement force method
digital display
9
The minimum graduation value
0.1N
10
Indication error
±1%

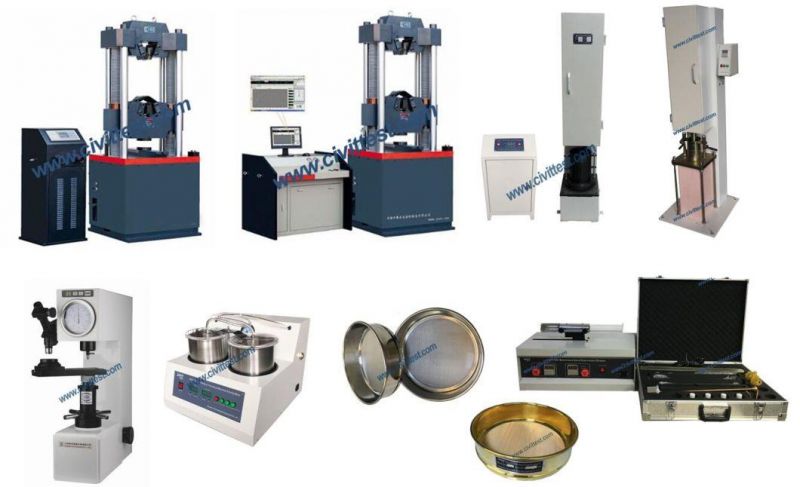

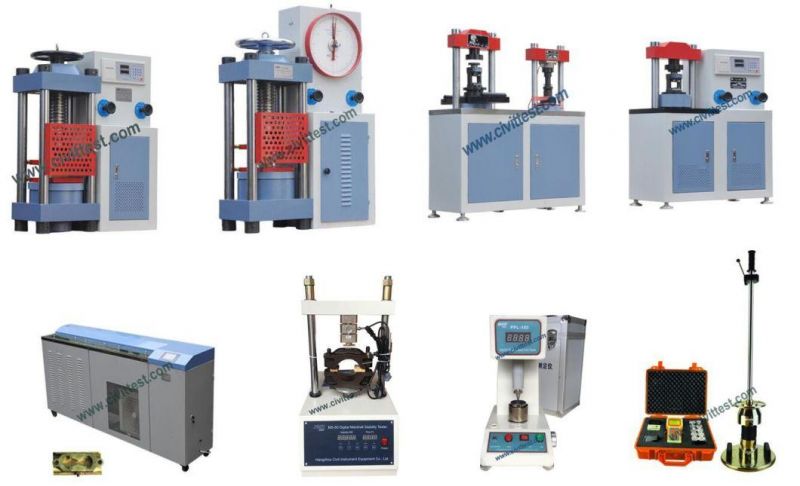

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
IV. Our services

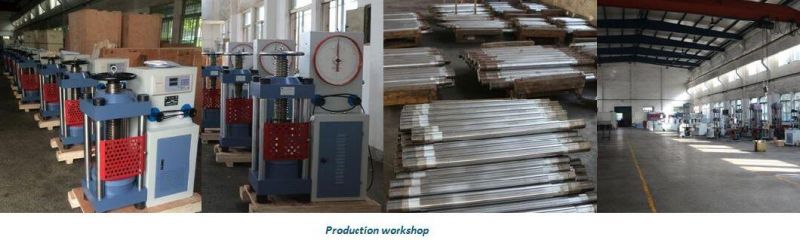

1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
