270L Stainless Steel Salt Spray Corrosion Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：900mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YSST-270
- Loading Method：Dynamic Load
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：N,a
- Internal Size(mm)：900*600*500 (W*H*D)
- Cu(Chcooh) pH Value：3.0-3.2
- Salt pH Value：6.5-7.2
- Salt Spray Vehicle：Air+Acid(Base)Liquid
- Material：Imported PVC & PP
- Heating Method：Stainless Steel Heater
- Warranty：Free Parts Warranty for 12 Months
- Controller：Digital Electronic Controller
- Application / Usage：Resistant to Aicds Testing
- Spray Volume：0.5-3.0 (M,80cm,Hr)
- Transport Package：Wooden Cases
- Specification：CE, SGS, TUV certified.
- Trademark：Yuanyao
- Origin：Guangdong, China(Mainland)
- HS Code：9032100000
- Production Capacity：100 Sets , Month
Description
ModelYSST-108 Inner chamber size (W*H*D) 600*400*450 Exterior chamber size(W*H*D) 1070*580*1030 Temp Range Inside Chamber Room temp.~50ºC, ±0.5ºC Air Room temp.~63ºC, ±0.5ºC Salt water Room temp.~50ºC, ±0.5ºC Saturated Air Pressure(kg/m) 0.8 ~ 2.0 Spray Volume(m/80cm/hr) 0.5 ~ 3.0 PH Salt 6.5 ~ 7.2 Copper acetate 3.0 ~ 3.2 Exter./Inner. Mterial P.V.C & P.P Syatem Salt Spray Veicle Air+acid(base)liquid Heating system SUS#304 &316 stainless steel heater + taflon Controller Hydrometer,salinomerer,fog collector,glassbar Other Components Digital electronic control+S.S.SR Safety Devices Overheating prevention circult-breaker,dehydration and
Overheating prevention mechanism,breakdown indicator light Power supply AC1,220V ±10%,50/60Hz
Package & Delivery

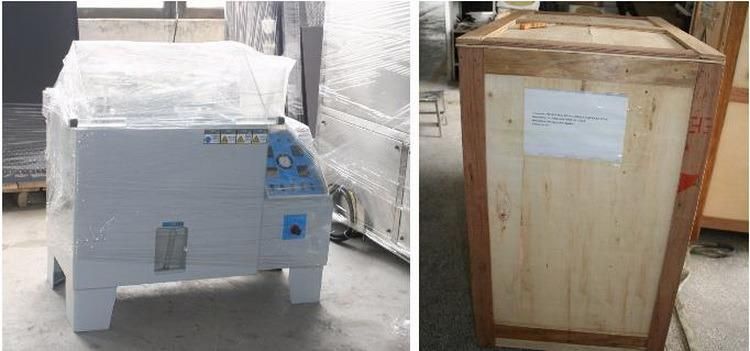

Package: Wooden cases, meet the international standard.
Delivery: In 15-20 working days.
Guangdong Yuanyao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust
Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
We can offer you after you have confirmed which one model is suitable for you, thanks.
