0.05% Accurancy Multimeter Three Phase Energy Meter Test Bench

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Product name：Three Phase Multimeter Energy Meter
  • Output voltage：220V, 380V
  • Output current：5A, 10A, 20A, 50A, 100A
  • Usage：Auto Testing Machine

Base Info

  • Model NO.：ZXDN-306
  • Power：Electronic
  • Transport Package：Wooden Case
  • Specification：Customized
  • Trademark：GDZX
  • Origin：China
  • HS Code：9030332000
  • Production Capacity：100 Pieces,Month

Description

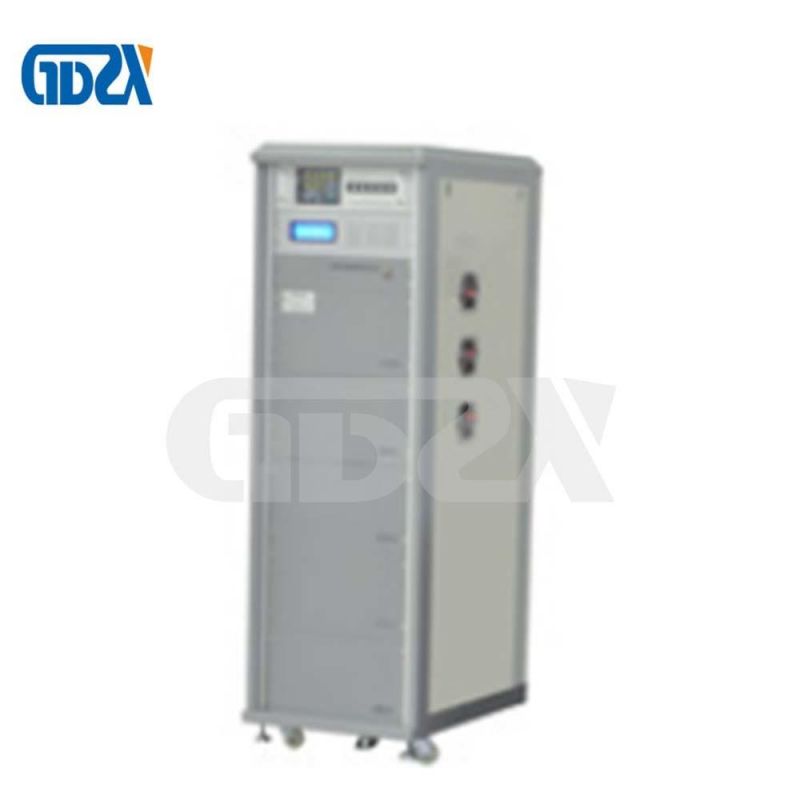

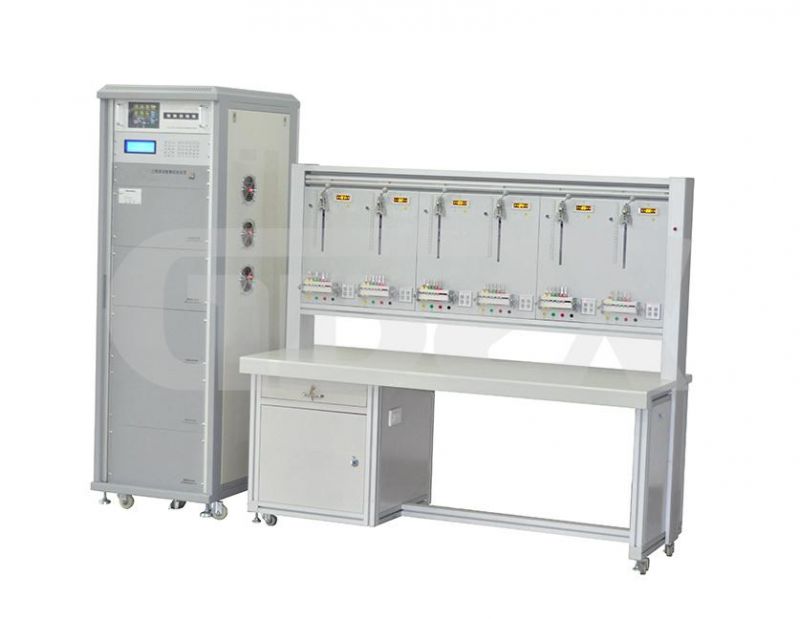

    ZXDN-306 Three-phase multi-function meter inspection device is our company's requirements according to relevant national standards and regulations. Based on the accumulation of more than ten years of production experience of the three-phase program-controlled electric energy meter verification device, the electronic program-controlled three-phase electric energy meter verification device has been carefully developed. 0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench

0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench

Technical Indicators



2. Output voltage:Output voltage range of each phase:57.7V, 100V, 220V, 380VAdjustment range:0 ~ 120% / file; continuously adjustable
 Adjustment fineness:10%, 1%, 0.1%, 0.01%3. Output current:0.005A, 0.025A, 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 20A, 50A, 100A
 Adjustment range:0 ~ 120% / file; continuously adjustable
 Adjustment fineness:10%, 1%, 0.1%, 0.01%
4. Output power:0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench
About GDZX
0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench
0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench
Shipping and packaging
0.05% Accurancy Multimeter Three Phase  Energy Meter Test Bench
Features

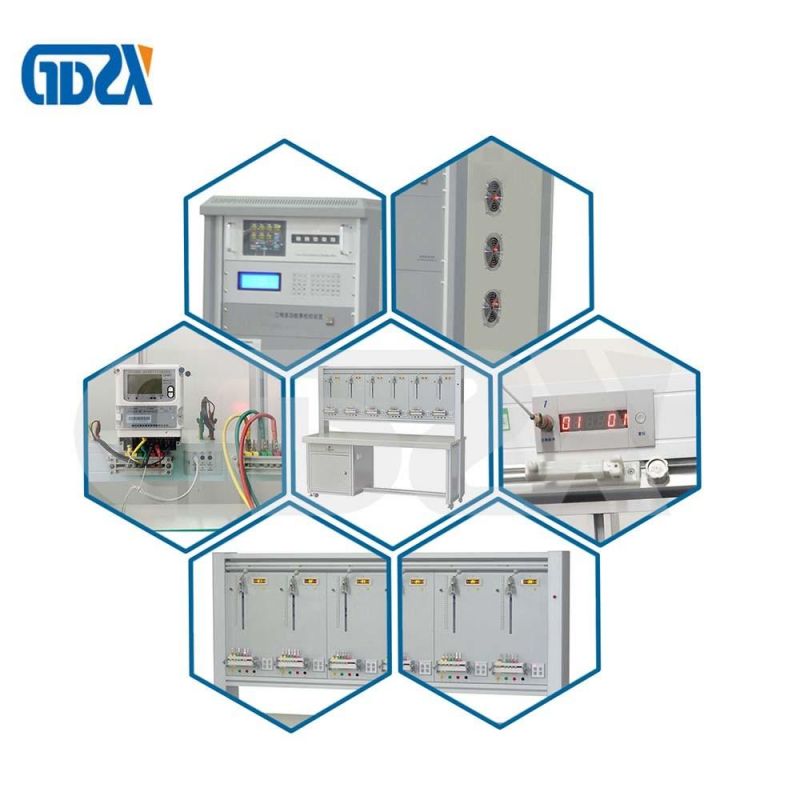

1. Adopt split or integrated structure, special aluminum alloy hanging table frame, fireproof composite board table, beautiful appearance.

2. The signal source adopts DDS technology, large-scale CPLD and RAM embedded system, output 36000 phase modulation, 12-bit D / A conversion waveform synthesis output, 16-bit D / A amplitude modulation output; has high stability and small adjustment fineness , Low distortion, etc.

3. The 7-inch color LCD screen with RAM system has the advantages of large amount of displayed information, intuitive and convenient.

4. Each table position is equipped with 6-bit LED multi-function display, which can display the basic error of each table position, clock frequency and various test marks;

5. The current connection method of the electric energy meter is a quick crimping aluminum alloy junction box (optional smart meter crimping junction box).

6. Each table position is equipped with a multi-channel pulse input switching port with protection function (four-channel pulse, one-channel 485, one-channel multi-function), which can prevent high voltage from entering by mistake and causing failure; one-time wiring and automatic switching

7. Each meter position is equipped with an open current detection function, which can automatically detect and indicate the open meter position. (Optional function of automatic short circuit open position)

8. Each meter is equipped with a fee control detection module, which can do local and remote fee control tests. The smart meter of the built-in relay can detect the opening and closing function of the relay, and the measurable output voltage of the external relay.

9. Configure ZXT10 high-precision standard clock, internal 3 * 10-8 crystal oscillator, can test the clock error.

(Optional ZXGT10 GPS clock timer).

10. Configure multi-serial communication, each table position is equipped with an independent 485 communication port (optional serial server can implement parallel communication).

11. Each table position is equipped with a three-dimensional adjustable multi-function photoelectric sampler, which can reliably receive the black mark of the mechanical watch and the strobe signal of the electronic watch (optional).

12. Adopt PWM modulation power amplifier, which has large output power, small calorific value and efficiency up to 90%.

13. The device has the soft start and stop function of voltage and current output, the protection and alarm function of short circuit of voltage output terminal and open circuit of current output terminal, all-round protection of output power amplifier, high reliability;

14. Carrier switching box can be configured, built-in 6 domestic mainstream carrier controller. (Optional)

15. Provide hierarchical verification management software, with power-off protection function, advanced multi-thread programming technology, to ensure parallel communication of multiple epitopes.
