Digital Large Current 1000A Inductance Capacitance Resistance LCR Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Rated output：2V,20V,500VA
- Current range：0-1000A
- Inductance range：0.1mH~5mH, 5mH~50H
- Capacity range：5~20000kV
Base Info
- Model NO.：ZX-CHA
- Rated voltage：power frequency 220V+,-10%
- Rated frequency：50Hz
- Ambient temperature：-10~+ 50 Centigrade
- Dimensions and weight：370*260*220mm,12kg
- Transport Package：Carton
- Specification：Customized
- Trademark：GDZX
- Origin：China
- Production Capacity：1500PCS,Year
Description

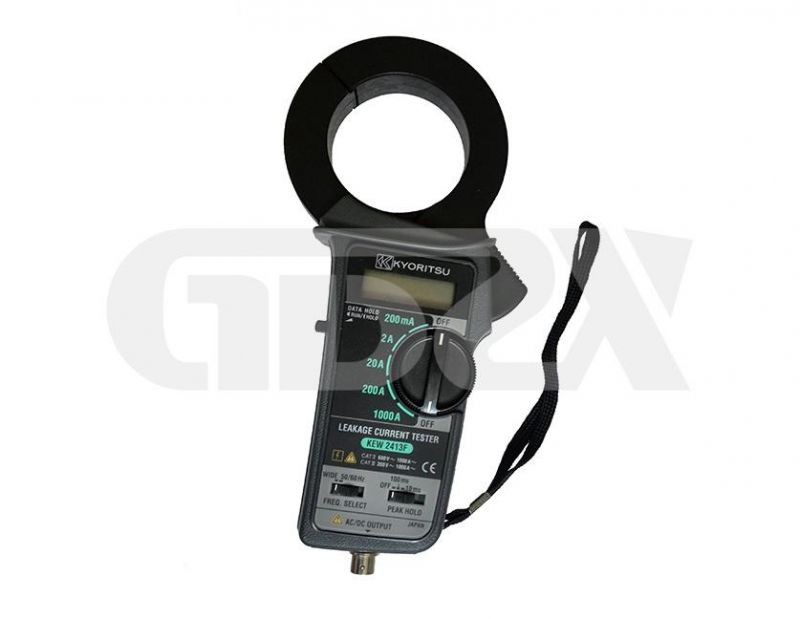

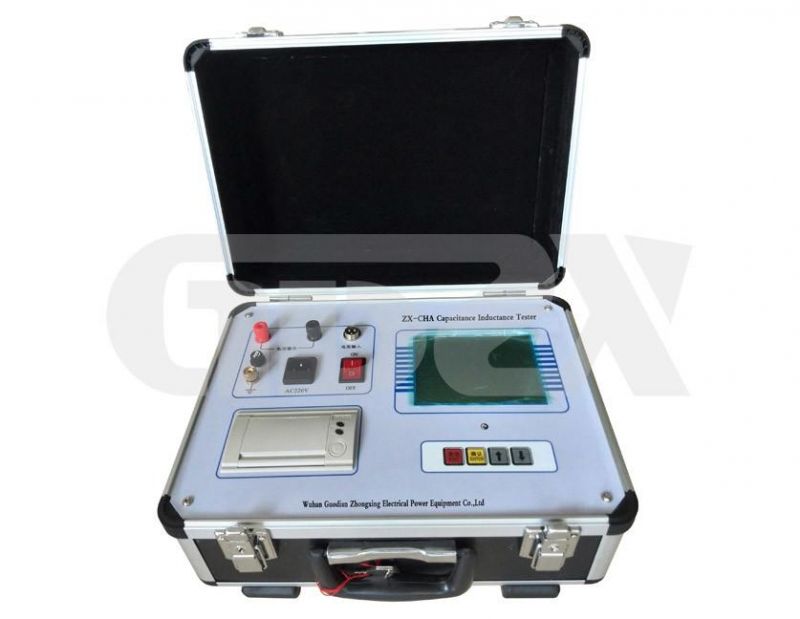

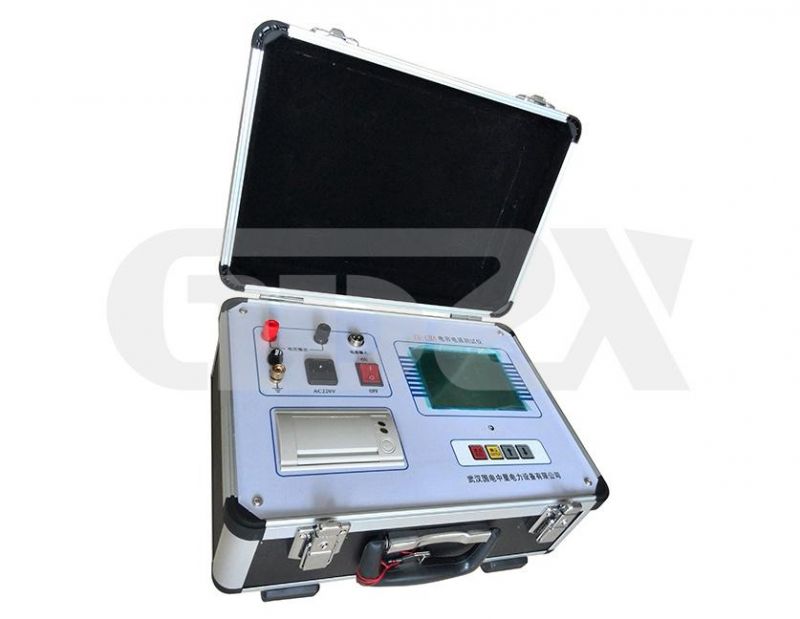

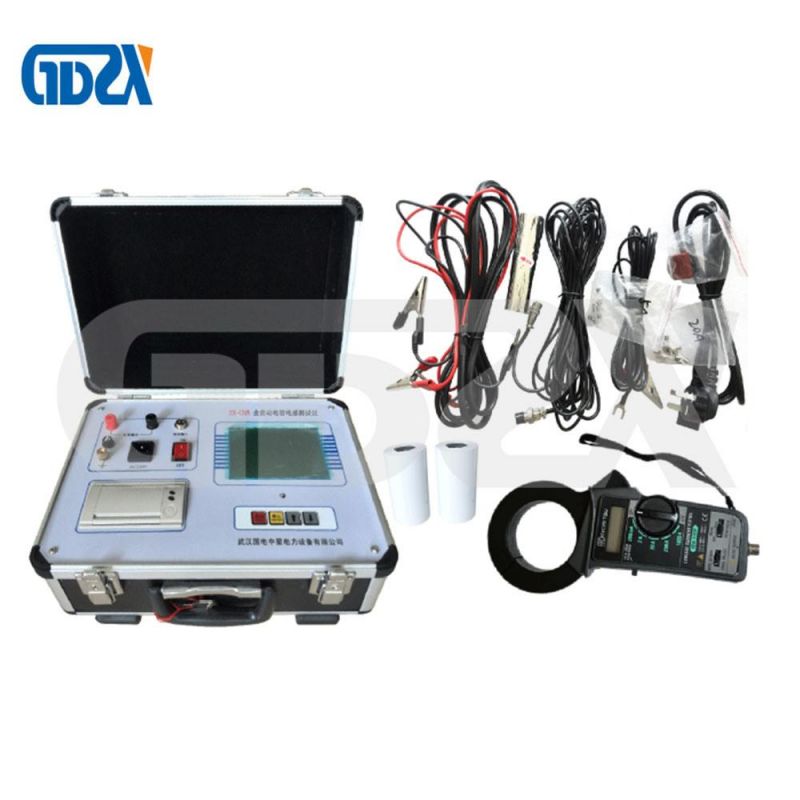

ZX-CHA capacitance and inductance tester (with imported clamp) adopts bridge circuit structure, with standard capacitor and tested capacitor as two arms of bridge circuit. When the capacitance value of the capacitor is measured, the test voltage is applied to the standard capacitor and the tested capacitor at the same time. The processor collects the current signal flowing through the sensor and processes to obtain the capacitance value of the tested capacitor.
1) Capacitance measurement a. Measurable capacitance range: 0.1μF~3,300μF
b. Range of measurable capacity: 5~20,000kvar
c. Measurement accuracy: ± (1.0% reading + 0.02μF)
d. Resolution: 0.001μF 2) Current measurement a. Current measurement range: 0~199.9mA; 0~1.999A; 0~19.99A; 0~199.9A0~1000A
b. Measurement accuracy: ± (3.0% reading + 0.05A)
c. Resolution: 0.01A 3) Inductance measurement a. Inductance measurement range: small inductance 0.1mH~5mH; Large inductance mode 5mH~50H
b. Inductance measurement range: 50mΩ ~ 20KΩ
c.Measurement accuracy: ± (3.0% reading + 0.05mH)
d. Resolution: 0.01mH 4) Resistance measurement range:
a. Resistance measurement range: small resistance 50mΩ~1Ω; Large resistance mode 1Ω~20KΩ
b. Measurement accuracy: ± (3.0% reading + 0.05Ω)
c. Resolution: 0.01 Ω 2. Working power 1) Rated voltage: power frequency 220V ± 10%
2) Rated frequency: 50Hz;
3) Rated output: 2V / 20V / 500VA 3. Working conditions: 1) Ambient temperature: -10 ºC~+ 50 ºC
2) Relative humidity: ≤90% 4. Printing method: LCD display with English characters;
Panel-type high-speed printer 5. Dimensions and weight: 370*260*220mm/12kg
Test cases
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
Technical parameters
b. Range of measurable capacity: 5~20,000kvar
c. Measurement accuracy: ± (1.0% reading + 0.02μF)
d. Resolution: 0.001μF
b. Measurement accuracy: ± (3.0% reading + 0.05A)
c. Resolution: 0.01A
b. Inductance measurement range: 50mΩ ~ 20KΩ
c.Measurement accuracy: ± (3.0% reading + 0.05mH)
d. Resolution: 0.01mH
b. Measurement accuracy: ± (3.0% reading + 0.05Ω)
c. Resolution: 0.01 Ω
2) Rated frequency: 50Hz;
3) Rated output: 2V / 20V / 500VA
2) Relative humidity: ≤90%
Panel-type high-speed printer
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.Company introduction
