• Model NO.：HZJQ-3
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cup Capacity：400ml 200ml
• Hz-381 Type：Single Oil Cup Structure
• Testing Time：6 Times (1~6 Times Optional)
• Minimum Resolution：0.1kv
• Insulating Oil Pressure Test：0-80kv (Optional)
• Measurement Resolution：±(2% * Reading+ 0.2kv)
• Electrode Distance：2.5mm (Electrode Gap Can Be Adjusted)
• Wave Form Distortion：Less Than 3%
• Supply Voltage：AC220V±10% 50Hz±1 Hz
• Applicable Humidity：Max Relative Humidity 75%
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030899090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZJQ-3 Weight 0-100Kg Power Source AC220V Oil Cup Capacity 400ml 200ml Hz-381 Type Single Oil Cup Structure Testing Time 6 Times (1~6 Times Optional) Minimum Resolution 0.1kv Insulating Oil Pressure Test 0-80kv (Optional) Measurement Resolution ±(2% * Reading+ 0.2kv) Electrode Distance 2.5mm (Electrode Gap Can Be Adjusted) Wave Form Distortion Less Than 3% Supply Voltage AC220V±10% 50Hz±1 Hz Applicable Humidity Max Relative Humidity 75% Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030899090 Production Capacity 100 PCS/Month

Product Description

Three Cups Insulating Oil Transformer Oil Dielectric Strength BDV Tester

I.Introduction
HZJQ-3 transformer oil high voltage breakdown voltage tester uses a microprocessor to automatically complete boost, keep stirring, static discharge, calculate, print and other operations, is a necessary measure in the conventional test equipment.


II.Functions&Features
transformer oil dielectric test equipment using microprocessor, 3 cups of whole,automatic booster, maintain, stirring, static discharge, calculating, printing and so on, can do oil cycle withstand voltage test in the range of 0 ~ 80KV.
Instrument adopts large-screen LCD.
advantages:simple operation, the operators only need a simple setup, the instrument will automatically according to the set pressure test 1-3 cups of oil sample. 1 to 6 times the value of the breakdown voltage and the cycle number are Each oil sample, each breakdown voltage and cycle times are automatically stored , aftercompletion of the test, the thermal printer can print out the breakdown voltage value andaverage value.
Maintain power down, can store 100 experimental results, and can display the currentenvironment temperature and humidity.
Using single chip microcomputer control constant speed boost,voltage frequency accuracyto 50HZ, makes the whole process easy to control.
With overvoltage, overcurrent, limiting protection, in order to ensure the safety of operators.
with a temperature measurement display function and system clock display.
Standard RS232 interface, can communication with computer.

III.Technical Parameters

Type	HZJQ-3
Output voltage	0~80KV (optional)
Voltage distortion rate	<3%
Voltage raising speed	0.5~5 KV/S (adjustable)
Standing time:	15min (adjustable)
Boosting interval	5 min (adjustable)
Boosting frequency	1~10 time(s)
Booster capacity	1.5KVA
Measuring accuracy	±(2%×reading+0.2Kv)
Supply voltage	AC100~240V  50Hz±1 Hz
Power	200W
Applicable temperature:	-35ºC~45ºC
Applicable humidity:	<90%RH   No condensation
Overall dimension	585*390*410mm

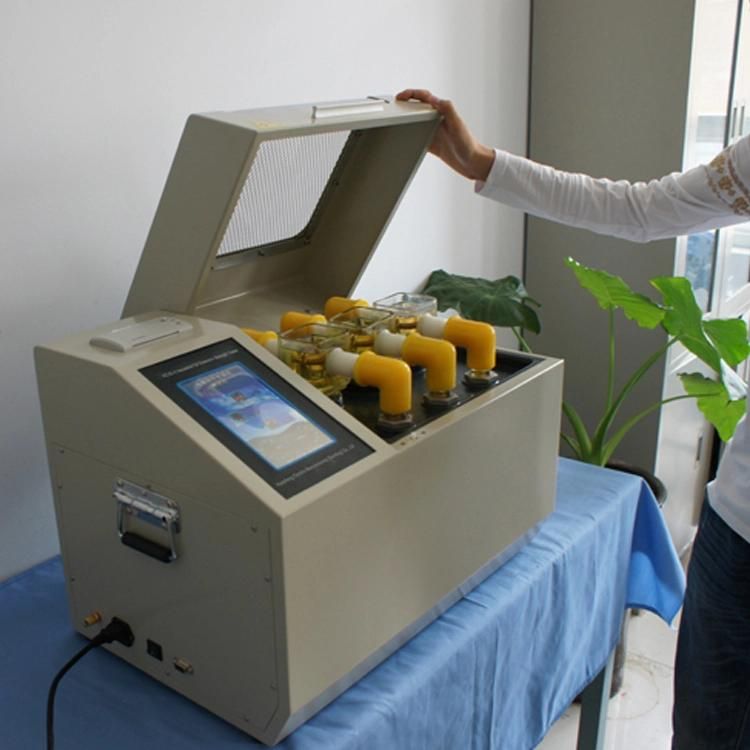

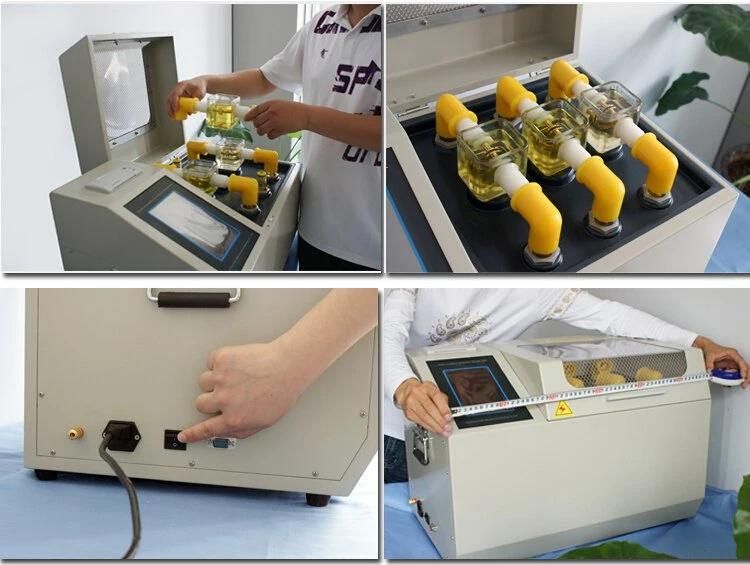

IV.Detailed Photos




V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



VI.FAQ
1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232? A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing
