• Model NO.：XB-OTS-1000F
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Internal Size(mm)：1000*1000*1000 L*W*H
• Usage：Auto Testing Machine
• Humidity Range：20%Rh~98%Rh
• Computer Interface：RS-232c,USB
• Frequency Range：3-2000Hz
• Rate Force：500kgf
• Transport Package：Standard Strong Wood Case
• Specification：225
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9031809090
• Production Capacity：108 Sets Per Month

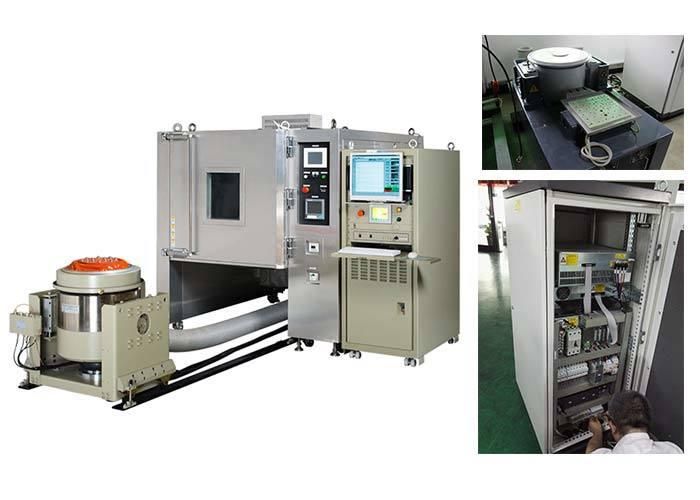

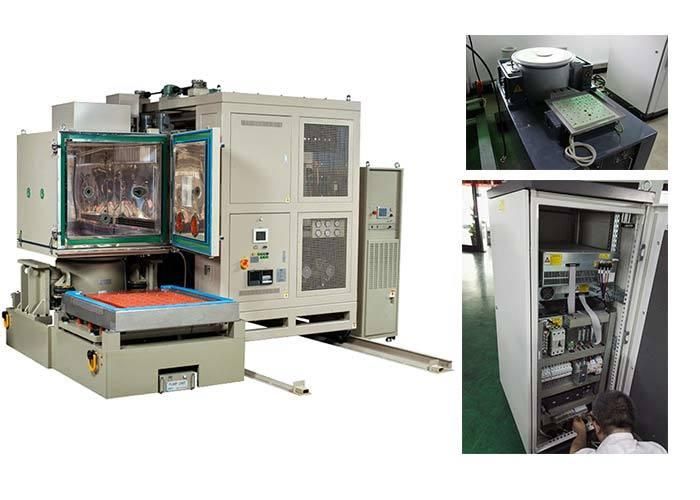

   Vibration Temperature Humidity Environmental Combined Test Chamber integrated temperature, humidity, vibration of the three functions of the test box.With rapid temperature change rate, temperature, and humidity integrated test environment and the vibration function.
    Vibration Temperature Humidity Environmental Combined Test Chamber provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.




SpecificationsPlace of Origin:Guangdong, China (Mainland)
Brand Name:OTS
Model Number:XB-OTS-1000F
Power:Electronic
Usage:Auto Testing Machine
Internal size(mm):
1000*1000*1000
Warranty:12 month
Humi.range:20%RH~98%RH
Material:Stainless steel
Computer interface:RS-232C,USB
Frequency Range: 3-2000Hz
Control:Vibration,cross-temperature&humidity
Rate force:500kgf
Display:LCD ( display in Chinese/English)
Displacement:25mm 0°C -20°C -40°C -70°C~150°CHumi. Range10%RH~98%RHFrequency Range3~2000HzMax.Displacement25mmRated Force200kgfController1P PROGRAMMRLE COXTROL+SINE WAVE CONTROL SYSTEMPower Source(K.W.)AC 3380V 60/50Hz
Feature

1. Multifunctional - can be used as a single temperature / humidity test chamber, to maximise your return on investment.
2. The viewing window is larger than the previous model, to ease inspection of the specimen during test. A heater inside the door prevents dew appearance.
3. Rail to move the chamber back and forth, coupling shaft diameter selection.
4. A heater inside the door prevents dew appearance.
5. Simulation test environment three environmental factors in the same cabinet.
6. Receive customized design, satisfy the strict user demand conditions.
7. High performance, fast temperature change rate, can be accelerated stress testing products.


Product Advantage:

1.Touch Screen Controller saves chamber programming and setup time. Removable USB I-stick simplifies access to profile, alarm, and audit trail files
2.Dual Purpose- May be operated as a separate temperature/humidity chamber, maximizing user's investment.
3.Simulates up to three combined environment in one test chamber
4.Versatile - Chamber may interface with your existing vibration shaker or a new shaker of your choice
5.Customizable design to meet stringent test requirements
6.User friendly controls for easy integration into users test system. Refrigeration design protects compressors and prolongs life, 7.keeping cool during all operating conditions.
8.Refrigeration design uses less power, saving operating costs
9.An electronic humidity sensor is used on all humidity models for accuracy and minimal maintenance
Humidity water filtration system is included to filter impurities and protect your chamber interior

Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair /online diagnosis and repair


 FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.

Welcome inquiry,we will give you the best suggestions!
