• Model NO.：YTH-20000
• Loading Method：Dynamic Load
• Display：Digital
• Control：Controller
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：N,a
• Inner Size：Customization
• Temp. Range：-20 Degrees---70degrees
• Humidity Range：30% Rh--90%Rh
• Humi. Fluctuation：+,-2.5%Rh
• Temp. Fluctuation：+,-0.3 Degree
• Controller：Digital Electronic Controller
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Insulation System：PU&Fiberglass Wool
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Wind Circulation System：Siroco Fan

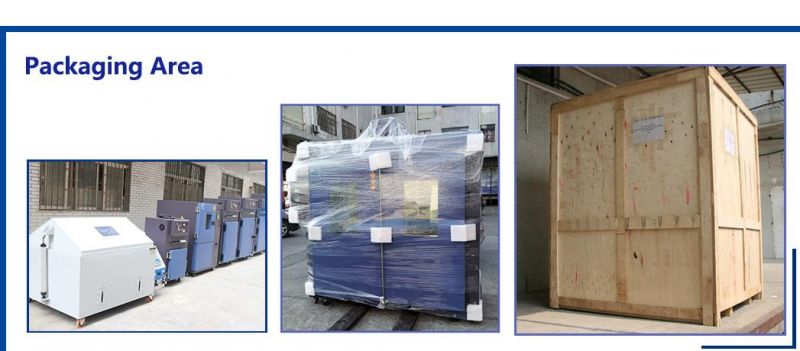

• Transport Package：Strong Plywood Case
• Specification：SGS, TUV Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：10 Sets,Month

Walk In Climate ChamberModelYWERInner chamber size W×H×D(cm)Non-standardExterior chamber size W×H×D(cm) Temperature range0ºC;-20ºC;-40ºC;-60ºC,-70ºC~+70ºC(+80ºC) Humidity range30%RH~95%RHTemp.humi.fluctuation±0.3ºC;±0.5%RHTemp.humi.uniformity±3ºC; ±5%RHIndication Resolution0.1%RH Temperature:0.01 humidity:0.1%RHHeat up ang cool down time Heat-up:2ºC/min(Average),cool-down time 1ºC/min(Average)Air cirulation systemCentrifugal fan air circulation systemHeating systemSUS# Stainless steel high-speed heaterHumidification systemElectrothermal steam humidificationRefrigeration systemCompressor + Finned evaporator + Air(Water) cooling condenserDehumidifying systemdew point dehumification methodControlling systemTouch screen controllerExterior chamber materialCold rolled plate + Powder coatingInner chamber materialSUS#304 Stainless steelInsulation materialPUOther componentsVacuum glass observation window∅50mm ∅100mm ∅160mm(Optional)Control status indicatorView lightOverheat protection circuit breakerSafety protection deviceHumidification system overheat protectionCompressor overload protectionControl system overload protectionOverload indicatorPhase sequence protection Water shortage protectionHigh voltage and low voltage protectionOver temperature protectionWater supply dely protectionFan overcurrent protectionPower supplyAC 3ψ 380V 60/50Hz Power supply can be customizedCustomization serviceNo-standard or special requirements are all welcome

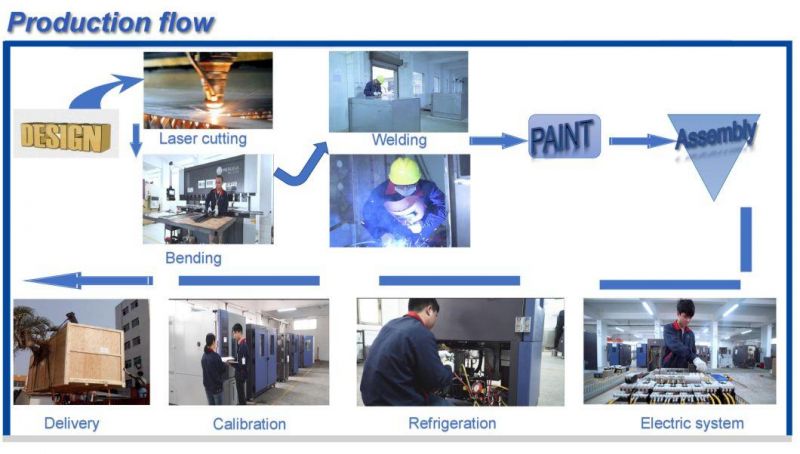

Production Line:

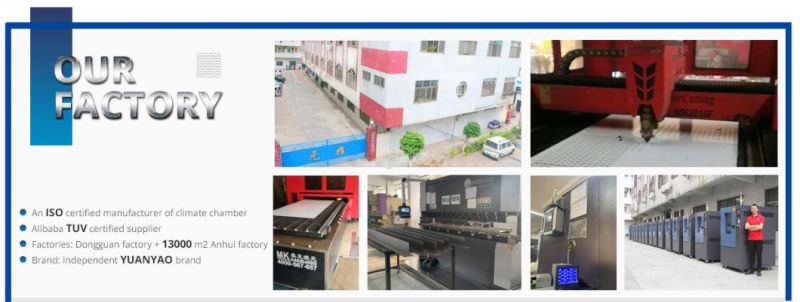

We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.

We produce in strict accordance with international safety standard.

Many stock spare parts in warehouse ensure customer can get soon when they need.

In the past years, Yuanyao has exported more than 2,000 chambers to more than 70 countries all over the world.

1. Pre-sale service : Confirm customer's requirement to send suitable proposal.

2. Make final confirmation before production(machine outlook design and technical parameters).

3. Update the latest production status to our customer and prepare full sets of machine operation documents and operation video(if customer need). We also welcome our customer to our factory for check before delivery.

4. After-sale service: Provide 1 years warranty for spare parts.

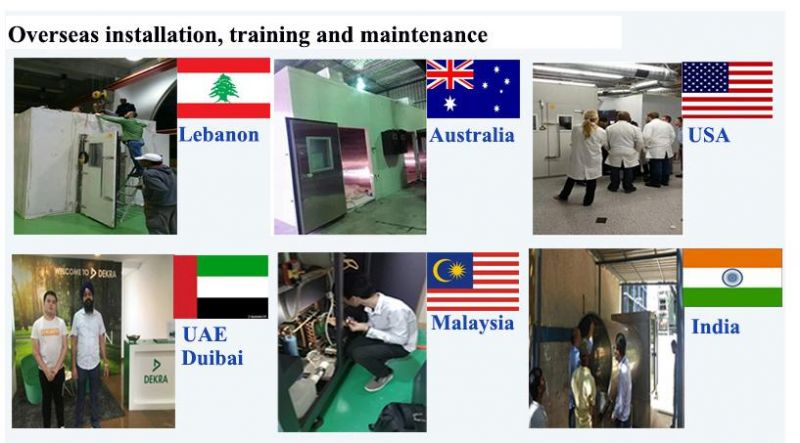

                                 Overseas technical support and onsite installation is available.

                                 24 hours standby on skype, wechat, phone,etc.


5.Corresponding test standard:
1). International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat

2). Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3

3). Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B: Dry heat
JIS C60068-2-1-1995 test method A: Low temperature

4). USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test

5). Chinese national Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
GB/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
GB/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method

6). China's National Military Environment Test Equipment
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 hot and humid condition testing

6.CE, SGS, ISO 9001:2015 certified manufacturer.

In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
If you want to know more about water resisitance test chamber,please feel free to contact us.

Thank you for your reading !
