• Model NO.：HVSG-600GN-4
• Usage：Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
• Test Region：Unformed
• Cable Type：Power
• Power：Electricity
• Certification：CE, RoHS
• Customized：Non-Customized
• Color：Orange
• Display：Digital
• Power Source：DC 100V-300V
• Installation：Portable Precise
• Function：Provide Signal
• Type：Cable Fault Tester
• Environment：High Voltge Outside
• Weight：36kgs
• Output Surge Voltage：35kv
• Max. Power Energy：2450j
• Specificaion：4UF
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：RoHS, CE
• Trademark：Grewin
• Origin：China
• HS Code：90289010
• Production Capacity：400 PCS Per Month

Basic Info.

Model NO. HVSG-600GN-4 Usage Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester Test Region Unformed Cable Type Power Power Electricity Certification CE, RoHS Customized Non-Customized Color Orange Display Digital Power Source DC 100V-300V Installation Portable Precise Function Provide Signal Type Cable Fault Tester Environment High Voltge Outside Weight 36kgs Output Surge Voltage 35kv Max. Power Energy 2450j Specificaion 4UF Transport Package Export Standard Carton or Customize Strong Pallet Specification RoHS, CE Trademark Grewin Origin China HS Code 90289010 Production Capacity 400 PCS Per Month

Product Description

Product Description:

1.Introduction

1. Features

1. Instrument has a high voltage side, low voltage side and supply-side triple over-current, over-voltage and over-heating protection functions;
2. Uniform impulse discharge.
3. Short circuit protection, the instrument can work when HV output is short circuit to ground.
4. 1.5 grade clear current voltage meter.
5. Accurate high voltage side , real-time display, connecting microampere meter high side can act as a DC high voltage generator
6. With function of overheating protection , zero start protection, safe and reliable.
7. The unique design of  high voltage measurement. Voltmeter indicates real-time capacitance and voltage in stop status.

1. Specifications:

1. Output voltage: 0 ~ 35 kV continuous adjustable.
2. High pressure partial pressure : voltage accuracy : 1.5
3. Inner capacitor :4μF
4. Impact Power: 400W (can be customized )
5. Discharge power : 2450J
6. Discharging time:1-10 seconds
7. Over-temperature protection:85ºC
8. Volume: 420L×325W×480H
9. Weight: No more than 33kg
10. Environment  temperature : -20~+50ºC
11. Working power source : AC 220V±10% 50Hz±2Hz

Related Products
1.The HVSG-500G Integrated High Voltage Signal Generator is used to offer signal source for the fault locating and pinpointing. Together with the
 PCLC 910D&PCLD-901P items, it's easy to do:

           (1)Impulse current distance measurement
           (2)Sound magnetic synchronous method for pinpointing


Output surge voltage	0~35KV, Step variable
Max. power energy	2000J
Energy-storage capacitor	4μF
Power	AC 220V.50Hz
Volume	400mm×460mm×300mm
Weight	25 kgs
Operating Temperature	-10ºC-40ºC
Humidity	5-90%RH
Elevation	<4500m

2.We have two ranges about high voltage generator as below:

1). 0-10KV 500J 10uf
2). 0-32kv  1000J 2uf
3).0-35KV 2000J 4uf

3.Function feature:
Integrated design with small size and light
Different sub-models with difference specification
Imported safety case,professional and portable
Built in energy-storage capacitor without HV leak and safe operation
HV directly connect with the faulty cable, easy wiring and safe operation
Built-in high power quick charging and short discharge period
Multiple safety protection support Zero position start and release HV power energy after power off
Multiple working methods of single,period and DC
Step adjustable voltage with LED indication
4.Specification

Output surge voltage	0~35KV, Continuously variable
Max. power energy	1000J
Energy-storage capacitor	2μF
Power	AC 220V.50Hz or 230V  60HZ
Volume	400mm×460mm×300mm
Weight	25 kgs
Operating Temperature	-10ºC-40ºC
Humidity	5-90%RH
Elevation	<4500m

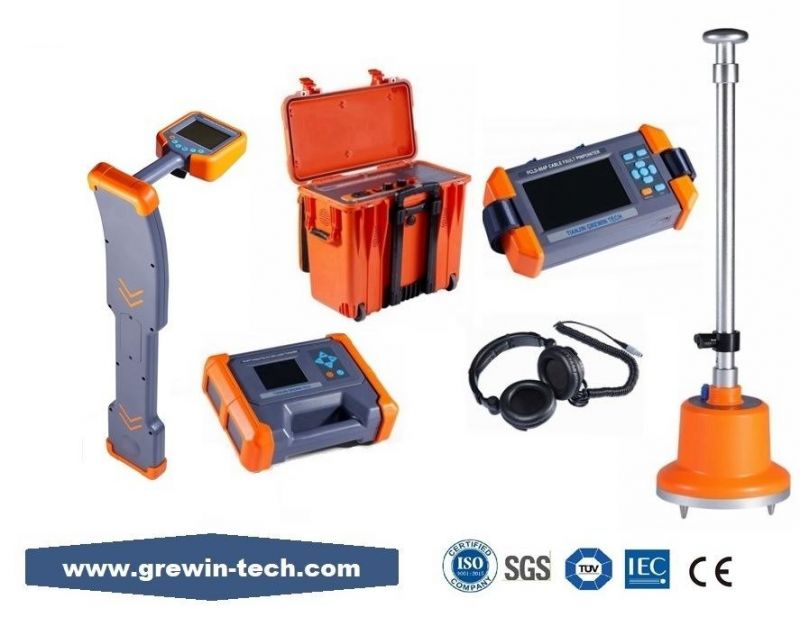

5.Product Pictures:

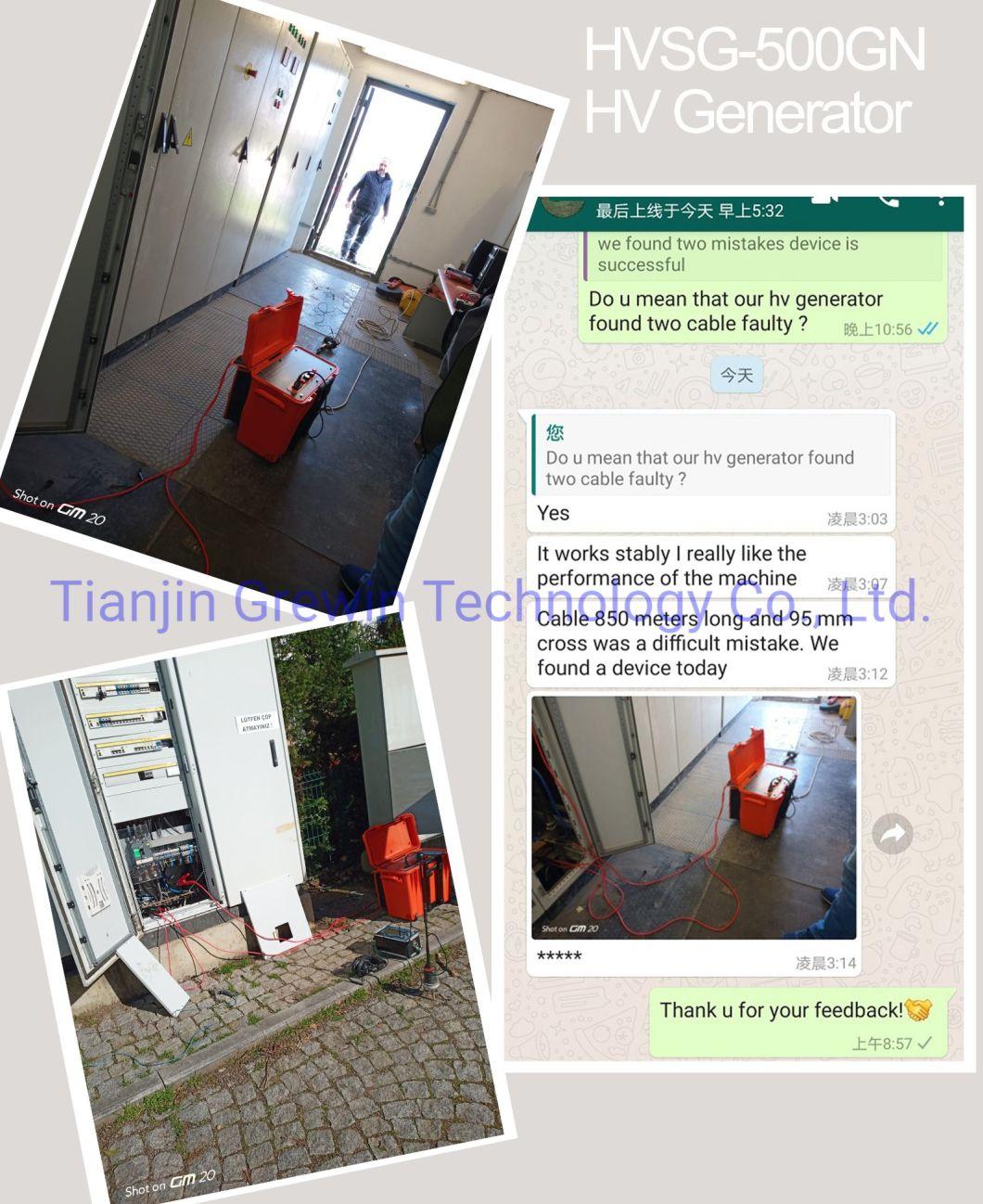

HVSG-500GN-2  1000J 4UF CABLE FUALT LOCATING HV SIGNAL GENERATOR

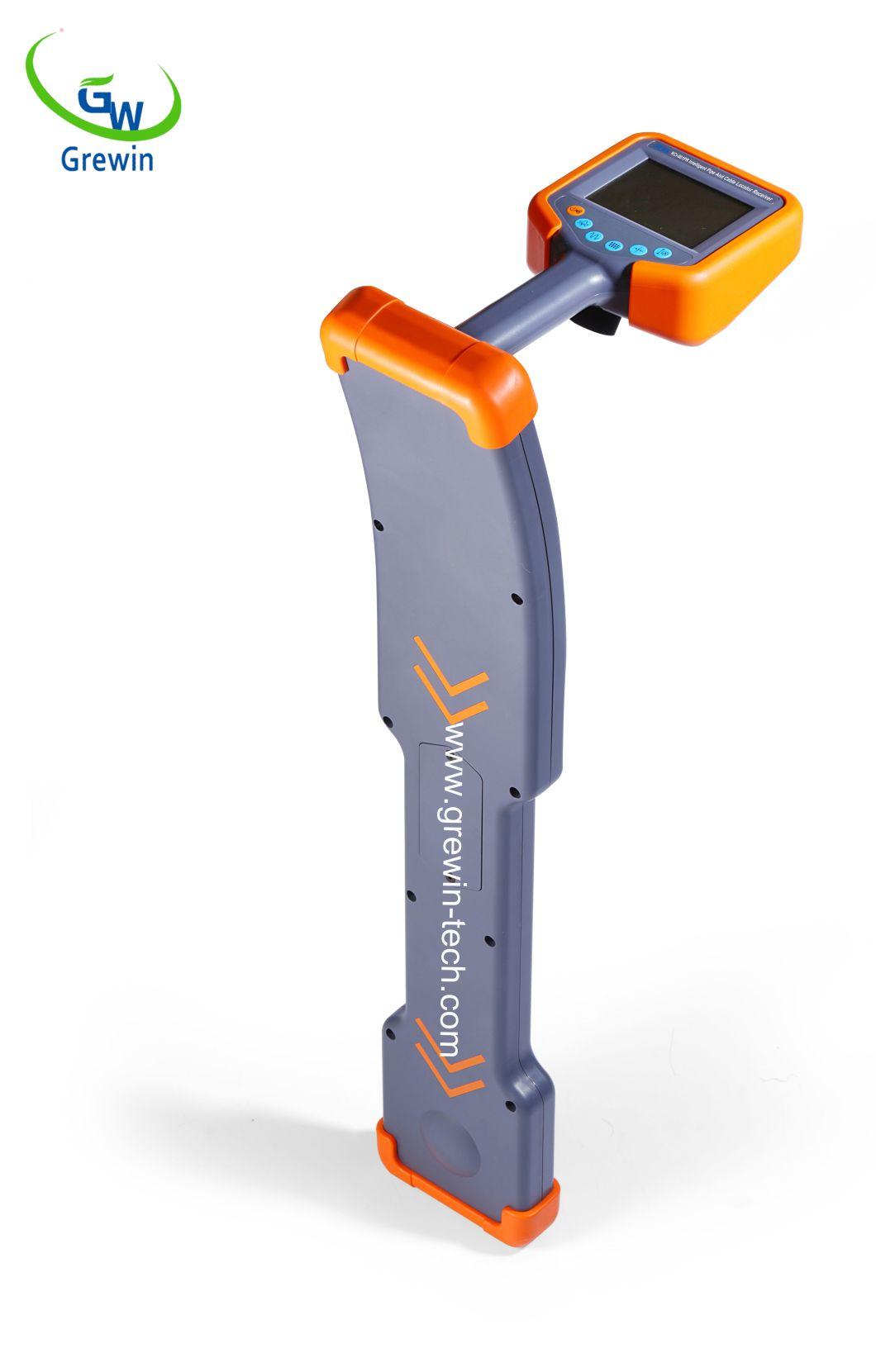

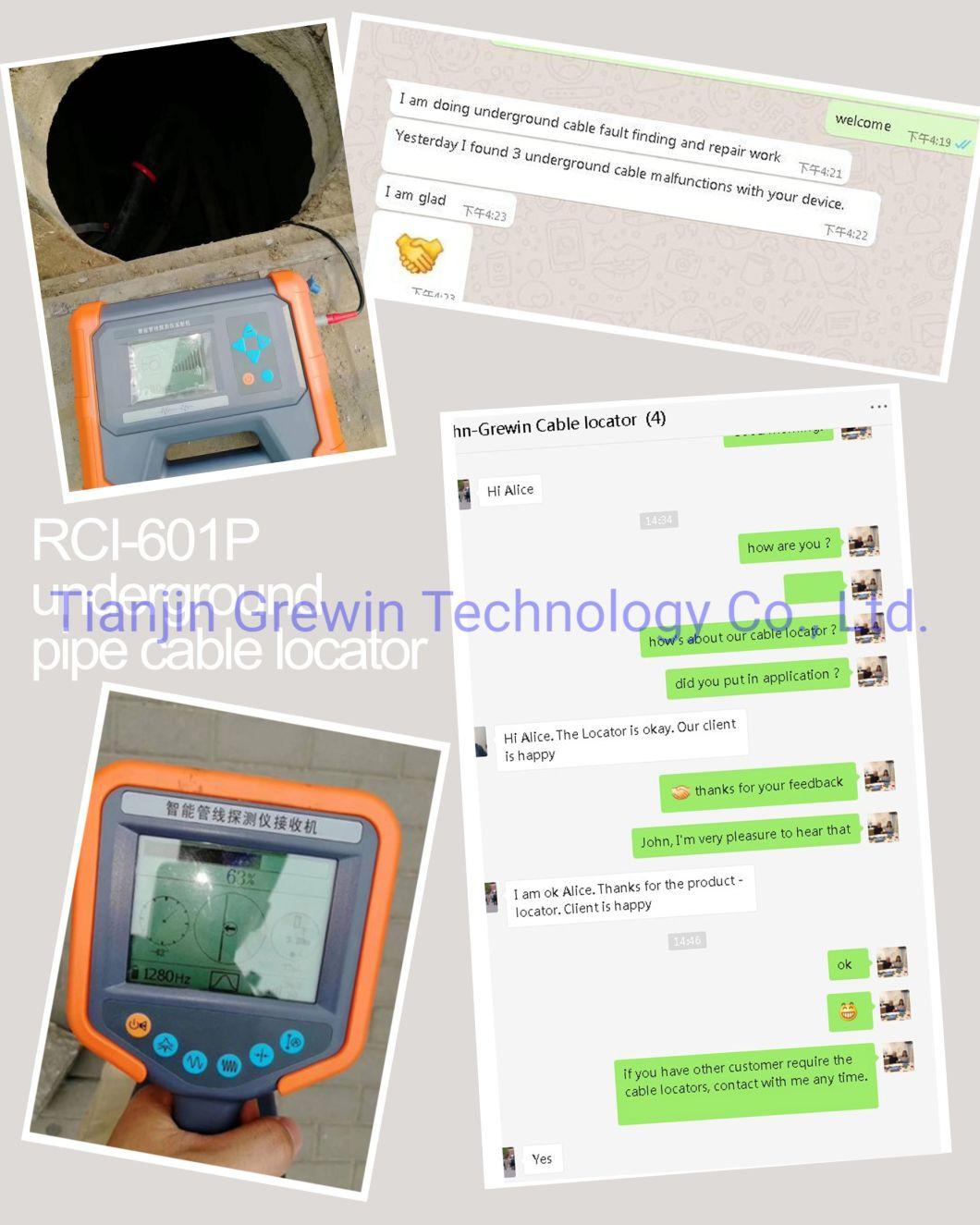

6. Our pipe locator has below advantages:

1.The max transmitter power is 12W .
2.We add a booster to increase the transmission signal strength and make the test more accurate.
3. Frequency:
Grewin:GWRCI-601P have multi frequency and max frequency can up to 197Khz
 We can give you warranty period and good after sales sevices.

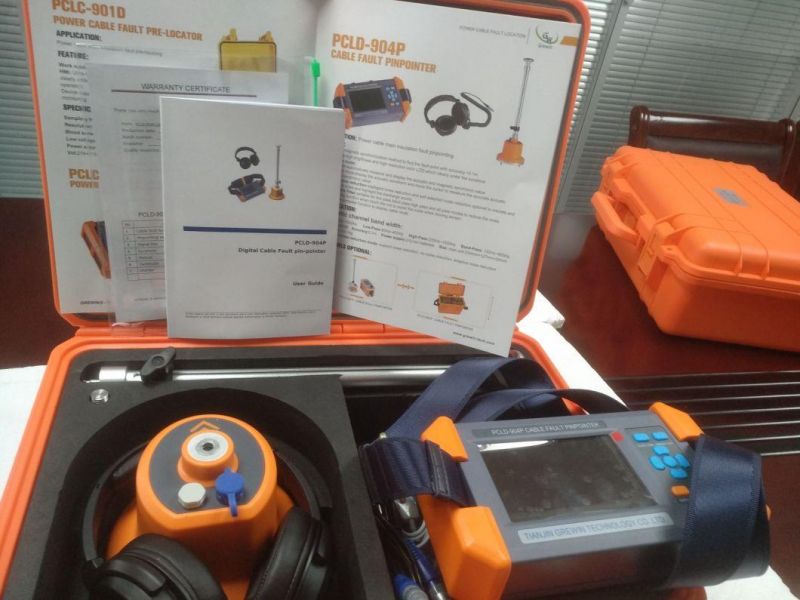

7.PIN POINTER CABLE FAULT LOCATOR ADVANTAGES:

1.The test accuracy is < 0.1M and high class in our market ;
2. It is also use HUAWEI charger etc.
3.Sound magnetic synchronous method and filter etc.

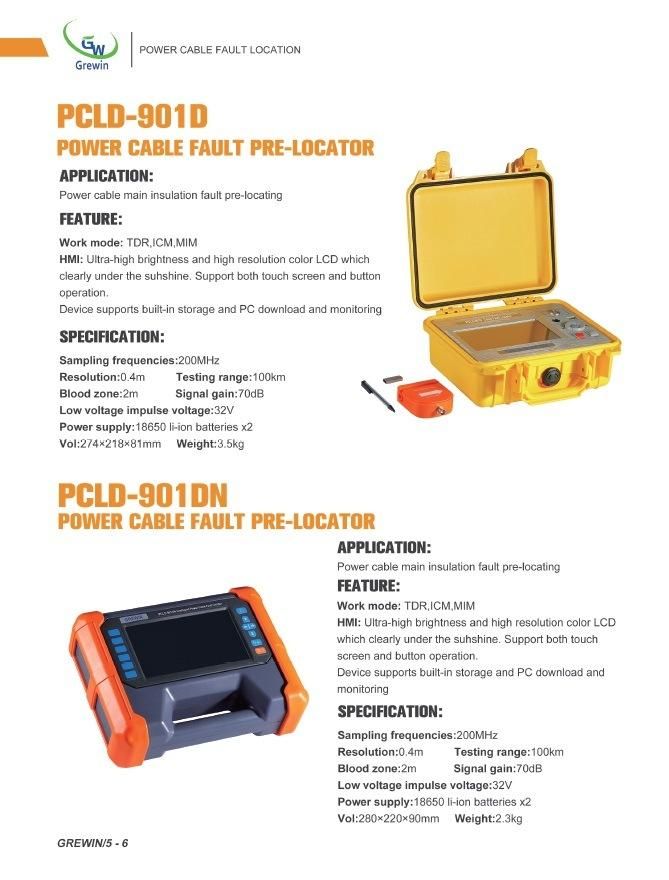

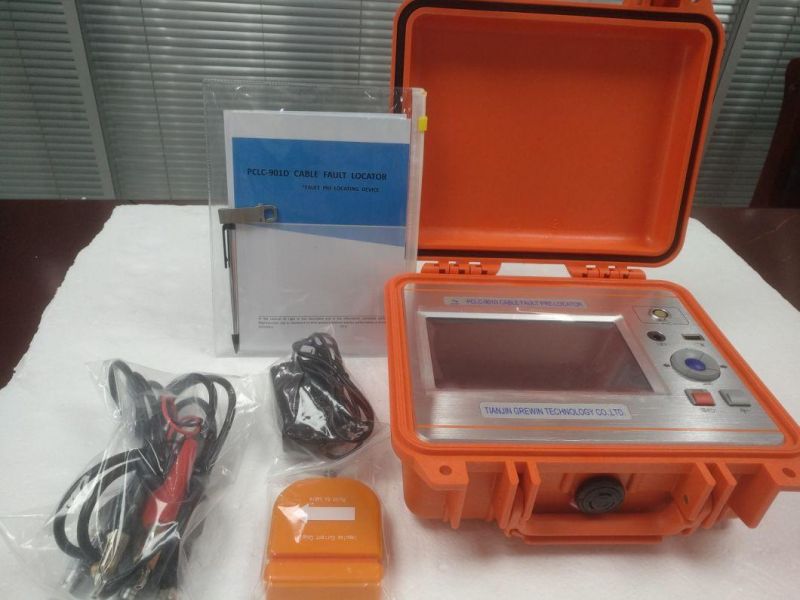

8. PCLC-901D Pre-locator:

1. Work mode: TDR,ICM, MIM;
2.HMI: Ultra-high brightness and support touch screen and download PC datas and monitoring;
3.Max test range: 100KM
