• Model NO.：SYD-510G
• Refrigeration：New-type refrigeration compressor
• Working chamber：Two baths in one chamber with same temperature
• Power supply：AC (220±10%)V, 50Hz
• Total power consumption：1800W
• OEM：Yes
• Transport Package：by Carton or by Wooden Case
• Specification：68*53*55cm
• Trademark：SHANGYI
• Origin：China
• HS Code：9021809090
• Production Capacity：1000 Sets,Month

Summary
This instrument is newly designed and made as per national standard of People's Republic of China GB/T510 Standard Test Method for Solidifying Point of Petroleum Oils, GB/3535 Standard Test Method for Pour Point of Petroleum Oils, GB/T6986 Standard Test Method for Cloud Point of Petroleum Oils and SH/T 0248-2006 Standard Diesel and Domestic Heating Fuels - Determination of Cold Filter Plugging Point

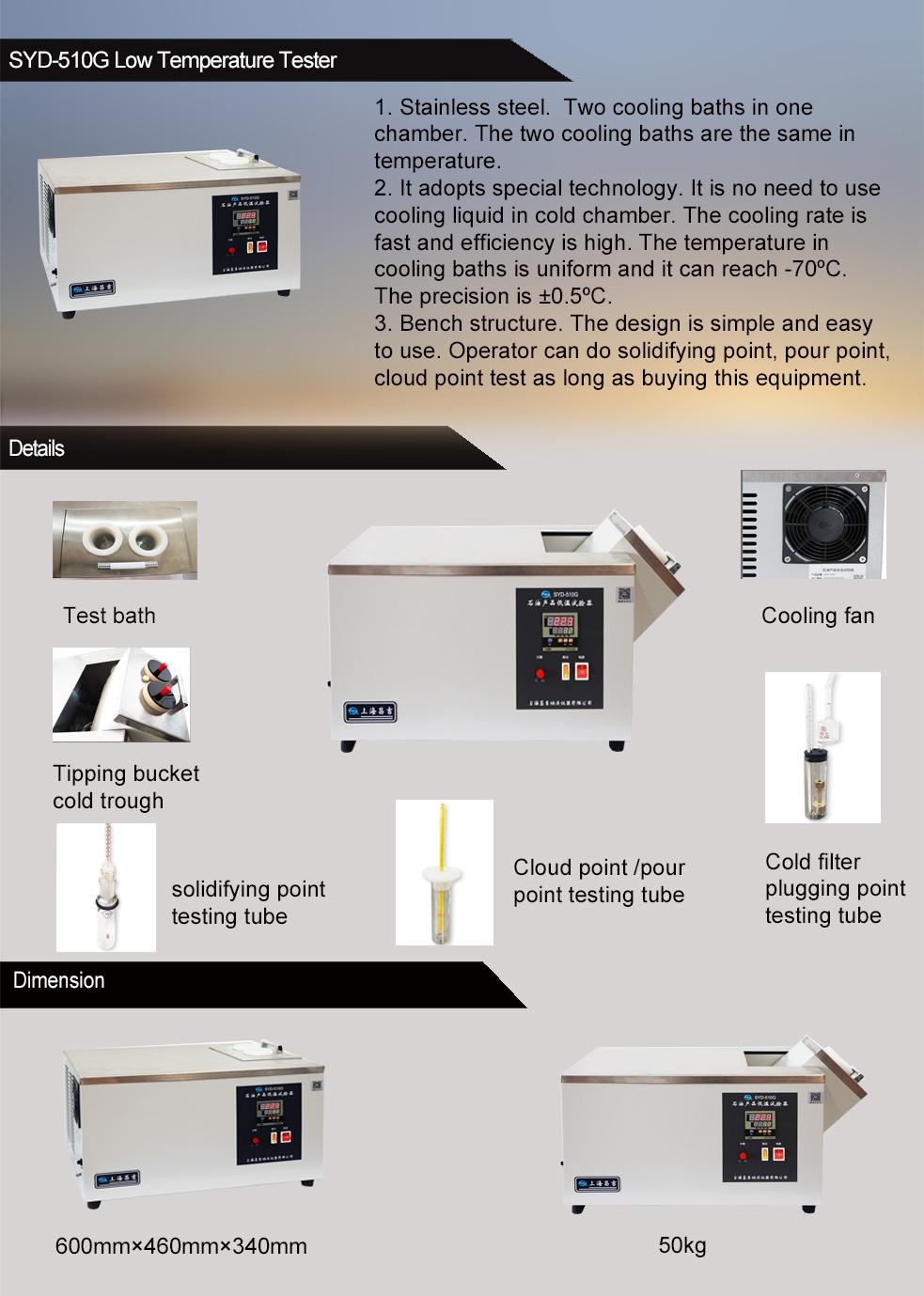

Main technical specifications
1. Power supply: AC(220±10%), 50Hz
2. Working chamber: Two test baths in one chamber. The temperatures are the same.
3. Temperature range: -70ºC~0ºC
3. Temperature range: -70ºC~0ºC
4. Temperature control accuracy: ±0.5ºC
5. Refrigeration: New-type refrigeration compressor
6. Ambient temperature: 15ºC~35ºC
7. Relative humidity: ≤85%
8. Power consumption: ≤1000W
9. Dimension:620mm×460mm×340mm

 Full set and technical documents

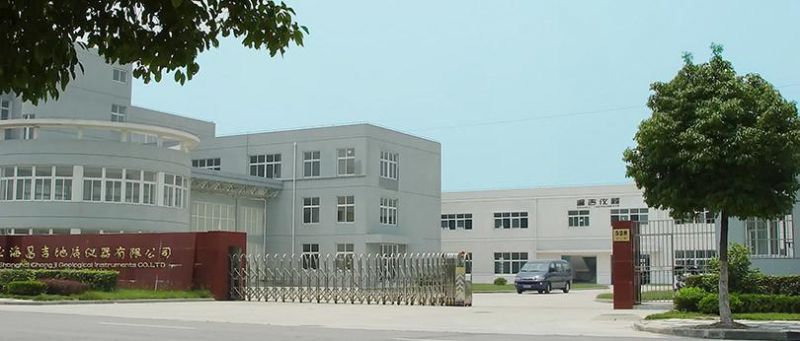

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of  the National Geology and Mineral Resource.
Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji Geological Instrument Co.Ltd mainly develops and produces petroleum products analyzing instruments ,  highway detecting instruments, geological instruments and lab instruments. Shanghai Changji is with strong technical strength,  large service team and sales, and strict quality manage system makes the market superior of  Changji.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.

1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
