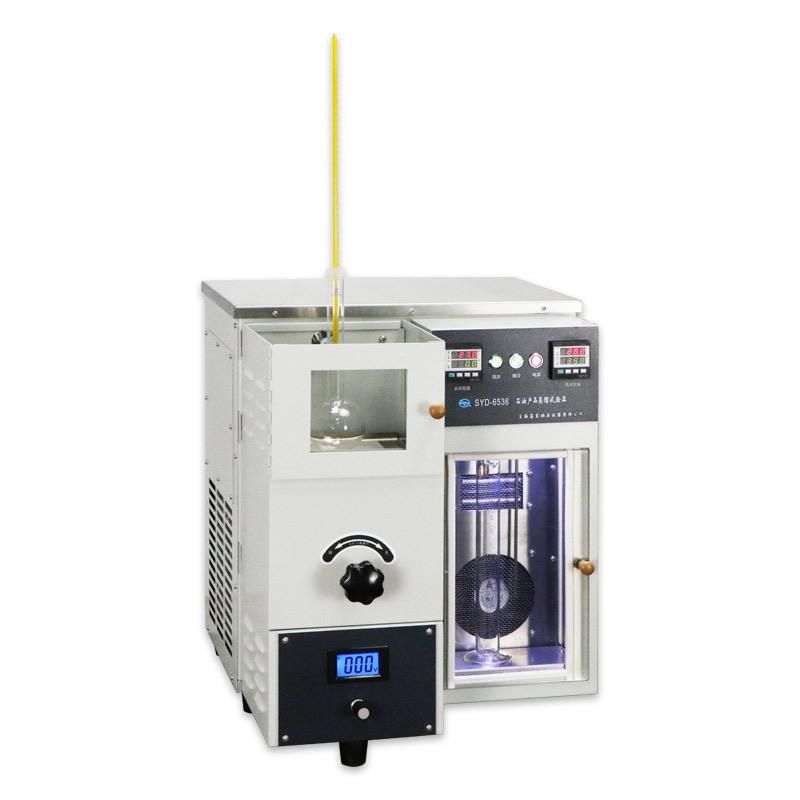

ASTM D86 SYD-6536C Low Temperature Petroleum Product Distillation Tester(Sigle unit)
Shanghai Changji Geological Instrument Co., Ltd.- After-sales Service：YES
- Warranty：1 year
- Standard：ASTM D86
- OEM：Yes
- Power supply：AC(220±10%)V, 50Hz
- Heating power：≤2800W
Base Info
- Model NO.：SYD-6536C
- Receiving cylinder：100 ml. Scale division 1 ml
- Distillation flask：125 ml
- Thermometer：(-2 to 300 ºC and (-2 t0 400)
- Flask support board：Sic. 32mm, 38mm, and 50mm
- Temperature controller range：0 ºC to 60 ºC
- Temperature controller accuracy：±0.5ºC
- Display：LED
- Refrigerated compressor：New-type refrigeration compressor
- Transport Package：by Carton or by Wooden Case
- Specification：61.5*51*62cm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.
Main technical features1. It adopts a special heating furnace to ensure the safety. The heating power can be adjusted continuously.
2. The rising up and lowering down of distillation flask can be adjusted free by lifting device.Flexible and convenient to operate.
Main technical specifications1. Power supply: AC(220±10%)V, 50Hz;
2. Heating power: ≤2800W;
3. Receiving cylinder: 100 ml. Scale division 1 ml.
4. Distillation flask: 125 ml, as per GB/T6536 and ASTM D86.
5. Thermometer: Total immersion. They are from ( -2 to 300 )ºC and from (-2 to 400) ºC. The scale divisions of them are 1 ºC.
6. Flask support board: Sic. Diameters of holes are φ32mm, 38mm, and 50mm.
7. Temperature controller:
(1) Range: 0 ºC to 60 ºC
(2) Accuracy: ±0.5ºC
(3) Display: LED
8. Ambient temperature: 15ºC~35ºC
Relative humidity: ≤85%
9. Refrigerated compressor: New-type refrigeration compressor
Full set and technical documents

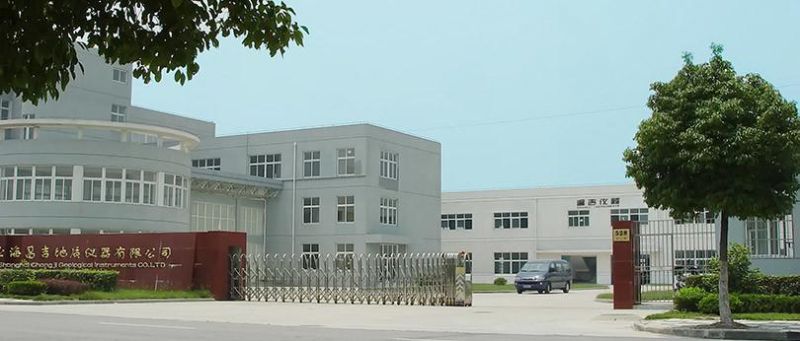

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

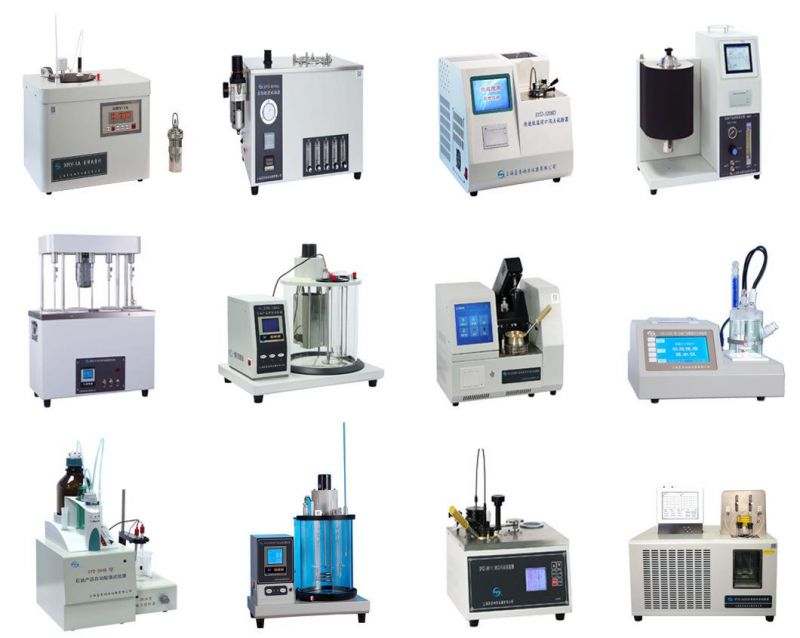

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
