• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Power：7.5kw
• Testing Speed：10-200r,Min
• Transport Package：Wooden Box
• Trademark：CHENGYU
• Origin：China
• HS Code：9024109000
• Production Capacity：100

1.Product overview
TPJ-W5A Microcomputer-controlled shock absorber indicating power fatigue comprehensive testing machine is mainly used for indicating power test and fatigue life test of drum type shock absorber and damper used by automobile, car seat, car, special vehicle and other motor vehicles. The machine has reasonable structure, simple and reliable, test space adjustment, test stroke adjustment accurate, convenient; Convenient and reliable clamping of the specimen; The machine runs smoothly and is easy to maintain.


2.Dynamic and static fatigue testing machine, Servo Hydraulic Universal Fatigue Testing Machine, Fatigue Tester

(1) Main Features
Computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.

This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.

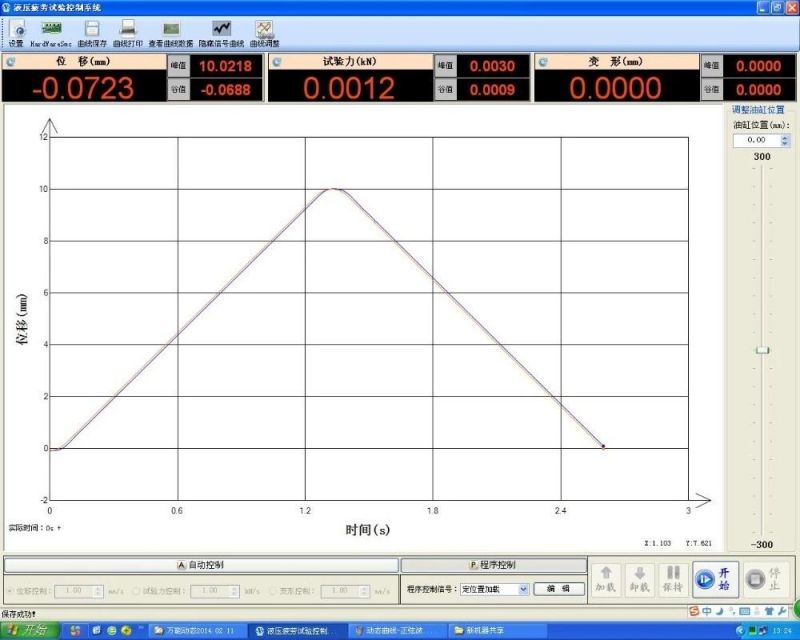

Fully digital measurement and control system implementation force, displacement, deformation closed loop control, test software under WINDOWS Chinese working environment, powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.


(2) Control System

1)Full digital hydraulic servo controller and software system: The all-digital hydraulic servo controller communication module supports Ethernet communication protocol to realize dynamic data exchange with the microcomputer.
2)Force measurement: for bridge precision power supply: ±5V dual power supply; sampling frequency: 5kHz; sampling effective resolution: ± 50,000 codes; signal passband: greater than 1kHz;
3)Displacement measurement channel: optional analog voltage (differential transformer), incremental digital coding (grating scale, rotary encoder), absolute digital coding (magnetostrictive)
4)Extended measurement channel (deformation measurement): extensometer channel (analog voltage channel), 3 incremental digital code channels.

3.Product parameters4.Product feature(1) The amplitude and frequency of the shock absorber can be adjusted freely.
(2) Vibration number and frequency digital display.
(3) Preset test times automatically stop, higher efficiency.

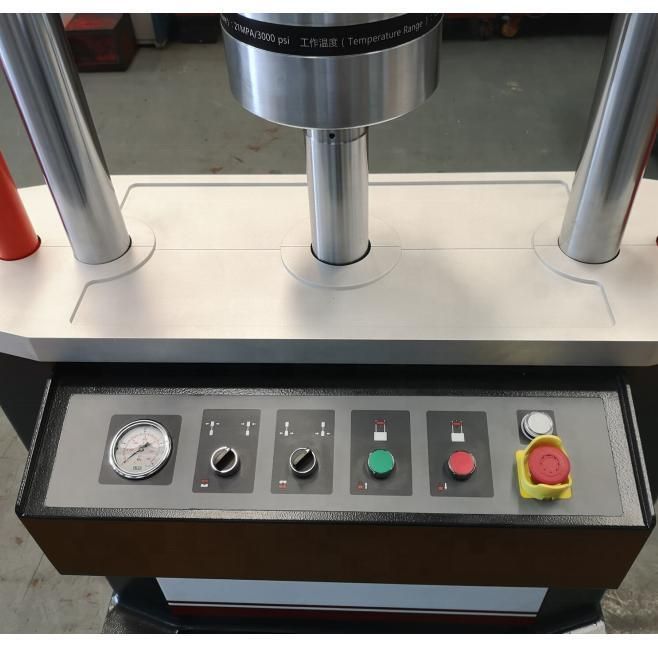

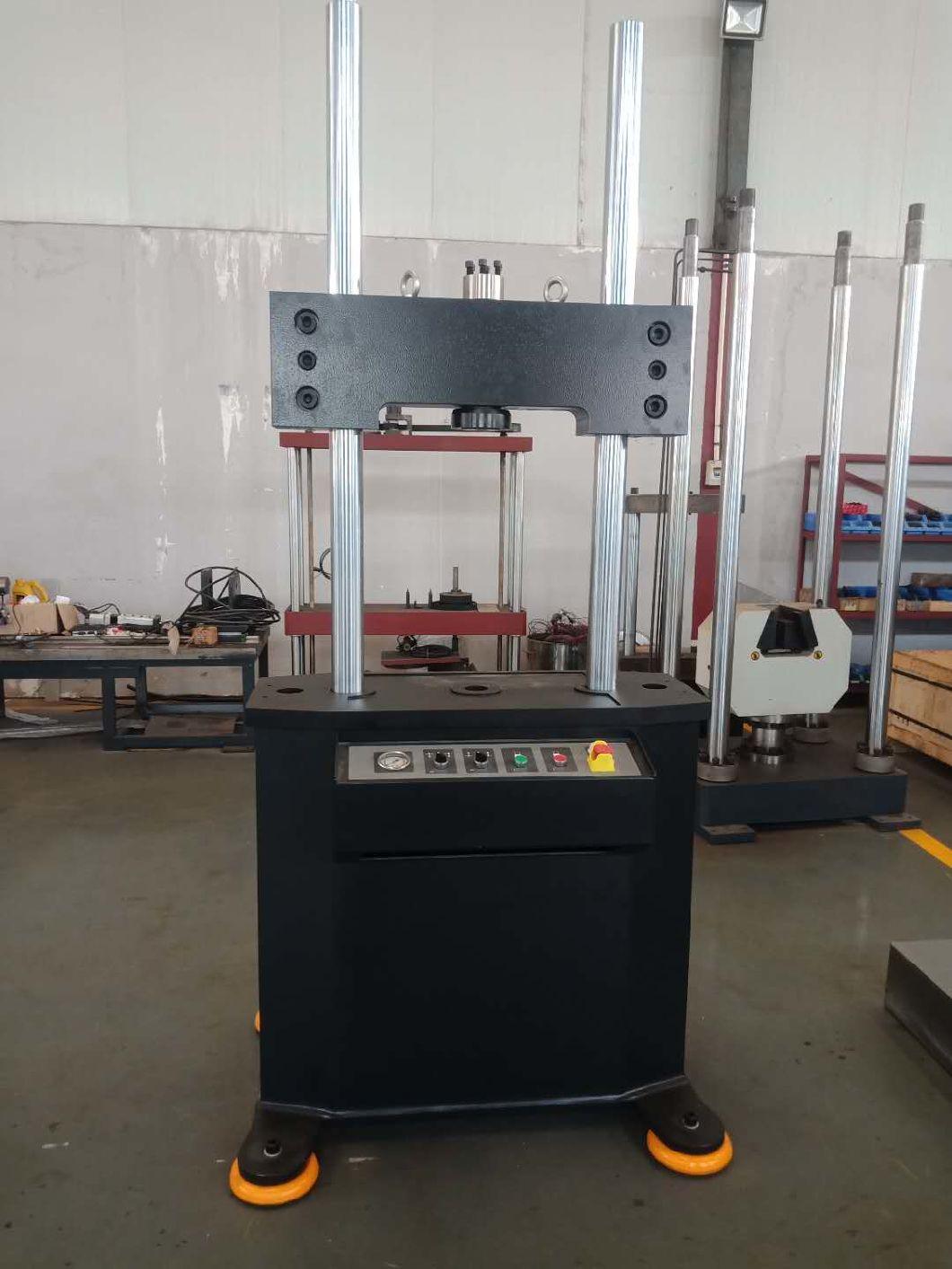

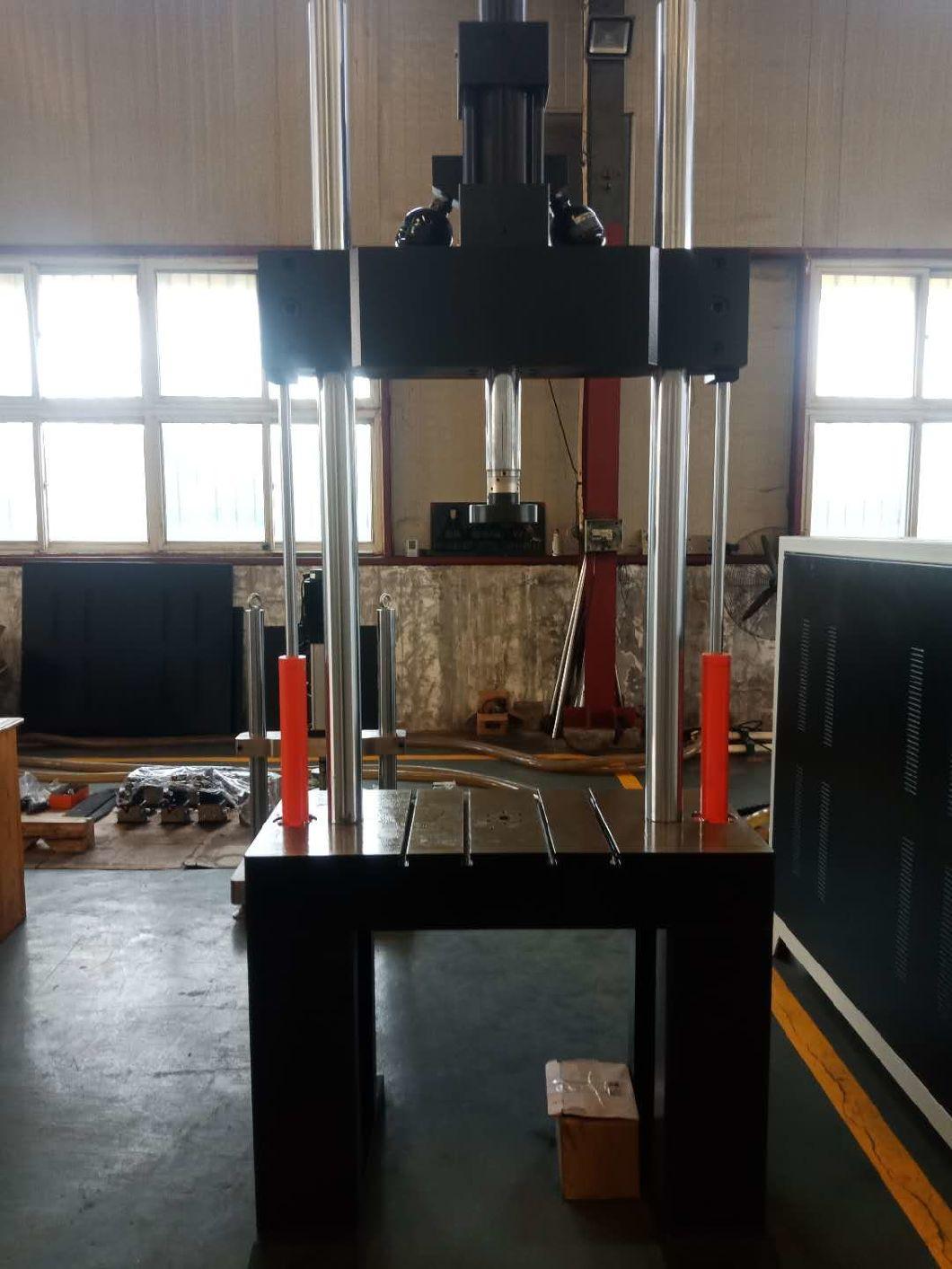

 5.Pictures
