• Model NO.：HVSG-500GN
• Output Surge Voltage：0-35kv, Continuously Variable
• Max. Power Energy：1000j 2000j 500j
• Discharging Mode：Manual, Period and DC Optional
• Specificaion 1：0-10kv 500j 10UF
• Specificaion 2：0-32kv 1000j 2UF
• Specificaion 3：0-35kv 2000j 4UF
• No Hv Leakage：Auto Discharging After Power off
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：RoHS, CE
• Trademark：Grewin
• Origin：China
• HS Code：8543201000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. HVSG-500GN Output Surge Voltage 0-35kv, Continuously Variable Max. Power Energy 1000j 2000j 500j Discharging Mode Manual, Period and DC Optional Specificaion 1 0-10kv 500j 10UF Specificaion 2 0-32kv 1000j 2UF Specificaion 3 0-35kv 2000j 4UF No Hv Leakage Auto Discharging After Power off Transport Package Export Standard Carton or Customize Strong Pallet Specification RoHS, CE Trademark Grewin Origin China HS Code 8543201000 Production Capacity 100 PCS Per Month

Product Description

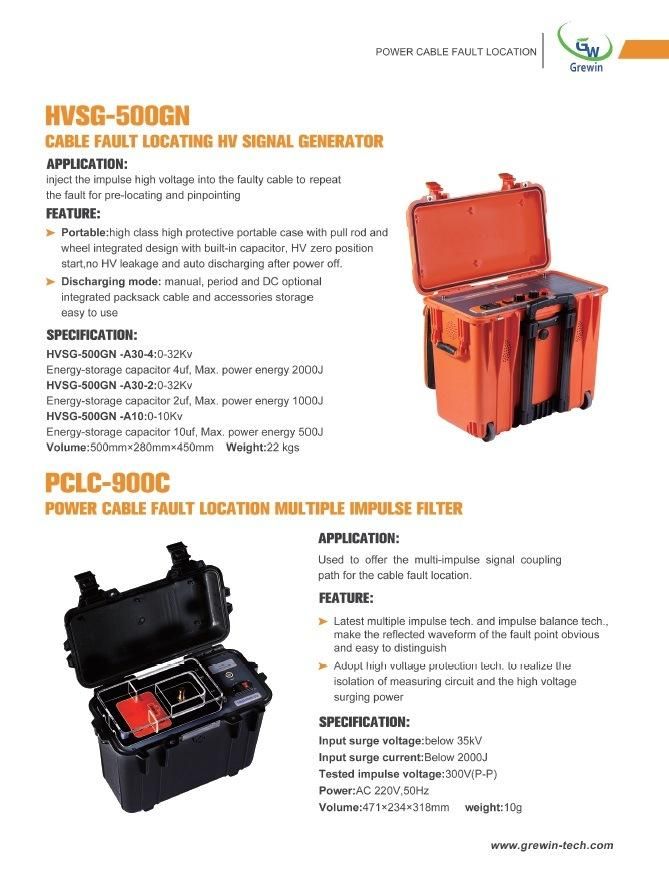

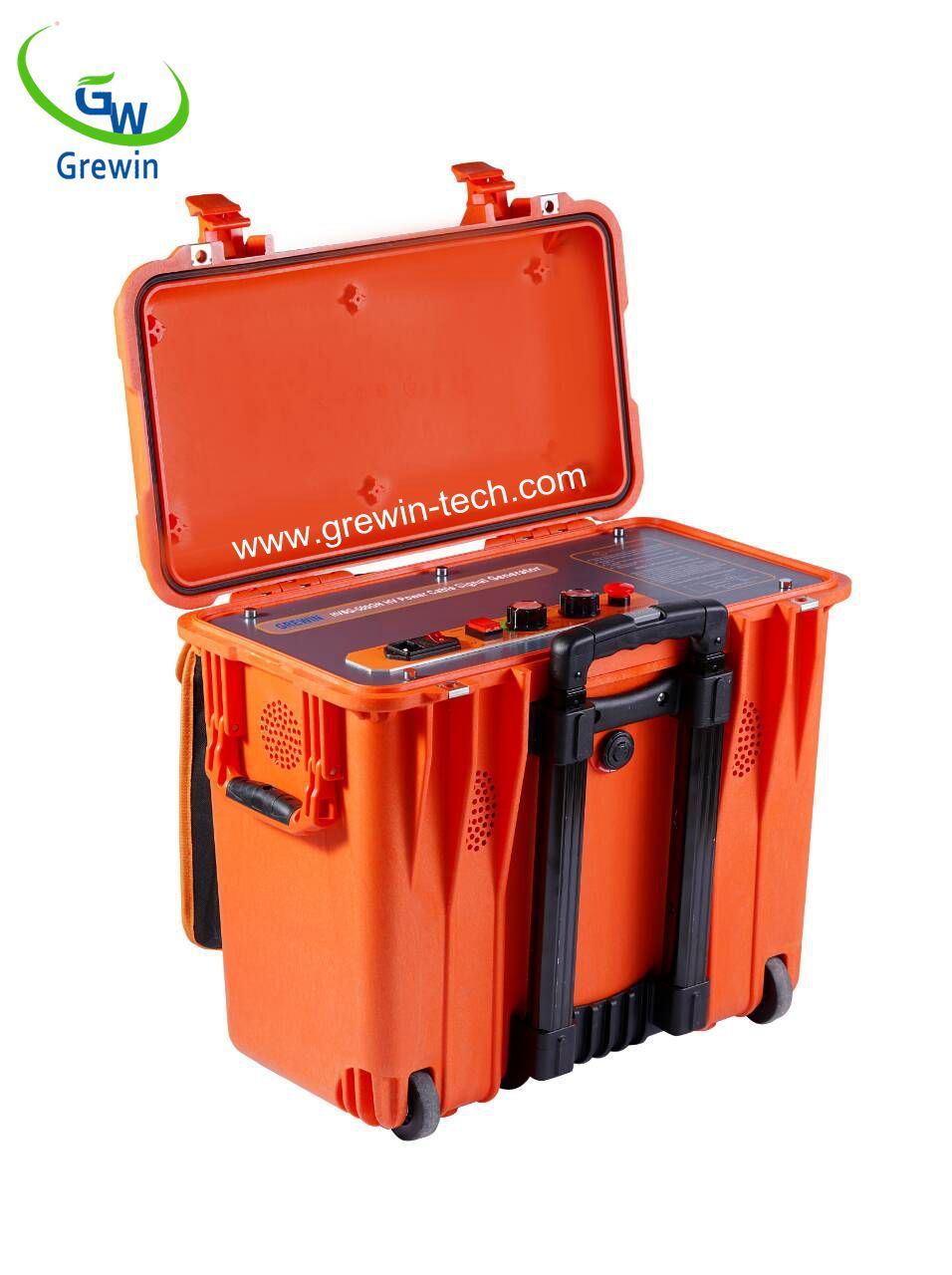

GREWIN HVSG-500GN 0~35kv 2000j Cable Fault Tester Surge Signal Generator Tester for cable fault

Product Description:
1.Introduction
The HVSG-500G Integrated High Voltage Signal Generator is used to offer signal source for the fault locating and pinpointing. Together with the
 PCLC 910D&PCLD-901P items, it's easy to do:

           (1)Impulse current distance measurement
           (2)Sound magnetic synchronous method for pinpointing


Output surge voltage	0~35KV, Step variable
Max. power energy	2000J
Energy-storage capacitor	4μF
Power	AC 220V.50Hz
Volume	400mm×460mm×300mm
Weight	25 kgs
Operating Temperature	-10ºC-40ºC
Humidity	5-90%RH
Elevation	<4500m

2.We have two ranges about high voltage generator as below:

1). 0-10KV 500J 10uf
2). 0-32kv  1000J 2uf
3)0-35KV 2000J 4uf

3.Function feature:
Integrated design with small size and light
Different sub-models with difference specification
Imported safety case,professional and portable
Built in energy-storage capacitor without HV leak and safe operation
HV directly connect with the faulty cable, easy wiring and safe operation
Built-in high power quick charging and short discharge period
Multiple safety protection support Zero position start and release HV power energy after power off
Multiple working methods of single,period and DC
Step adjustable voltage with LED indication
4.Specification

Output surge voltage	0~35KV, Continuously variable
Max. power energy	1000J
Energy-storage capacitor	2μF
Power	AC 220V.50Hz or 230V  60HZ
Volume	400mm×460mm×300mm
Weight	25 kgs
Operating Temperature	-10ºC-40ºC
Humidity	5-90%RH
Elevation	<4500m

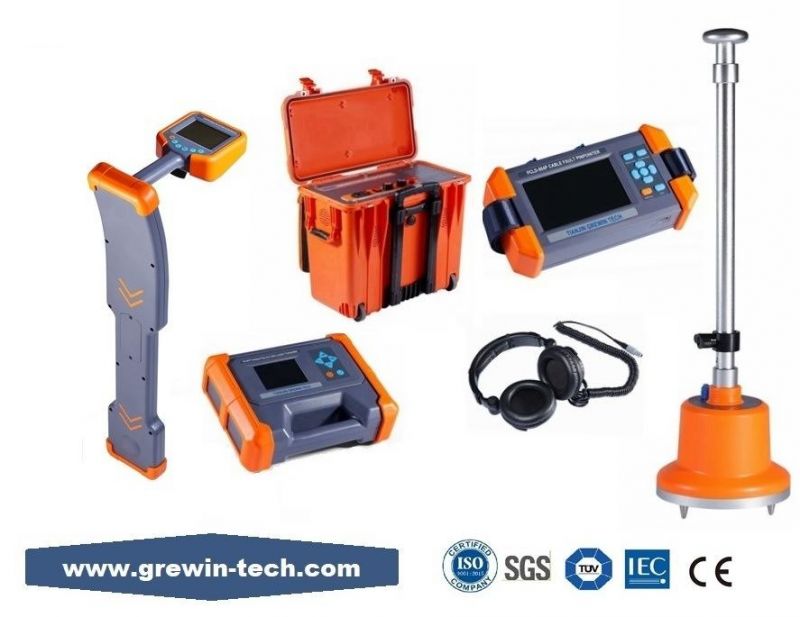

5.Product Pictures:

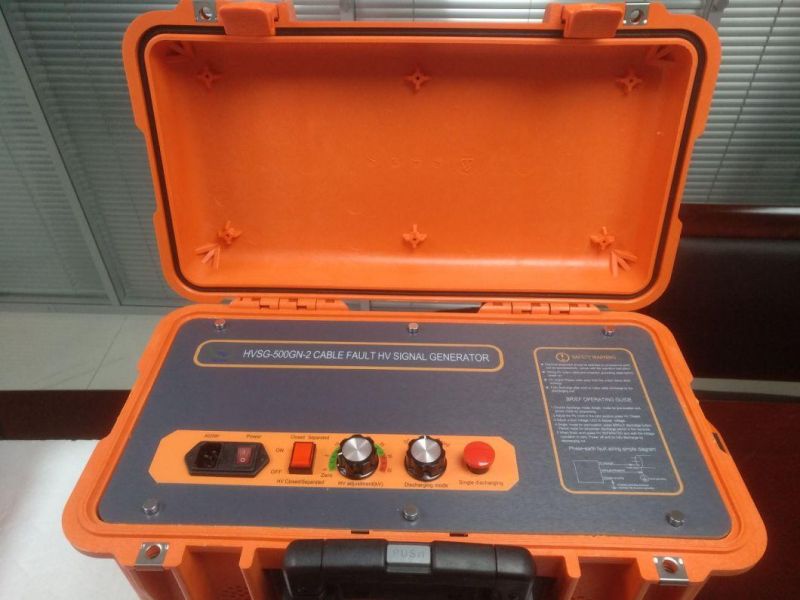

HVSG-500GN-2  1000J 4UF CABLE FUALT LOCATING HV SIGNAL GENERATOR

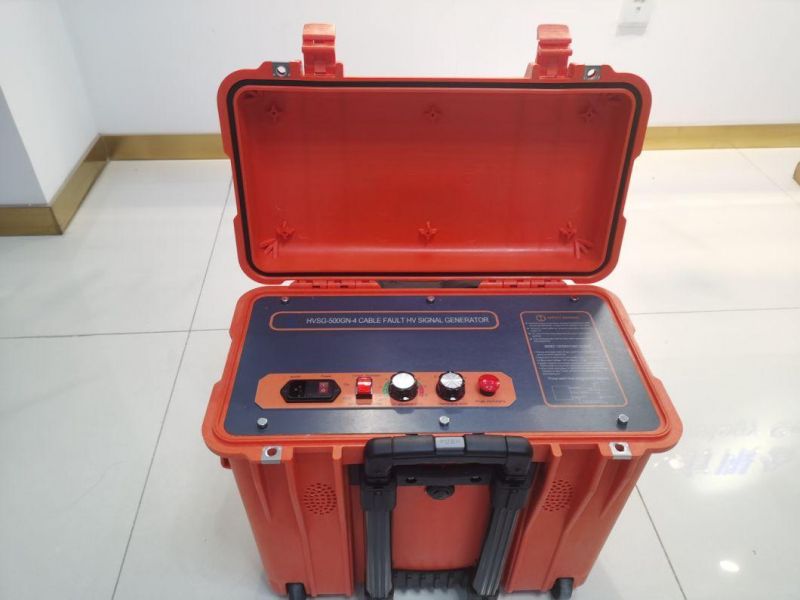

HVSG-500GN-4  2000J 4UF CABLE FUALT LOCATING HV SIGNAL GENERATOR

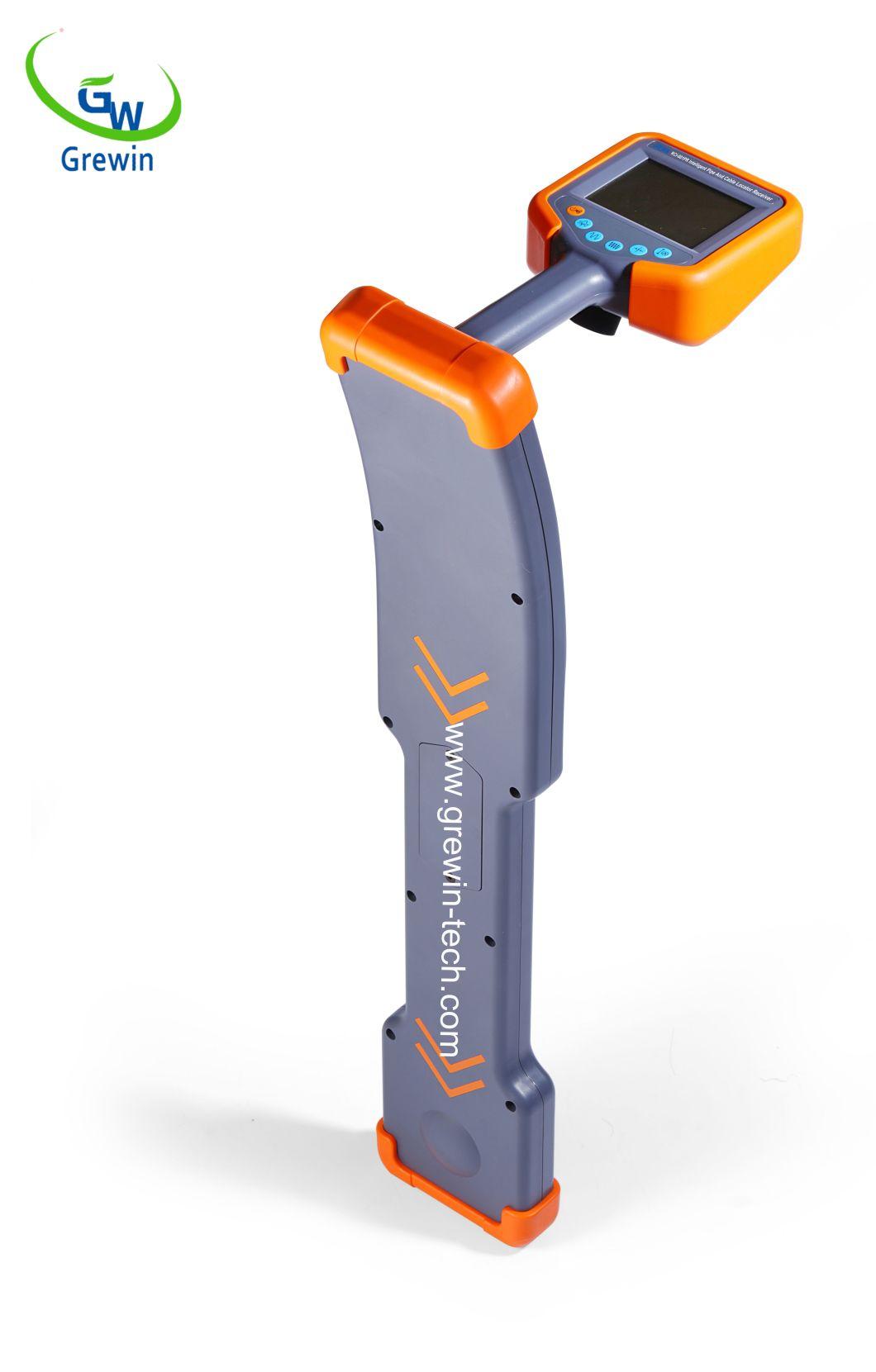

6. Our pipe locator has below advantages:

1.The max transmitter power is 12W .
2.We add a booster to increase the transmission signal strength and make the test more accurate.
3. Frequency:
Grewin:GWRCI-601P have multi frequency and max frequency can up to 197Khz
 We can give you warranty period and good after sales sevices.

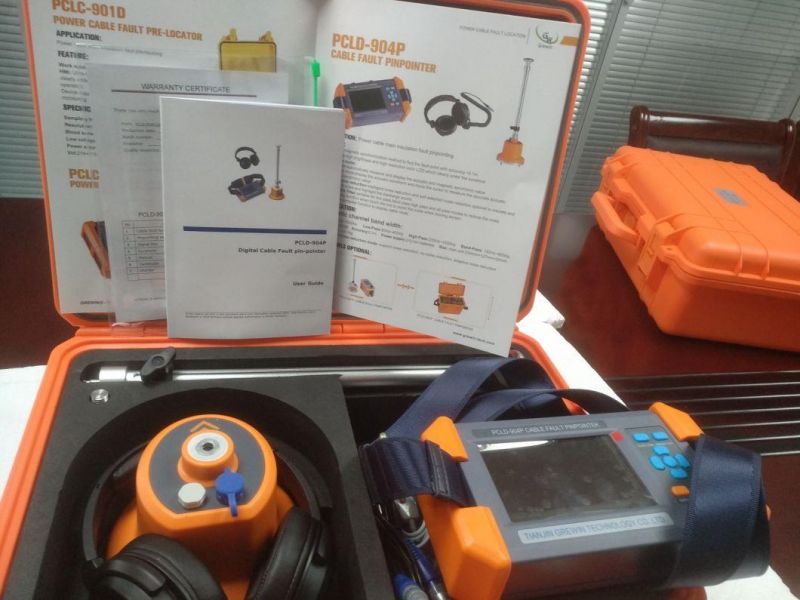

7.PIN POINTER CABLE FAULT LOCATOR ADVANTAGES:

1.The test accuracy is < 0.1M and high class in our market ;
2. It is also use HUAWEI charger etc.
3.Sound magnetic synchronous method and filter etc.

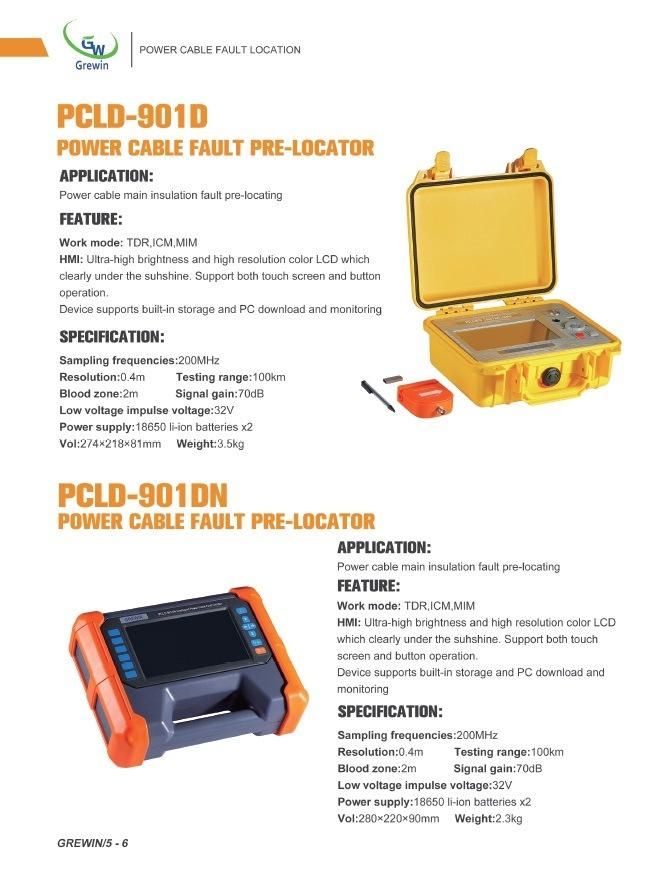

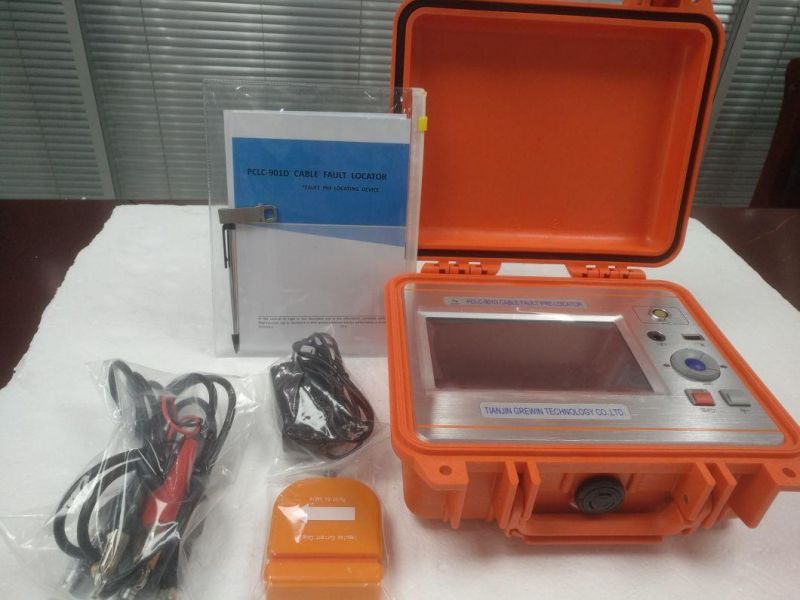

8. PCLC-901D Pre-locator:

1. Work mode: TDR,ICM, MIM;
2.HMI: Ultra-high brightness and support touch screen and download PC datas and monitoring;
3.Max test range: 100KM

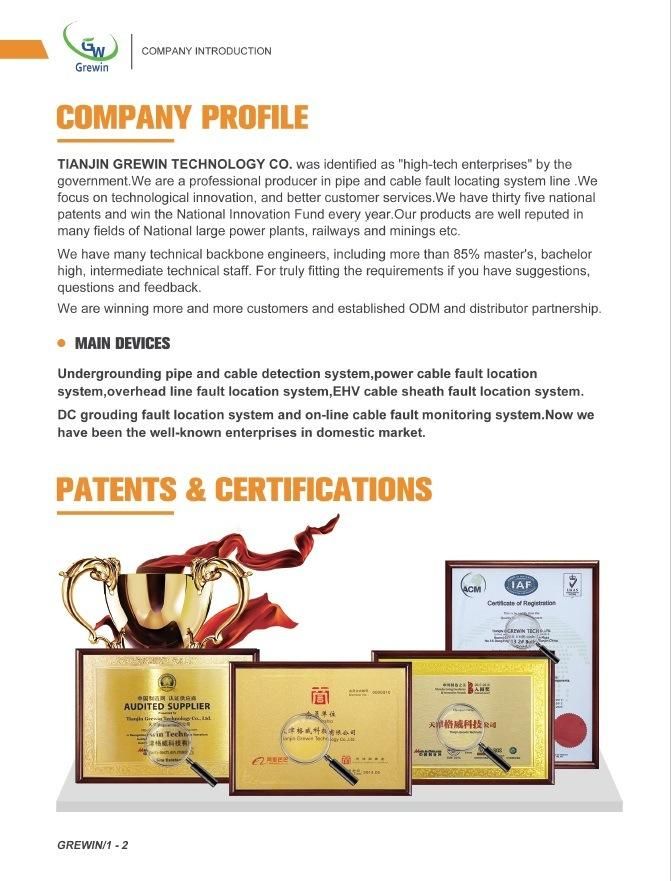

Company introduction:

3.Terms of Shipment:
Within 10 working days after received related prepayment or L/C.

4.Payment terms:
(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
delivery.
(2) By irrevocable L/C at sight, to be issued immediately against confirmed order.
(3)Payment by T/T, if order amount is less than USD 20,000.

5.Warranty:
(1)We provide 1 year warranty.
(2)If the product is defective, please notify us within 3 days of delivery.
(3)All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

6.Why choose us?
Quality and honest first!
A. Flexible service for diffierent transformers with high efficiency performance.
B. Over 40 years experience of transformer designing and producing.
C.100% test of every single product we produce from incoming material checking.
D. UL, CE, ISO9001:2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We deliver the quality you expect at consistently competitive prices
G.Transformer quality lifetime:10 Years.
H.Specialty Sales service:5 -10 Years

7.Flow chart of trading activities:



NO	Step	Days need
1	Request for quotation	1 day
2	Making quotations	1 day
3	Offer and counter offer	3 days
4	Sending and receiving samples	10 days
5	Sample confirmation	10days
6	Placing a firm order	1 day
7	Paying and receiving the down payment	1-4 day
8	Factory production & Quality inspection	15-20 days
9	Paying and receiving the balance	4 days
10	Delivery of goods	1 days

8.CONTACT:
Alice.Lee
Tianjin Grewin Technology Co.,Ltd.
Web:transformer.en.made-in-china.com
