Power Cable Fault Location Identification Path Tracing Depth Testing Equipment

Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
  • Warranty：12 Months
  • Usage：Network Cable Tester, Coaxial Cable Tester

Base Info

  • Model NO.：XHGX507
  • Test Region：Forming Cable
  • Power：Electricity
  • Certification：CE
  • Customized：Customized
  • Color：Black
  • Working Temperature：-10ºC+55ºC
  • Gain Control：Manual Adjustment, Dynamic Range of 100dB
  • Working Mode：Direct Connection Method, Coupling M
  • Transport Package：Wooden Case with Foam
  • Specification：700*280*170 (mm)
  • Trademark：XZH TEST
  • Origin：China
  • Production Capacity：2000PCS,Year
  • Package size per unit product：70.00cm * 28.00cm * 17.00cm
  • Gross weight per unit product：5.000kg

Description

Overview

Product Description

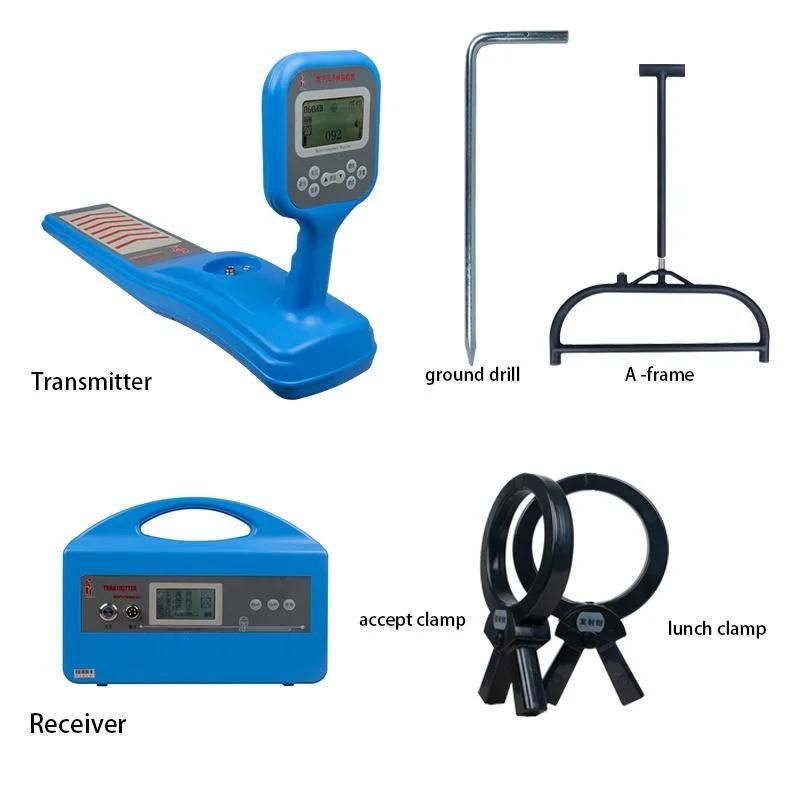

Detailed Photos

    Power Cable Fault Location Identification Path Tracing Depth Testing Equipment

Product Parameters



Transmitter Specifications

Product Nameequipment underground locatingFrequency: audio, radio, combined frequencyOperating modes:direct connection method, inductive method, coupling methodMatched load:5 ~ 3000 ohm impedance Show: four digitsPower Output:low gear (1W), high block (3W)Battery Type:8 One Battery continuous Operation: more than 8 hoursOverheat and over current:automatic protection


Receiver Specifications:


Frequency:Audio, RF, 50Hz AC frequency passive Antenna pattern:Trough method, maximum probe depth crest law: not less than 5 meters Signal strength: bar graphs, numbers range from 0 to 999
