• Model NO.：XHDJ706
• Test Region：Forming Cable
• Power：Electricity
• Certification：CE
• Customized：Customized
• Color：Black
• Data Storage：500 Groups
• Earth Resistance Range：0 to 30Ω
• Soil Resistivity Range：0 Ωm ~ 9999K Ωm
• Voltage Range：0 ~ 600V
• Test Frequency：128Hz
• Transport Package：Wooden Case with Foam
• Specification：350*280*170 (mm)
• Trademark：XZH TEST
• Origin：China
• Production Capacity：2000PCS,Year
• Package size per unit product：25.00cm * 20.00cm * 15.00cm
• Gross weight per unit product：3.000kg

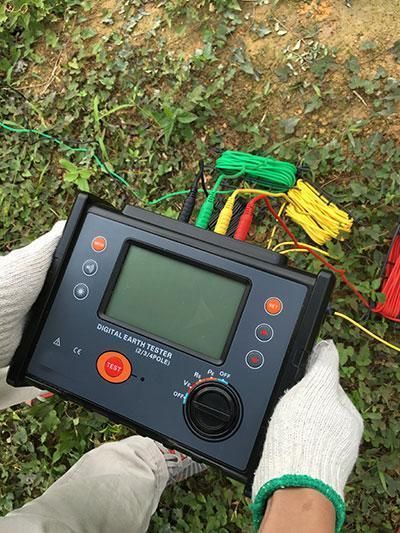

Digital Earth Resistance Soil Resistivity Tester is specially designed and manufactured for measuring earth resistance, soil resistivity, earth voltage, AC voltage. Adopting the latest digital and micro-processing technology, precise 4-pole, 3-pole and simple 2-pole method for earth resistance measurement, importing FFT and AFC technology, with a unique function of anti-interference capability and the ability to adapt to the environment, consistency of repeat testing, to ensure high precision, high stability and reliability for prolonged measure, which is widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection, industrial electrical equipment and other earth resistance, soil resistivity, earth voltage, AC voltage measurement.

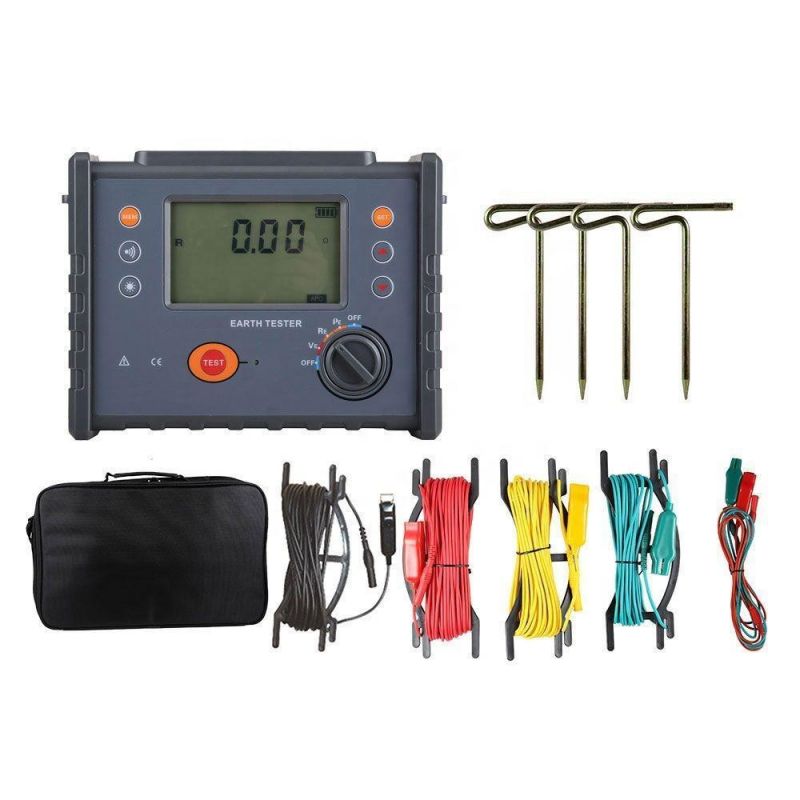

Digital Earth Resistance Soil Resistivity Tester is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires and others. The large LCD display of host machine is with blue backlight and bar graph indicating that can be seen clearly. At the same time it can store 300 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, alarm indicator, and with the functions like historical data access, reading, preservation, report forms, printing and so on.

Main features:
Function Measurement of 2/3/4-pole earth resistance, soil resistivity, earth voltage, AC voltage
Power Supply DC 9V(Zi-Mn dry battery R14S 1.5V 6 PCS, continuous standby for 300 hours )
Measurement Range Earth Resistance: 0.00Ω-30.00kΩ
Soil Resistivity: 0.00Ωm-9000kΩm
Measuring Mode Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement
Measuring Method Earth Resistance: rated current change-pole method, measurement current 20mA Max
Soil Resistivity: 4-pole measurement (Wenner method)
Earth Voltage: average rectification(between P(S)-ES)
Power Consumption Standby: about 20mA (Backlight shut off)
Boot and with backlight: about 45mA (25mA without backlight)
Measurement: about 100mA (Backlight shut off)
Weight Total weight: 4.5kg (including package)
Tester: 1443g (including battery)
Tesing wires: 1560g
Auxiliary earthing rods: 935g (4pcs)
Working Temperature & Humidity -10ºC-40ºC, below 80%rh
Storage temperature & humidity -20ºC-60ºC, below 70%rh
Overload Protection Measuring earth resistance: between each interfaces of C(H)-E,P(S)-ES, AC 280V/3 seconds
Insulation Resistance Over 20MΩ (between circuit and enclosure it is 500V)
Withstanding Voltage AC 3700V/rms (Between circuit and enclosure)
Electromagnetic Features IEC61326(EMC)
Protection Type IEC61010-1 (CAT 300V,CAT IV 150V,Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004

Packaging: Wooden case filled with foam

Shipping: by Air, Sea, Express, etc.

Shipping time: 7-15 days if it's in stock.
