• Model NO.：GU-GTB-60
• Accuracy Grade：0.5
• Load Way：Gas Pressurized
• Loading Method：Air Driven
• Display：Needle
• Control：Manual Control
• Weight：0-100Kg
• Power Source：Pneumatic Air Driven
• Oil Cylinder Position：Under
• Theory：Reciprocating Pump
• Driven Pressure Range：Compressed Air of 3-10 Bar
• Pressure Source：Terek Air Driven Booster Pump
• Driven Piston Diameter：160mm
• Maximum Output Pressure：800bar Output Pressure
• Medium：Oxygen Helium N2o CO2 Argon
• Transport Package：Wooden Case
• Specification：55KG
• Trademark：TEREK
• Origin：Jinan
• HS Code：8413501090
• Production Capacity：9000pieces,Year

Product name

Pneumatic Air driven gas booster pump Pressurized transfer and filling equipment.

Model

GU-GTB-40

Pressure ratio

40:1

Drive air source pressure

3-8 bar.

Maximum outlet pressure

320 bar (46400 psi)

When the driven air pressure is 5.0bar

High pressure outlet pressure is 200bar.

When the driven air pressure is 6.0bar

High pressure outlet pressure is 240bar.

Min gas inlet pressure

15 bar

Max gas inlet pressure

320 bar

Outlet pressure Control unit

Drive air regulator valve

Power source

TEREK gas booster pump

Pressure control accuracy

less than 1%F.S;

Pressure measurement accuracy

0.4 pressure gauge

Valves and piping

High pressure needle valve and stainless steel piping

Weight

38 KG

Export wooden case Weight

45 KG

Equipment Dimension

580*450*570 mm

Packing size:

610*500*600 mm

Packing Specifications

Standard export wooden case

Connection size(inch) Gas inlet

NPT1/4

Connection size(inch) Gas Outlet

NPT1/4

Production time

12-15 days.

System configuration:

TEREK gas booster pump uses compressed air to drive large area end piston to small area end to get high pressure gas output.. Can be used for compressed air and other gas, the output pressure can be adjusted by inlet valve, The output can ensure gas is not contaminated. Automatic pressure maintaining. Driven by gas, No spark or Flame and No generating heat, Can use it in dangerous places.

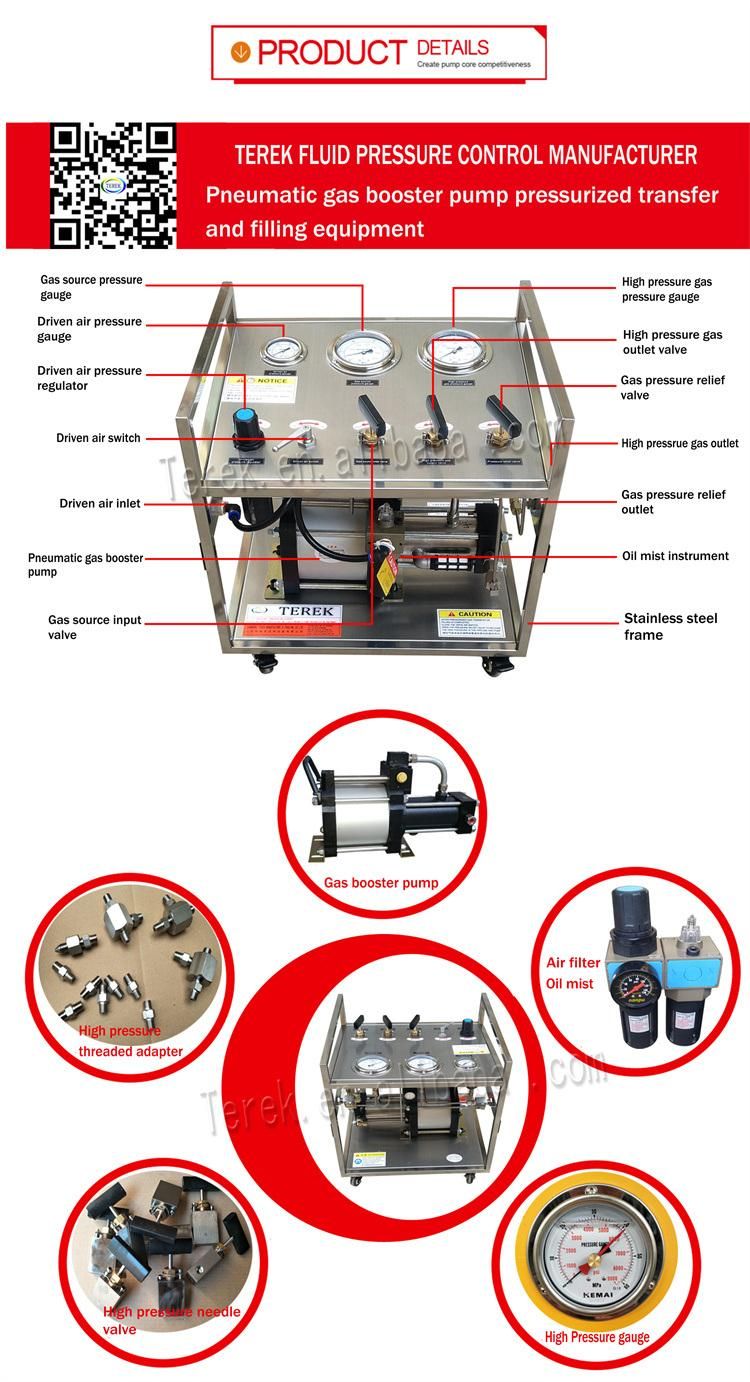

GU-GTB series gas booster unit control cabinet mainly includes one sets of GTB series air-driven gas booster pump, pressure gauges, air filter, gas inlet filter, control valves, air regulating valve, pipelines, cabinet, and pressure release valve etc.
In order to ensure the long-term use and stable working efficiency of the equipment, we provide a set of sealing accessories, repair kit, sealing tape, etc .

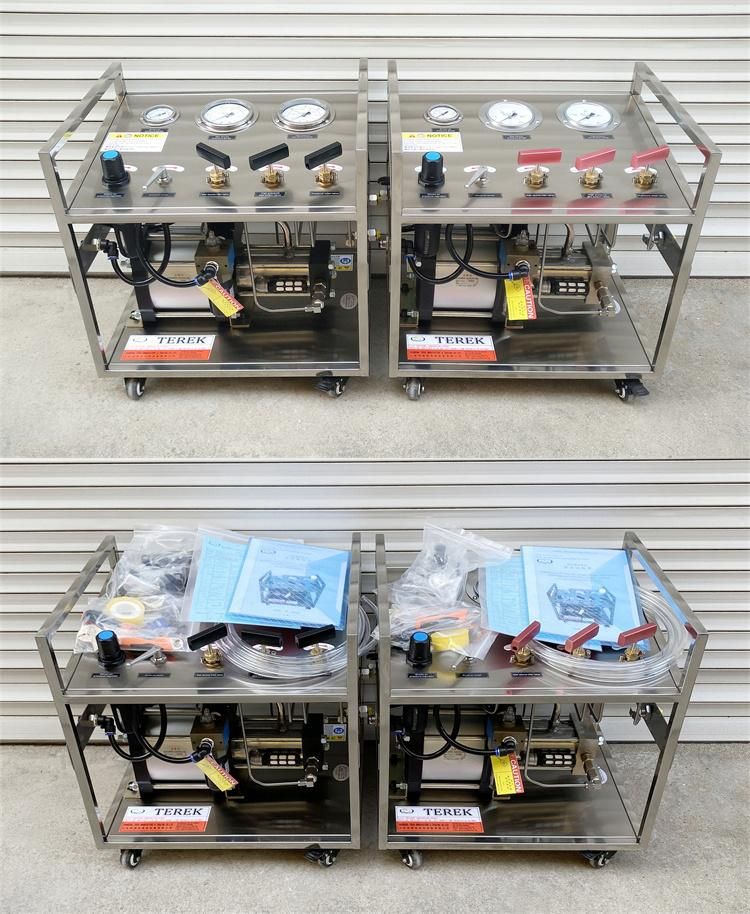

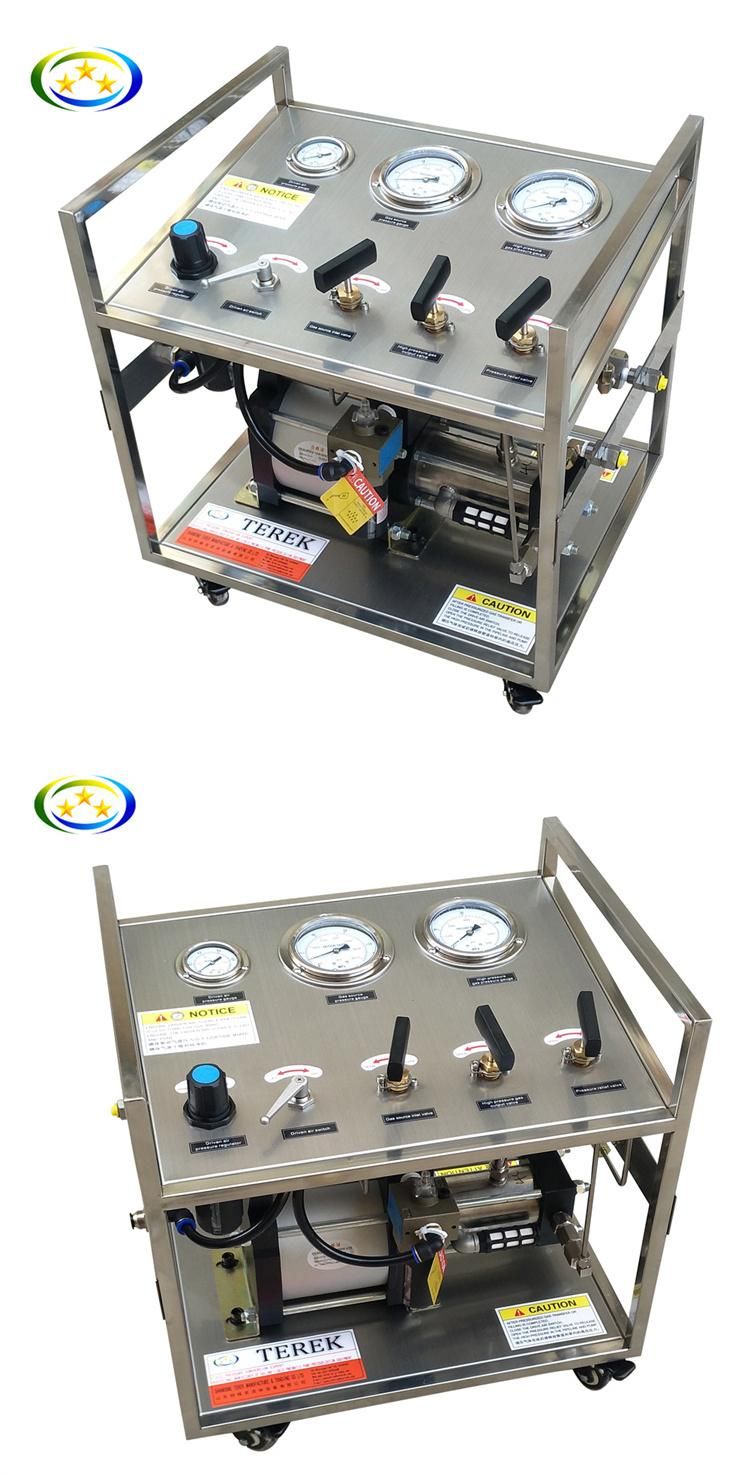

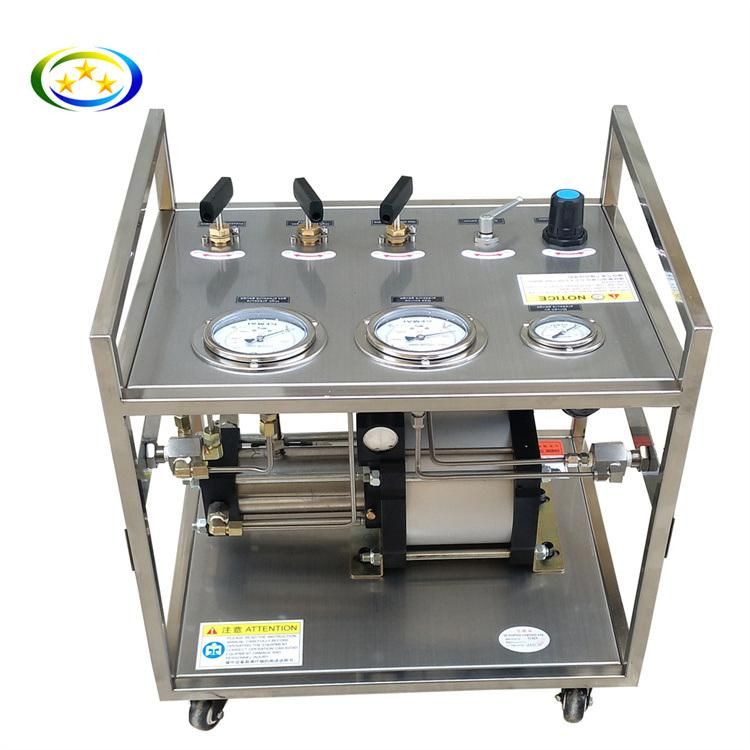

Detailed Images

Product advantages

1. All pipes and fittings are made of stainless steel to ensure a long life

2. The pump will stop working automatically when the output pressure reaches the preset value,

3. Maintain long working hours with no energy expenditure

4.No dissipated heat during the pressure holding phase

5.No risk for explosion and spark in oil and gas field

6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.

7. The working pressure can be adjusted by adjusting the pressure of the driven air. 8.Easy to install, move, use and maintain

Application Fields

1.Pressure test with gas

2.Gas transfer and filling(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.)

3.Charging of gas cylinder and accumulator with nitrogen

4.Supply for isolating gas systems

5. High pressure gas injection system for various industries

6.Transfer of oxygen cylinders

7.Charging of breathing air bottles

8.Leak test

9.Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, gas bottles and air craft components

Packaging & Shipping

Our Services

1. We'd like to provide our professional advice regarding machines, materials, packing and market for this product.

2. We'd like to customize special machine according to customer's request.

3. We'd like to help our customers for booking ship as customer request.

5. Operation manual will be provided after shipment.

6. We provide one year warranty.

7. Free wearing parts will be sent together with the machine .

8. Working video of the machine will be sent to you accordingly to your need.

All equipment and accessories are guaranteed for one year. Our sales staff and technical department provide permanent technical advice and operation guidance. If you have any questions about the operation of the equipment, please turn off the air source and equipment, check the instructions in time or contact the sales and service personnel. Thanks.

Equipment inventory and workshop

Company Information:

TEREK Company focus on high pressure fluid transfer all the time and supply perfect high pressure fluid transfer solution and service, Supplying high-quality product and service is the eternal aim of TEREK.
As the experienced manufacturer of industrial booster pump. The technology of air driven booster pump and pressurization system reach to a good level. Can pressurize almost any liquid, Such as oil,water ,corrosive liquid and chemical liquid applications. High quality seals, long service life available.
Based on the high quality of our products, reasonable prices and excellent after-sales service, we have gained a high reputation in this field of fluid pressure control equipment.

Our main products including Pneumatic Gas/Liquid Booster Pumps. Refrigerant booster pump and Air Amplifier. Fluid pressurized hydrostatic hydraulic pressure test equipment or high pressure Chemical fluid injection equipment. High pressure oxygen, hydrogen ,nitrogen, argon, Helium ,N2O,CO2 or other gas pressurized transfer refilling equipment or gas injection equipment. Pneumatic pump Glycerin Oil pressurized injection equipment. LPG / Propane and butane Pressurized transfer filling station equipment. Pipe/tube/valve/cylinder/Brake pipe, automobile pipe, aircraft hydraulic pipe ,pressure vessels Hydraulic Pressure Test Machine(Computer control or manual control or Intelligent digital display instrument) MCU Intelligent digital display instrument Pneumatic gas booster pump system leak test bench. Computer control /Intelligent instrument control Safety relief valve PSV test bench,Portable Safety valve test clamping table and test equipment. Online safety valve test instrument equipment.

FAQ

1.Q : Are you manufacturer ?

A: Yes, We are the manufacturer with continuous and improved R&D. Production, Quality Check and service supply.

2.Q : Can I get your price list ?

A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.

3.Q : Do you have stock for all items?

A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.

4.Q : What is payment terms ?

A: Sample order : 100% full payment before start to production;

Large order : 30% deposit first, 70% pay after see the BL copy ;

5.Q: Can give free sample ?

A : Free : if small spare parts and the cost not too much is ok ;

Not Free : the cost expensive and all the machine can not be free ;

6.Q : How long can be finished the goods ?

Delivery date: 10-15 working days after deposit paid

Two years warranty, when the products reach to destination.
