• Model NO.：LS123A
• Control：Manual Control
• Weight：About 110g
• Power Source：9V Alkaline Battery, 6f22
• Oil Cylinder Position：No
• Resolution：1%
• UV Peak Wavelength：365nm
• Power Supply：9V Alkaline Battery, 6f22
• Accuracy：+,-2%
• Packing Size：21*13*6cm,Box
• Color：Silver, Gray, Black Ect
• Usage：Solar Film Vlt, IR, UV Testing
• Name：Solar Film Transmission Meter
• Measure Range：0-19999uw,Cm2
• Item：Ls123A Infrared Power Meter
• Transport Package：One Piece One Small Box
• Specification：125mm*68mm*22mm(L*H*W)
• Trademark：ALILULA, New Vision
• Origin：Guangzhou, China
• HS Code：9030849000
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. LS123A Control Manual Control Weight About 110g Power Source 9V Alkaline Battery, 6f22 Oil Cylinder Position No Resolution 1% UV Peak Wavelength 365nm Power Supply 9V Alkaline Battery, 6f22 Accuracy +/-2% Packing Size 21*13*6cm/Box Color Silver, Gray, Black Ect Usage Solar Film Vlt, IR, UV Testing Name Solar Film Transmission Meter Measure Range 0-19999uw/Cm2 Item Ls123A Infrared Power Meter Transport Package One Piece One Small Box Specification 125mm*68mm*22mm(L*H*W) Trademark ALILULA, New Vision Origin Guangzhou, China HS Code 9030849000 Production Capacity 500000PCS/Month

Product Description

Best Price Infrared Power Meter Solar Film Transmission Tester (Ls123A)

LS123A Infrared Power Meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, VL and IR transmission values. This meter is self-contained light sources and self-calibration. No manual adjustment is needed. The users only need power on the meter and put the testing sample in the opening. The resulting performance data appear on the display.



Product Specification:

Product Item	Best Price  Infrared Power Meter Solar Film Transmission Tester (Ls123A)
Product Size	125mm*68mm*22mm(L*H*W)
Weight	about 110g
Measure Range	0-19999uW/cm2
Resolution	1%
Accuracy	+/- (4 % FS+2dgt)  FS:full scale
UV peak wavelength	365nm
Power supply	9V alkaline battery, 6F22

Operation:
1.Power on: When LS123A is off, press the "ON/Hold" key.

2.Power off: Press "ON/Hold" key and hold for longer than 3 seconds, LS123A will be powered off.

3.Auto off: No key is pressed in 3 minutes, and then LS123A will power off automatically.

4.Manual hold: If "ON/Hold" key is short pressed during measure status, transmission value will hold on the LCD, "Hold" symbol is displayed on the LCD.Press the "NO/Hold" key again will
release the "Hold" mode. When backing is off, press the "NO/Hold" key turn on the backlight.

5.Measurement: When the meter displays 100% for each value, insert the testing sample in the
" OPENING", VL, UV and IR transmission value will display simultaneously.

Feature:
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in
ONE device.

2. Small size, portable product for transmission value measurement.

3. Simple operation, putting the testing sample in the "OPENING", UV, Visible and Infrared transmission values of the sample will simultaneously display.

4. Using for window film, solar film and other transparence material testing. Test any sample thickness up to 8mm.

Note:
1. When battery symbol is empty and flash, pls replace the battery.
2. Keep the " OPENING" is empty before turn on LS123A. Otherwise LS123A will display testing interface, turn off and empty the " OPENING" and turn on again.
3.+/-2% Accuracy is for Colorless and transparent material, for colorful or optical coating product
ect, it will be low accuracy.
4. When not use for a long time(e.g several months), please take the battery out.
5. Avoid contact with corrosive agents and prevent from high temperature and high humidity environment.

Service:
1. The meter has one-year warranty. If the meter works abnormally, please send the whole meter
to the company for maintenance.
2. Provide users with spare parts and lifelong maintenance service.
3. Provide the users with the meter inspection service for free.
4. Free technical support for long term.

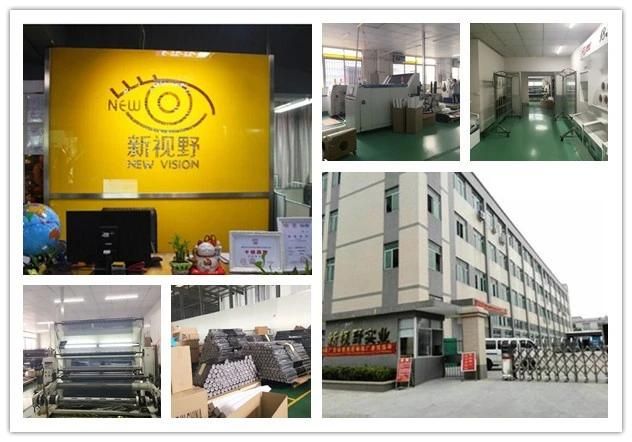

Welcome to visit our company
