Cables Halogen Acid Gas Content Tester by Combustion Method
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Online Training for Operation and Installation
- Warranty：12 Months
- Item Name：Combustion Cables Halogen Acid Gas Content Tester
- Functions：Measure Cable Halogen Acid Gas Content
- Measured Parameters：Halogen Acid Gas Volume, pH, Conductivity
- Reference Standards：IEC 60754-1, IEC 60754-2
Base Info
- Model NO.：CRA
- Application Field：Cable and Wire
- Features：Good Quality Cable Halogen Acid Gas Content Tester
- Dimension：1,220 mm (W) * 450 mm (D) * 560 mm (H)
- Furnace Dimension：500 mm (Wide), 300 mm (Dia′), 38 mm (Inner Dia′)
- Weight：60kg
- Quartz Glass Tube：700 mm (Wide), 37 mm (Inner Dia′)
- Gas Supply：Air Compressor
- Power Supply：220 V AC, 60 Hz, 10 a
- Delivery Lead Time：20 Days
- Trade Term：Fob, CIF, DDU, etc.
- Payment Term：30% in Advance, The Balance Before Delivery
- Transport Package：Cables Corrosion Test Apparatus in Veneer Casse
- Specification：500 mm (wide), 300 mm (Dia′), 38 mm (Inner Dia′)
- Trademark：DELTA
- Origin：China
- HS Code：9031809090
- Production Capacity：100 Sets Halogen Acid Gas Content Tester , Month
Description
Overview
Product DescriptionCRA Cables Halogen Acid Gas Content Tester measures gas volume of Halogen Acid (IEC 60754-1), pH concentration(PH Meter, Hydrogen ions, IEC 60754-2), Conductivity(IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800°c, IEC 60754-2: 950°c);
Especially, CRA Cables Halogen Acid Gas Content Tester can test both IEC 60754-1 and IEC 60754-2 standards by one equipment and mode select function;
IEC 60754-1 is halogen-free cable came from and including the polymer to halogenated compounds on the basis of the additive compounds emitted during combustion, except the fluoridation hydracids, it is measure for gas of halogen volume.
IEC 60754-2 is for electrical or optical cable from compounds emitted during the combustion of measure the gas of oxidation limit.
About reproducibility of the test, reliability and convenience of the user to insert the automatic feed devices for combustion boat, turning-rail for easy to put the specimen, the setting of automatic timer, air-filtering and etc.
Product Parameters
Especially, CRA Cables Halogen Acid Gas Content Tester can test both IEC 60754-1 and IEC 60754-2 standards by one equipment and mode select function;
IEC 60754-1 is halogen-free cable came from and including the polymer to halogenated compounds on the basis of the additive compounds emitted during combustion, except the fluoridation hydracids, it is measure for gas of halogen volume.
IEC 60754-2 is for electrical or optical cable from compounds emitted during the combustion of measure the gas of oxidation limit.
About reproducibility of the test, reliability and convenience of the user to insert the automatic feed devices for combustion boat, turning-rail for easy to put the specimen, the setting of automatic timer, air-filtering and etc.
Product Parameters
- Features

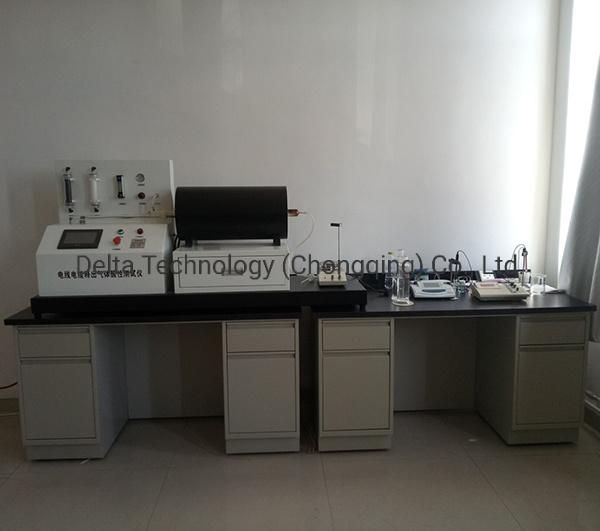

- Reference StandardsProduct ShowTo equiped with some test equipment, CRA Cables Halogen Acid Gas Content Tester can measure gas volume of Halogen Acid, pH and conductivity of the gas released from the cable.
- Reference StandardsProduct ShowTo equiped with some test equipment, CRA Cables Halogen Acid Gas Content Tester can measure gas volume of Halogen Acid, pH and conductivity of the gas released from the cable.
