• Model NO.：IEC60529
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Delivery Time：10-20days
• Standard：IEC60529
• Product Name：IP Code Rain Test Chamber
• Water Flows：1mm or 3mm,Min
• Transport Package：Safety Wooden Box
• Specification：iec60529
• Trademark：bnd
• Origin：China
• Production Capacity：100PCS Per Month

IPX-0 No special protection IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.Unit is placed in its normal operating position. IPX-2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position. IPX-3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min. IPX-4 Protected against splashing water - Same as IPX-3 but water is sprayed at all angles. IPX-5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters. IPX-6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters. IPX-7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter. IPX-8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.

IPX 12A Rain Test Chamber

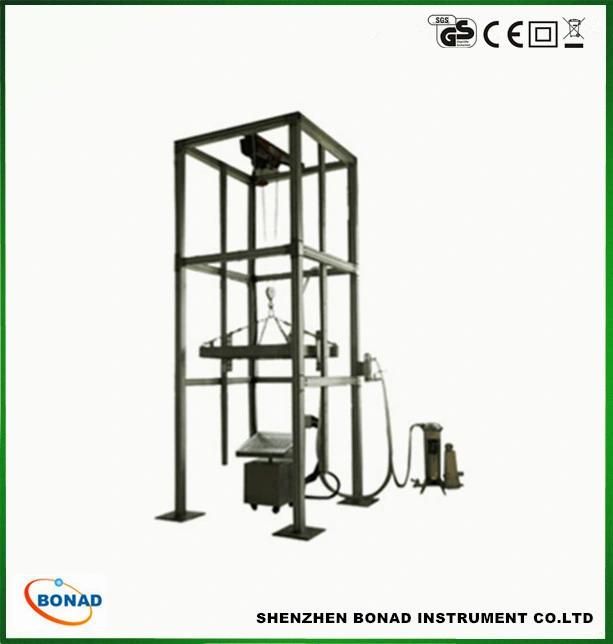

IPX1 IPX2 Drip Rain Tester




IPX1 IPX2 Drip Rain Tester

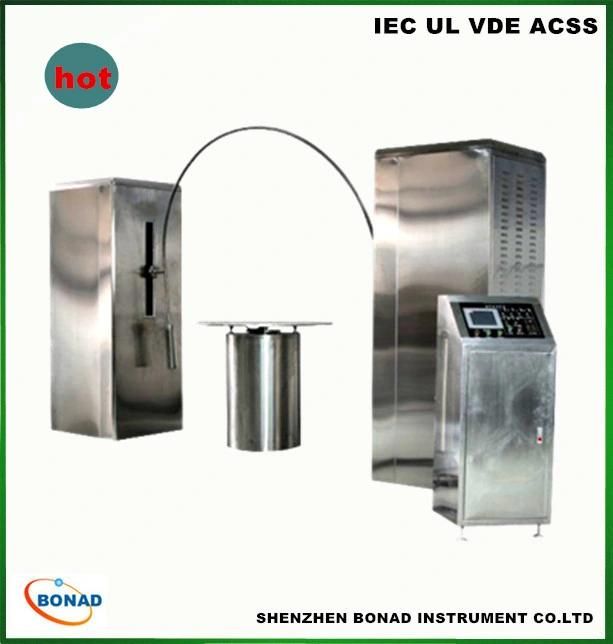

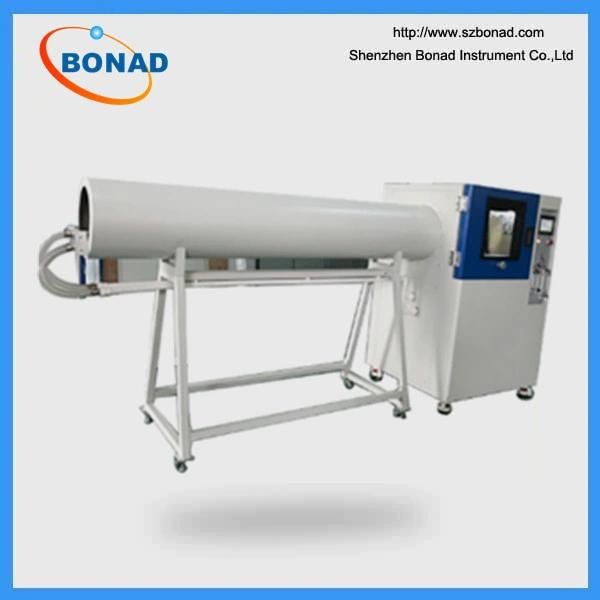

IPX34 Oscillation Tube Rain Test Equipment


IPX1/2/3/4 Waterproof Test Chamber



IPX5/6 Strong Water Jet Test Machine

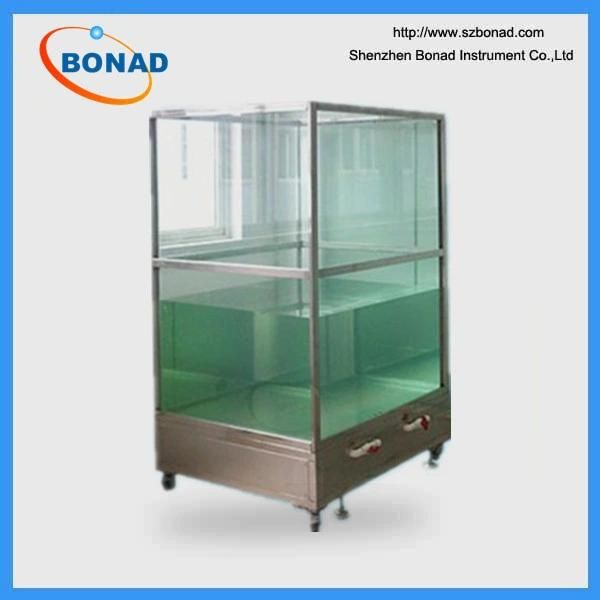

IPX7 Immersion Test Equipment

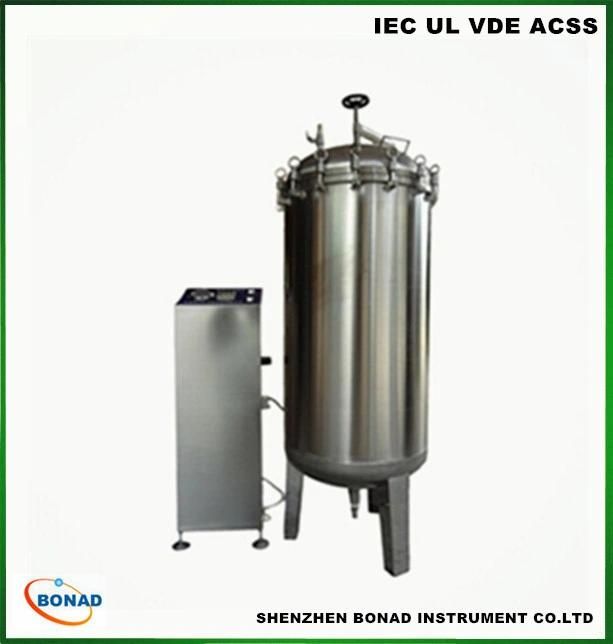

IPX8 Water Immersion Test Chamber



Item
Chamber specification	R400mm/R600mm
Chamber material	SUS304 stainless steel plate (external diameter:19mm Thickness:2mm)
Dripping aperture	0.4mm
Spray angle	120°C (IPX3 ),180°C(IPX4 )
Swing angle	120°C (IPX3 ),360°C(IPX4 )
Rainfall	0-10L/min (adjustable)
Chamber swing speed	IPX3(swing when testing,2x120 degree):4s IPX4(swing when testing,2x180 degree):12s
Testing time	0-999min
Material	Stainless steel

Note:
1.It can discharge the water inside the chamber automatically after the test.
2.T he angle between IPX3 and IPX4 is alterable if you block the nozzle in both end when testing.
3.The rotational structure of chamber is driven by servo motor drive, it is precision and accurate in time and amplitude.
