• Model NO.：BND-ZY
• Display：Needle
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Standard：IEC60695 -11-5-2004
• Brand Name：Bonad
• Transport Package：Carton Case
• Specification：1000mm* 650mm*1300mm
• Trademark：BONAD
• Origin：Shenzhen, China
• Production Capacity：100 Per Month

Basic Info.

Model NO. BND-ZY Display Needle Control Manual Control Weight 100-500Kg Power Source AC220V Standard IEC60695 -11-5-2004 Brand Name Bonad Transport Package Carton Case Specification 1000mm* 650mm*1300mm Trademark BONAD Origin Shenzhen, China Production Capacity 100 Per Month

Product Description

IEC60695-11-5: 2004 Needle-Flame Tester for Material and Solid Combustible Testing


Product Description :

IEC60695-11-5 NEEDLE FLAME TESTER

Needle-flame Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. This tester specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material's ignition risk and fire retardance by a simulation technique the fire.

This product is designed and manufactured according to IEC60695-11-5:2004(GB/T5169.5-2008) Fire hazard testing for electric and electronic products-part 2: Test methods- needle-flame test methods.

Needle-flame Tester's crust and important parts are made by Stainless Steel, Sculpt daintily, endure smoke corrupt, high automatism, high reliability of key parts of apparatus, numeric shows. Fixture could be adjusted. Test procedure could be controlled automatically which is convenience and reliable.


Detailed Images :

needle burner	the hole Φ 0.5mm ± 0.1mm, outside diameter ≤ Φ 0.9mm, length ≥ 35mm,
Material	stainless steel
burner angle	tilt 45 ° (test) or vertical (adjust the flame height)
Application time	0-999 .9 s ± 0.1s adjustable (normally choose to 30s)
Burning duration	0-999 .9 s ± 0.1s, auto record, manual suspension
flame height	12mm ± 1mm (with a height measurement apparatus)
Burn gas	95% of the butane gas (Pressure:Less than 0.2MP)
temperature measurement range	0 ~ 1000 ºC
flame temperature requirements	from 100 ºC ± 2 ºC 700 ºC ± 3 ºC rise to the time  in 23.5 seconds ± 1 seconds
Thermocouple	Φ0.5mm (K type)
experimental background	black background
test procedure	automatic control
reference standard	IEC60695 -11-5-2004, GB/T5169.5-2008
inside dimension	0.5 cubic meters, stainless steel chassis
equipment dimensions	1000mm wide × 650mm deep × 1300mm high
power supply	AC220V ± 5%, 50Hz, 0.3KVA







Company  Profile :Our  Advantages :

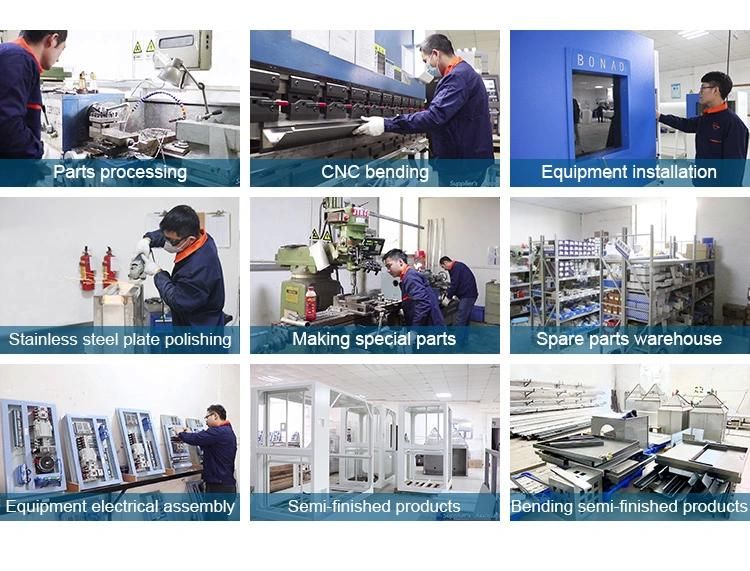

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:

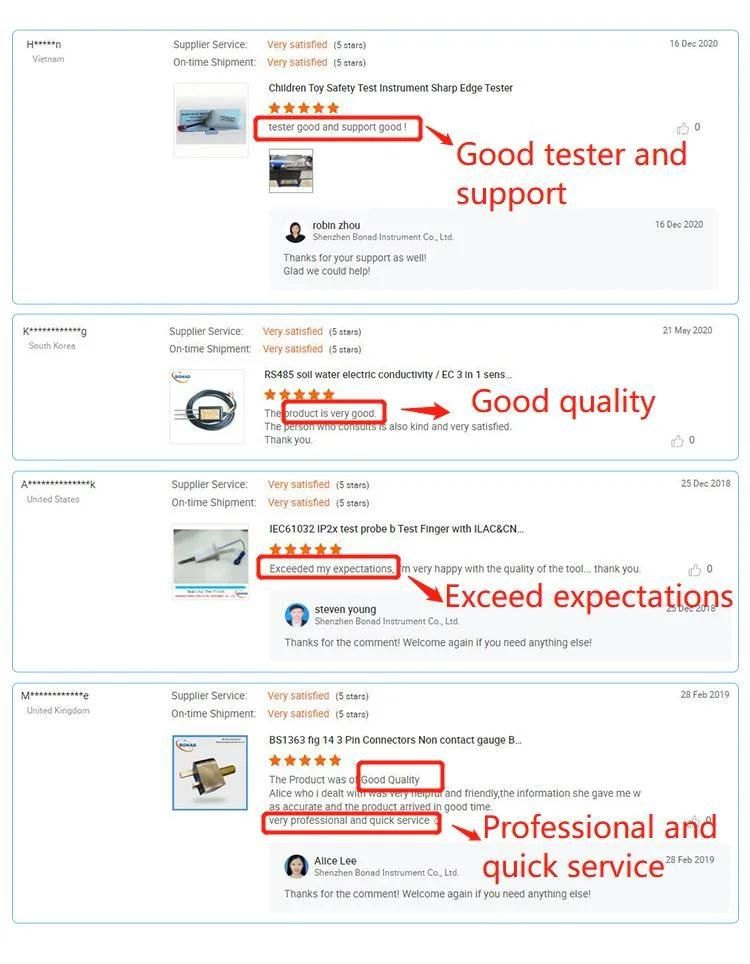

Customer  Reviews :Product  Packaging :
