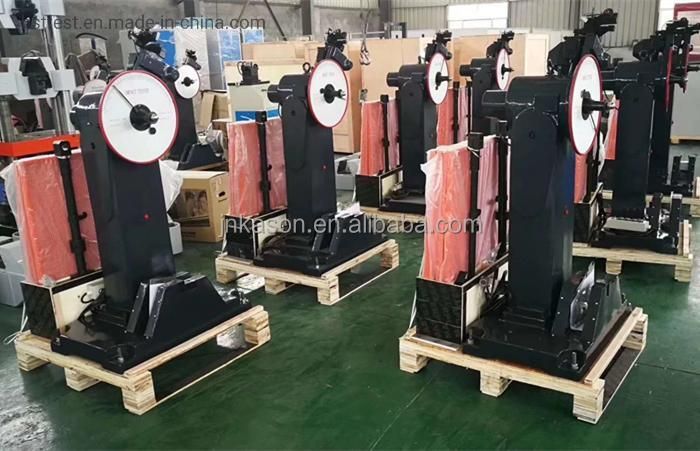

500j Computer Control Impact Testing Machine/Automatic Feeding Impact Tester (JBW-250Z/500Z)
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service:Standard
- Warranty:1 Year
- Type:Impact Testing Machine
- Maxcapacity:150,250j,500j
- Accuracy Grade:1
- Load Way:Electronic Load
Base Info
- Model NO.:JBW-250Z,500Z
- Loading Method:Static Load
- Display:Computer Display
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC220V
- Delivery Time:3 Days
- Certification:Ce ISO
- Transport Package:Standard Export Packing
- Specification:impact speed: 5.24m,s
- Trademark:HST
- Origin:China
- HS Code:9031809090
- Production Capacity:900 Sets Per Month
Description
Overview
Product ParametersJBW-500Z Display computer automatic control Min reading value 1 J 2J Impact energy 150/250J 250/500J The distance between the
pendulum shaft and impact point 750mm 800mm Impact speed 5.2m/s 5.4 m/s Pre-rising angle of the pendulum 150° Specimen bearer span 40+0.2mm Round angle of bearing jaw R1.0-1.5mm Round angle of impact blade R2.0-2.5mm,(R8mm) Thickness of impact blade 16mm Angle accuracy 0.1° Standard specimen dimension 10mm×10mm×55mm Sample box capacity 10 pcs Sample centering way Automatic face orientation Power supply 380V, 50Hz , 3 wire and 4phrases Dimensions (mm) 2124 x 600 x 1340 2200 ×650 ×1960 Net Weight (kg) 450 580 Company ProfileOur customersOur exhibationCertificationsPackaging & ShippingContact
4.Main Technical Specifications:JBW-250Z
pendulum shaft and impact point
