Hj-10 Environmental Tester IEC60068-2-1 Standard Thermal Shock Test Chamber
Dongguan Hongjin Test Instrument Co., Ltd.- After-sales Service：Lifetime Maintenance
- Power Supply：380V
- Certification：CE, ISO
- Warranty：1 Year
- Internal Dimensions：50 X 400 X 30(Customizable)
- External Dimensions：145X180X145(Customizable)
Base Info
- Model NO.：HJ-10
- Weight (Approximately)：700kg
- Heating Time (Heat Storage Area)：Rt~200 Celsius About 35min
- Cooling Time (Cold Storage Area)：Rt~-70 Celsius About 85min
- Transport Package：Fumigation-Free Standard Export Wooden Box
- Trademark：Hongjin
- Origin：China
- Production Capacity：1000 Sets, Month
Description
AC380V 50Hz/60Hz3 ∮Weight (approximately) 700Kg 900Kg l200Kg 1400Kg 1900Kg
Features of the device:
1. The product is beautiful in appearance, reasonable in structure, advanced in technology and exquisite in material selection. The air-cooled thermal shock test chamber has simple and convenient operation performance and reliable equipment performance.
2. The equipment is divided into three parts: a high temperature box, a low temperature box and a test box. It adopts a unique thermal insulation structure and heat and cold storage effect. During the test, the object to be tested is completely still, and the cold and hot temperatures are introduced into the test by switching between hot and cold air paths. Area to achieve the purpose of thermal shock test.
3. The most advanced measuring device is adopted, and the controller adopts a large-scale color LCD human-machine touch interactive LCD human-machine interface controller, which is simple to operate, easy to learn, stable and reliable, and displays the complete system operation status, execution in Chinese and English. and set the program curve.
4. With 96 test specifications independently set, the impact time is 999 hours and 59 minutes, and the cycle period can be set from 1 to 999 times. The time automatically starts and stops the work operation;

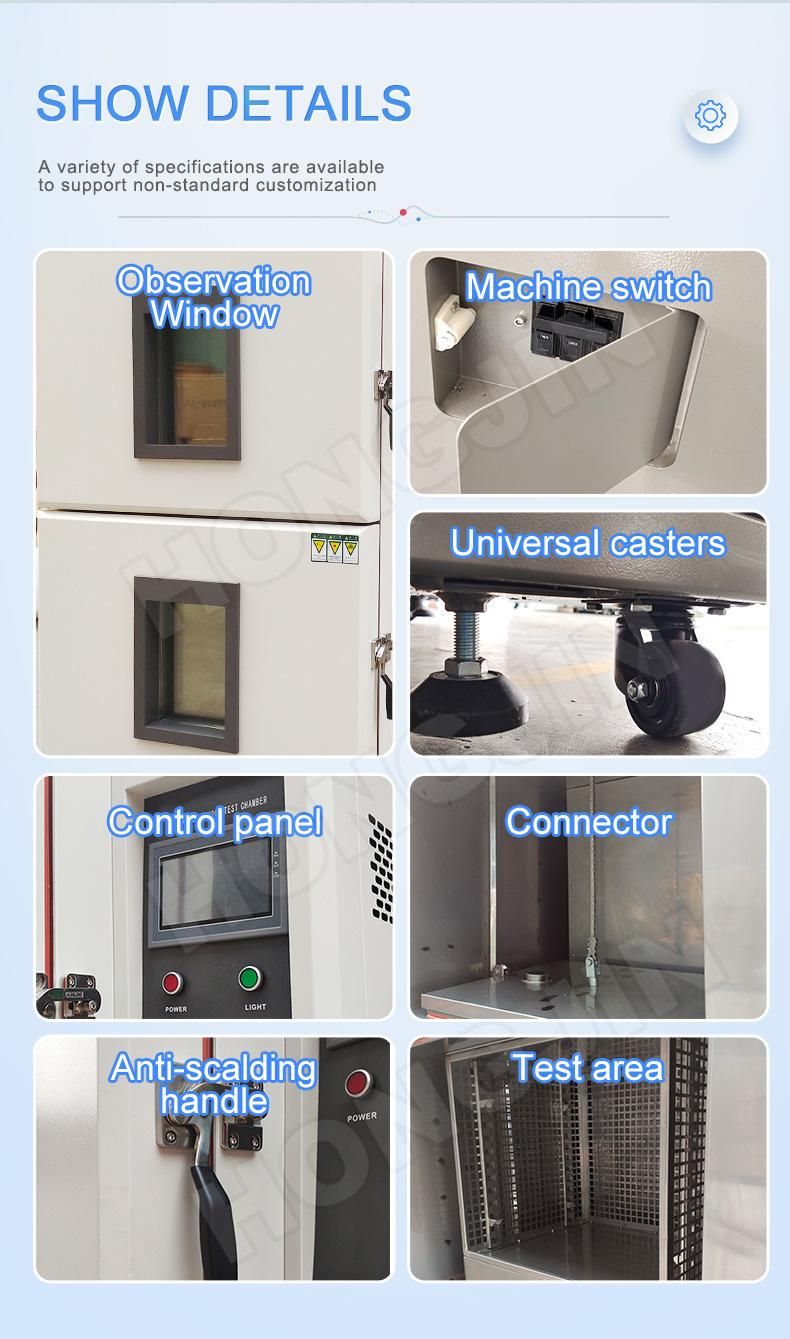

5. There is a test hole with a diameter of 50mm on the left side of the box, which can be used for external power load wiring test components.
6. The function of three different conditions of high temperature, low temperature and hot and cold shock can be independently set, and when the cold and hot shock conditions are executed, the two-slot or three-slot type and the function of cold punching and hot punching can be selected. high and low temperature testing machine
7. It can be used alone as a high temperature box or a low temperature box, one machine for three purposes.
8. Equipped with fully automatic, high-precision system circuit, any mechanical action, fully P.L.C locking processing, all using P.I.D automatic calculation control, high temperature control accuracy.
9. The advanced and scientific air circulation design makes the indoor temperature uniform and avoids any dead angle; the complete safety protection device avoids any potential safety hazards and ensures the long-term reliability of the equipment.
10. The number of cycles and defrosting times can be set for automatic (manual) defrosting.
11. The air outlet is detected and controlled by the sensor at the return air outlet. The switching time of the damper mechanism is completed within 10 seconds, and the recovery time of cold and thermal shock temperature is completed within 5 minutes.
12. Status display and curve display during operation. When abnormal conditions occur, the screen will automatically display the fault point and cause and provide troubleshooting methods. When the input power is found to be unstable, there is an emergency stop device.
13. The refrigeration system adopts the design of the cascade high-efficiency low-temperature circuit system. The refrigeration unit adopts the compressor imported from Europe and the United States, and adopts the green environmental protection (HFC) refrigerant R507, R23 with zero ozone coefficient.
14. Super safety protection functions: power overload protection, leakage protection, control circuit overload, short circuit protection, compressor protection, grounding protection, over temperature protection, alarm sound prompts, etc.
Test standards
1.GB/T2423.1-1989
2.GB/T2423.2-1989
3.GB/T2423.22-1989
4.GJB150.5-86
5.GJB360.7-87
6.GJB367.2-87 405
7.SJ/T10187-91Y73
8.SJ/T10186-91Y73
9.IEC68-2-14
10.GB/T 2424.13-2002
11.GB/T 2423.22-2002
12.QC/T17-92
13.EIA 364-32
