ND-1 Bloom Viscosity Tester Machine
Liaoyang Bright Shine Pharmaceutical Machinery Imp & Exp Co., Ltd.- Maxcapacity:<1000KN
- Accuracy Grade:1
Base Info
- Model NO.:ND-1
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control
- Weight:0-100Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Velocity Range:200-1000 Rpm
- Maximal Capacity:3000ml(Water)
- Power:220V,50Hz
- Transport Package:Export Standard Wooden Case
- Specification:Meet GMP Standard
- Trademark:BSIT
- Origin:Made in China
- HS Code:9027809000
- Production Capacity:7 Sets,Week
Description
Basic Info.
Model NO. ND-1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Velocity Range 200-1000 Rpm Maximal Capacity 3000ml(Water) Power 220V,50Hz Transport Package Export Standard Wooden Case Specification Meet GMP Standard Trademark BSIT Origin Made in China HS Code 9027809000 Production Capacity 7 Sets/WeekProduct Description

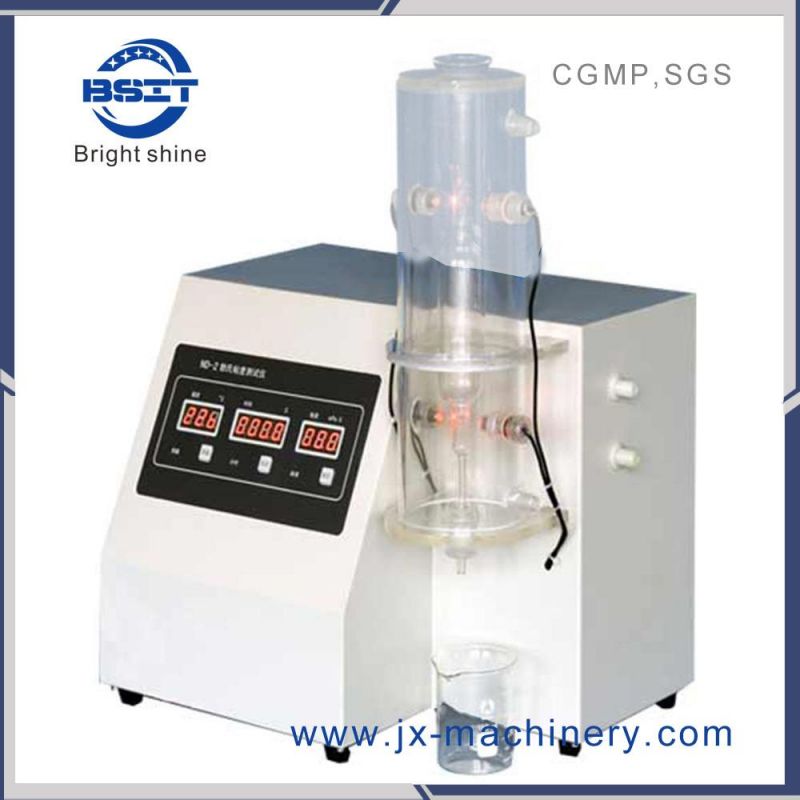

ND-1 BLOOM VISCOSITY TESTERProduct Description :
ND series of instruments are used for detecting Bloom viscosity of gelatin.
Applicable standard
National standard (Food additive Gelatin) GB6783-94
National standard(Hard gelatin capsule for medicine)GB13731-92
Vocation standard (Gelatin for medicine) QB2354-98
Corporate standard(Bloom viscosity tester) Q/12XQ0193-2010
Features:
A MPU is used to control all operations in Bloom Viscosity tester. It works in Bloom mode and the viscosity data is displayed by LED.
High temperature accuracy . Even temperature of the bath liquid.
Using capillary and precise photo-electricity transducer.
Automatically calculating time and viscosity.
Auto-timing, auto-alarming, auto-testing continually.
Auto-preset piece number, auto-test hardness, display preset and real-time data alternately in time.
Automation : auto-test, auto-diagnose, auto-alarm.
Technical Parameter :
Model | ND-1 |
Test range | (0~9.99) mPa·s |
Test accuracy | 0.05mPa·s |
Temperature control | 60.0ºC |
Temperature control accuracy | ±0.1ºC |
Time range | (0~99.9)s |
Time accuracy | ±0.1s |
Volume | 100ml |
Volume accuracy | ±0.5ml |
Recital distance | (152±2)mm |
Power | 220V/ 50Hz/ 600W |
Dimension | (400×300×510)mm3 |
