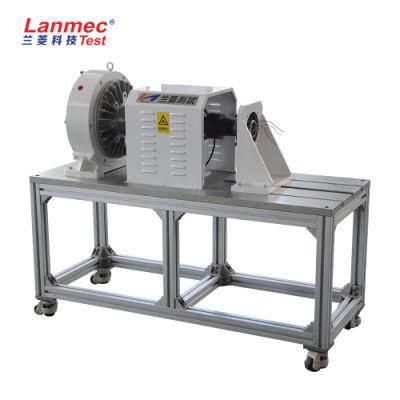

Motor Test Bench Dyno Test Hysteresis Brake Machine Test Bench

Jiangsu Lanmec Electromechanical Technology Co., Ltd.
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：>20000kg
  • Type：Motor Test Bench
  • Maxcapacity：>1000KN
  • Accuracy Grade：1
  • Load Way：Mechanical Load

Base Info

  • Model NO.：electric motor test stand
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：>2000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Rated Power：63kw
  • Rated Torque：250 N.M
  • Rated Speed：2000- 2600 Rpm
  • Max Speed：9000
  • Turning Inertia：0.18 Kgm2
  • Max Voltage：90VDC
  • Max Current：4 a
  • Cooling Water Pressure：0.1-0.3 MPa
  • Flow of Cooling Water：45 L,Min
  • Transport Package：Wooden Box
  • Specification：DW160
  • Trademark：Lanmec
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：10000 Sets , Years

Description

Eddy current brake/dynamometerRated PowerRated torqueRated speedMaximum rotational speedTurning inertiaMaximum excitation voltageMaximum excitation CurrentCooling water pressureFlow of the cooling waterDWZ/DW-0.750.7552000-2600160000.0028030.1~0.31DWZ/DW-33102000-2600140000.0038030.1~0.32DWZ/DW-66252000-2600140000.0038030.1~0.33DWZ/DW-1010502000-2600130000.018030.1~0.34.5DWZ/DW-1616702000-2600130000.02803.50.1~0.36.5DWZ/DW-25251202000-2600110000.05803.50.1~0.315DWZ/DW-40401602000-2600100000.19040.1~0.325DWZ/DW-63632502000-260090000.189040.1~0.345DWZ/DW-1001004002000-260085000.3212040.1~0.360DWZ/DW-1601606002000-260080000.5212050.1~0.3100DWZ/DW-25025011002000-260070001.815050.2~0.4180DWZ/DW-30030016002000-260060002.715050.2~0.4210DWZ/DW-40040022002000-260050003.6180100.2~0.4300DWZ/DW-63063036002000-260050005.3180100.2~0.4450
Related Products

Motor Test Bench Dyno Test Hysteresis Brake Machine Test Bench



Main application:

DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.

DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.

CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.


Motor Test Bench Dyno Test Hysteresis Brake Machine Test Bench

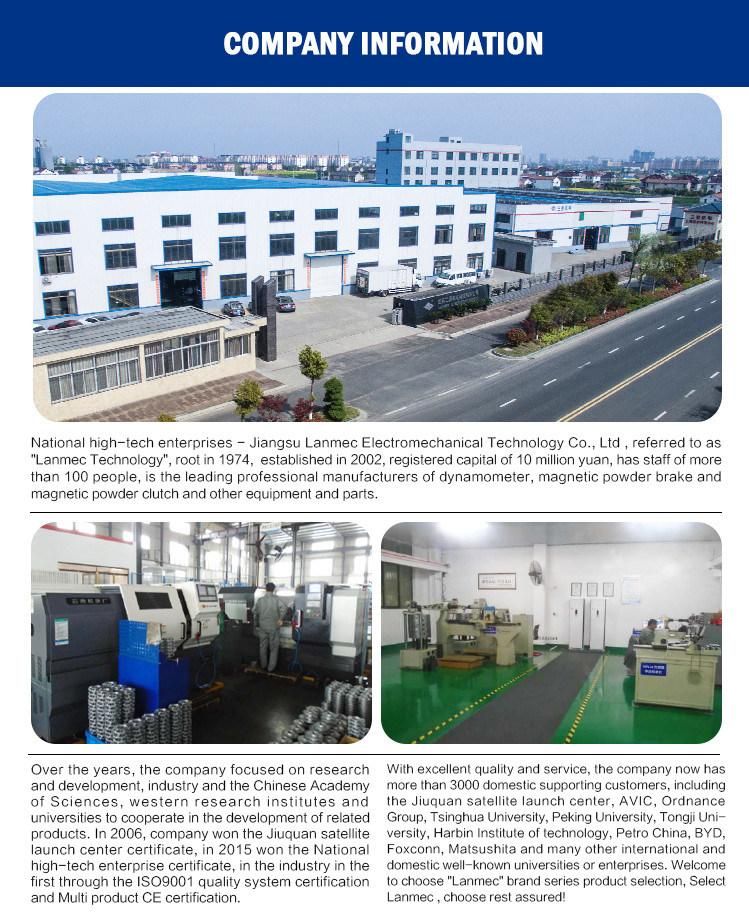

Company Information:

Motor Test Bench Dyno Test Hysteresis Brake Machine Test Bench

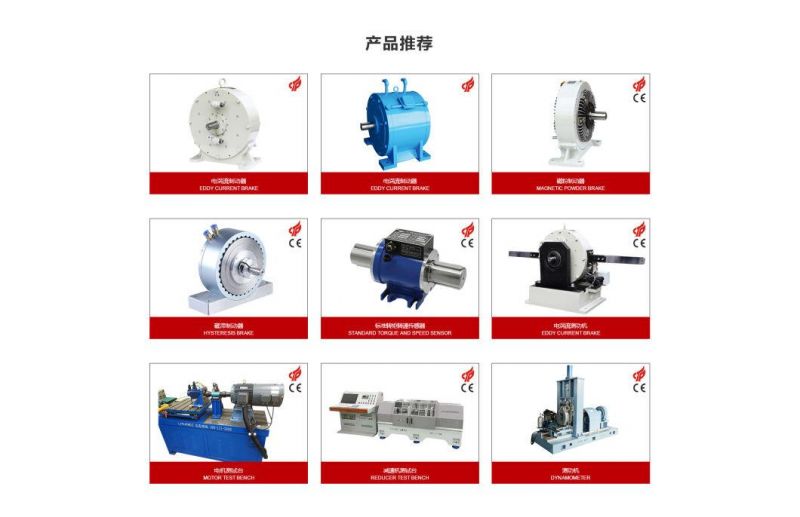

Product Line:

Motor Test Bench Dyno Test Hysteresis Brake Machine Test Bench

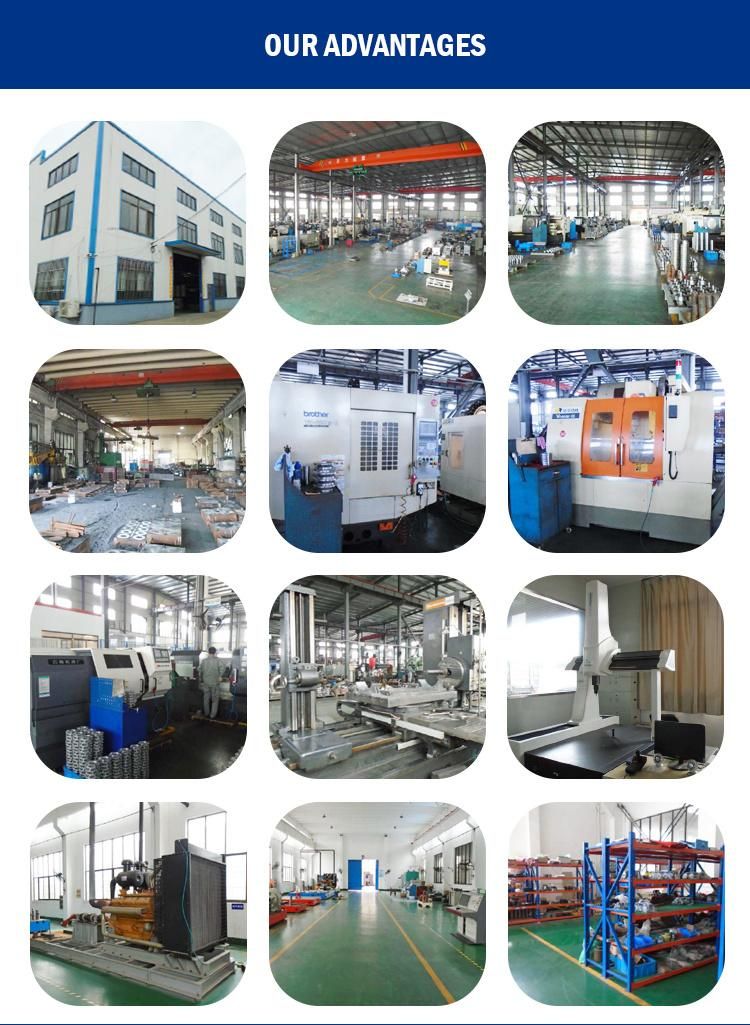

Advantages:
