• Model NO.：YT-ACM
• Product Name：Automatic Colorimeter
• Power Supply：AC (100~240) V (50,60) Hz 50W
• Print ：Built-in Thermal Printer
• Communication Interface：RS232
• Dimension：380(L)×260(W)×410(H) mm
• Net Weight：12.5kg
• Pacakage：Ply-Wooden Cases, Inner Plastic Films Wrapped
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9031499090

Basic Info.

Model NO. YT-ACM Product Name Automatic Colorimeter Power Supply AC (100~240) V (50/60) Hz 50W Print  Built-in Thermal Printer  Communication Interface RS232 Dimension 380(L)×260(W)×410(H) mm Net Weight 12.5kg Pacakage Ply-Wooden Cases, Inner Plastic Films Wrapped Transport Package Wooden Box Trademark YANTE Origin Hangzhou, China HS Code 9031499090

Product Description

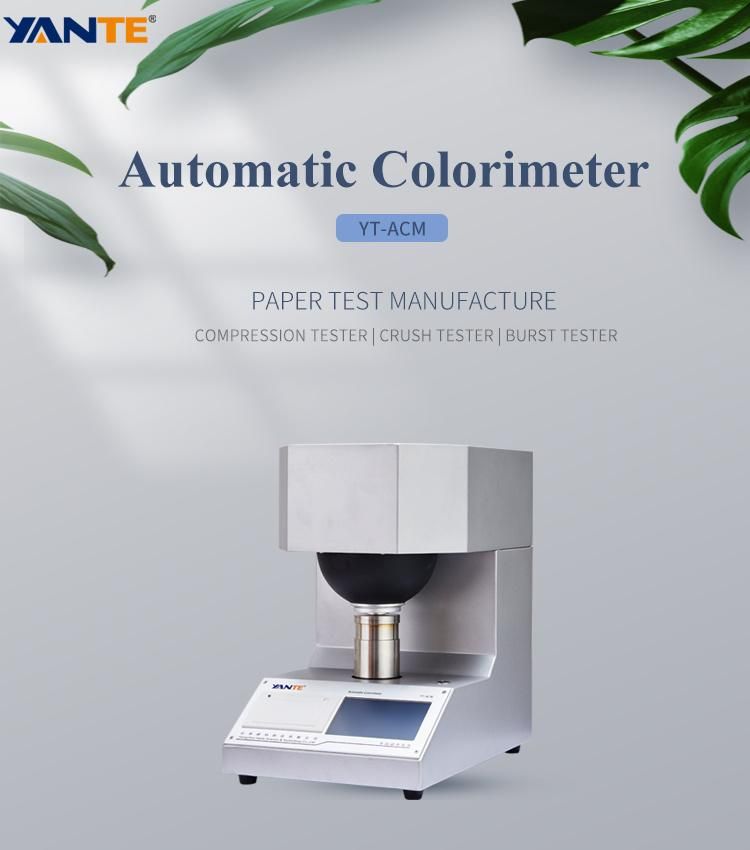

Automatic Colorimeter is a detection instrument for measuring the color, chromatic aberration and whiteness of objects based on the principle of light reflection.

Product Function

Measure the color and chromatic aberration reflected by the object
Measure D65 brightness (R457 blue light whiteness)
Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)
Measure CIE whiteness (Gantz whiteness W10 and color cast value TW10)
Measure the whiteness of ceramics, building materials and non-metallic mineral products
Measure Hunter System Lab and Hunter (Lab) whiteness
Measure yellowness, ink absorption value
Measure the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample

Application Range

Paper, cardboard, pulp, ceramics; Cement, starch, calcium carbonate, talc and other powders.


Product Features

Advanced mechatronics design, truly realize one-key testing of whiteness and chroma
ARM processor improves the response speed of the instrument, and calculates data more accurately and quickly
The reference sample can be in kind or data. The instrument can store and memorize up to ten reference sample information
Can store 10 reference samples and have power-off protection, calibration data will not be lost after power-off
Standard RS232 interface, with computer software for communication (Purchased separately)



Supporting Accessories And Consumable


NO.	Name	Model	Picture	Standard	Optional
1	Flating Powder Holder	YT-QY			√
2	Fiber Sample Holder				√

Executive Standard

GB/T 7973,GB/T 7974,GB/T 7975,GB/T 8940.2,GB/T 1840,GB/T 13025,GB/T5950
GB/T 9338,GB/T 4739,GB/T 1543,GB/T 10339,GB/T 12911,ISO 2470,,ISO 2471


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz,50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	480X272 dot matrix 5 inch color touch screen
4	Light source	Analog D65
5	Integrating sphere	Diameter 150mm
6	Sample Size	Test plate diameter ≥φ30mm while sample thickness≤40mm
7	Indication Accuracy	Chromaticity Coordinate 0.0001,others 0.01
8	Zero Drift	≤0.1
9	Indicating Drift	≤0.5
10	Repetitive Accuracy	≤0.02(10 consecutive tests at intervals of 10 seconds)
11	Specular Reflectance Accuracy	≤0.1
12	Print	Built-in thermal printer
13	Communication Interface	RS232(optional)
14	Dimension	385×280×410 mm
15	Net Weight	12.5kg
