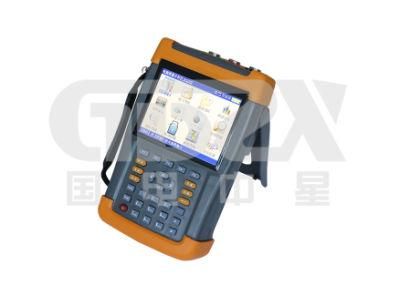

Handheld Power Analyzer Power Meter
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Voltage measurement range：0-800V, automatic gear cut
- Phase angle measurement range：0 -359.99 degree
- Frequency measurement range：45-55Hz
- Number of voltage channels：Three channels (UA, UB, UC)
Base Info
- Model NO.：ZXDN-3600
- Number of current channels：Three channels (IA, IB, IC)
- Maximum harmonic analysis times：63 times
- Charging power supply：AC220V, frequency 45Hz-55Hz
- Maximum working time of battery：Less than or equal to 10 hours
- Working temperature：-10 centigrade -+ 40 centigrade
- Volume：320 *240 *130mm
- Weight：2.0Kg
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Voltage measuring range: 0~800V, Auto shifting range

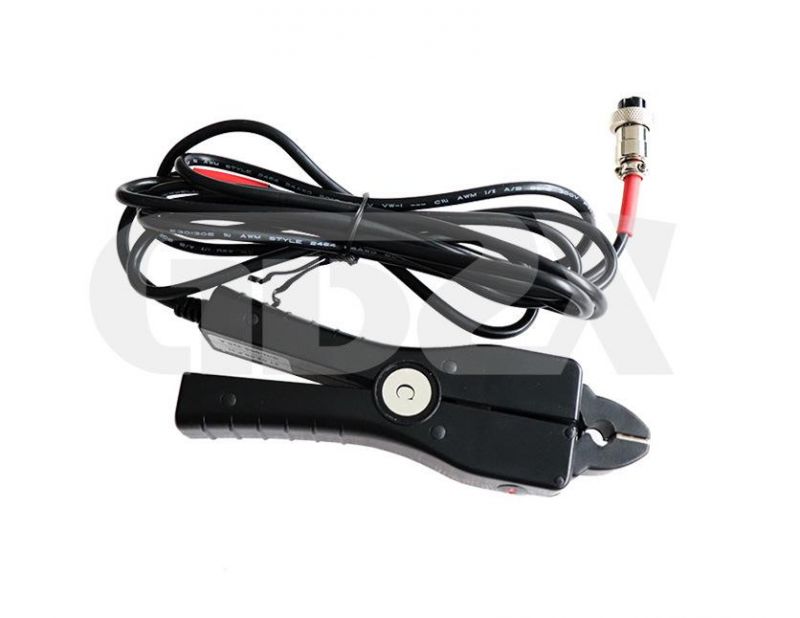

Clamp/split transformers (three kinds): 5A/25A(default)
100A/500A(optional)
400A/2000A (optional)
Phase angle measuring range: 0~359.99°
Frequency measurement range: 45~55Hz
Voltage channels: Three-channel (UA,UB,UC)
Current channels: Three-channel (IA,IB,IC)
Maximum harmonic analysis times: 63th order
Maximum continuous storage period by 1 minute interval: 18 Months
Voltage:±0.2%
Frequency:±0.01Hz
Current/power:±0.5%
phase:±0.2°
Fundamental voltage allowed error≤0.5%F.S.
Fundamental current allowed error: ≤1%F.S.
Phase error between voltage and current: ≤0.2°
Voltage harmonic content measurement error:≤0.1%
Current harmonic content measurement error:≤0.2%
Three-phase voltage unbalance error:≤0.2%
Voltage deviation error:≤0.2%
Voltage fluctuation error:≤0.2%
Working temperature: -10 ºC ~ + 40 ºC

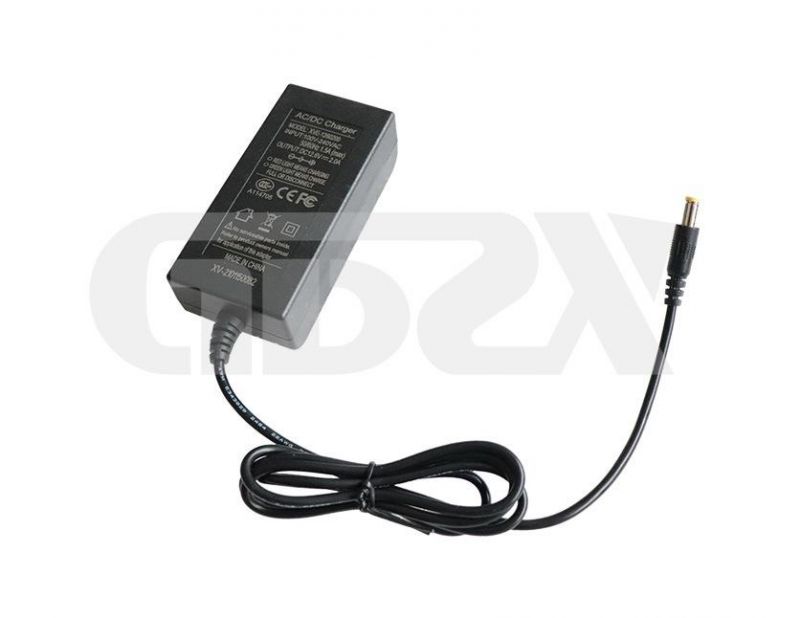

Power supply: AC220V 45Hz-55Hz
Power consumption: ≤3VA
Battery longest working time: ≤10 hours
dielectric strength
1)the insulating resistance of voltage current input terminal to case≥100MΩ
2)the input terminal of the working power can stand 1.5kV (RMS) to case, time is 1 minute
Size: 320×240×130mm
Weight: 2KG

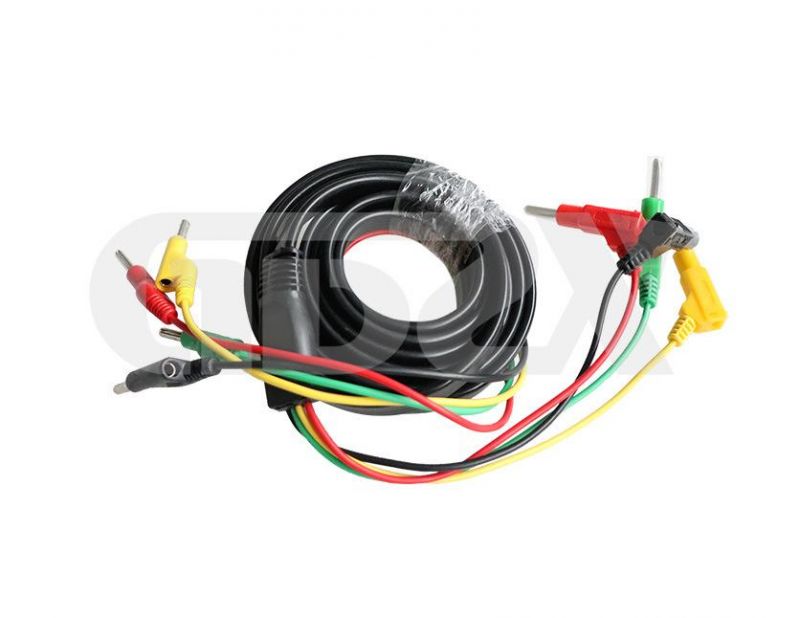

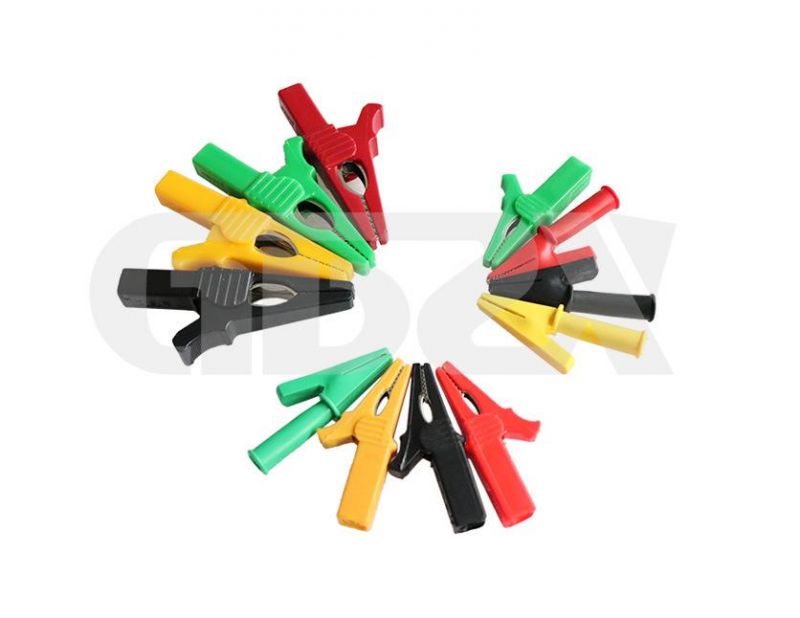

Product pictures
